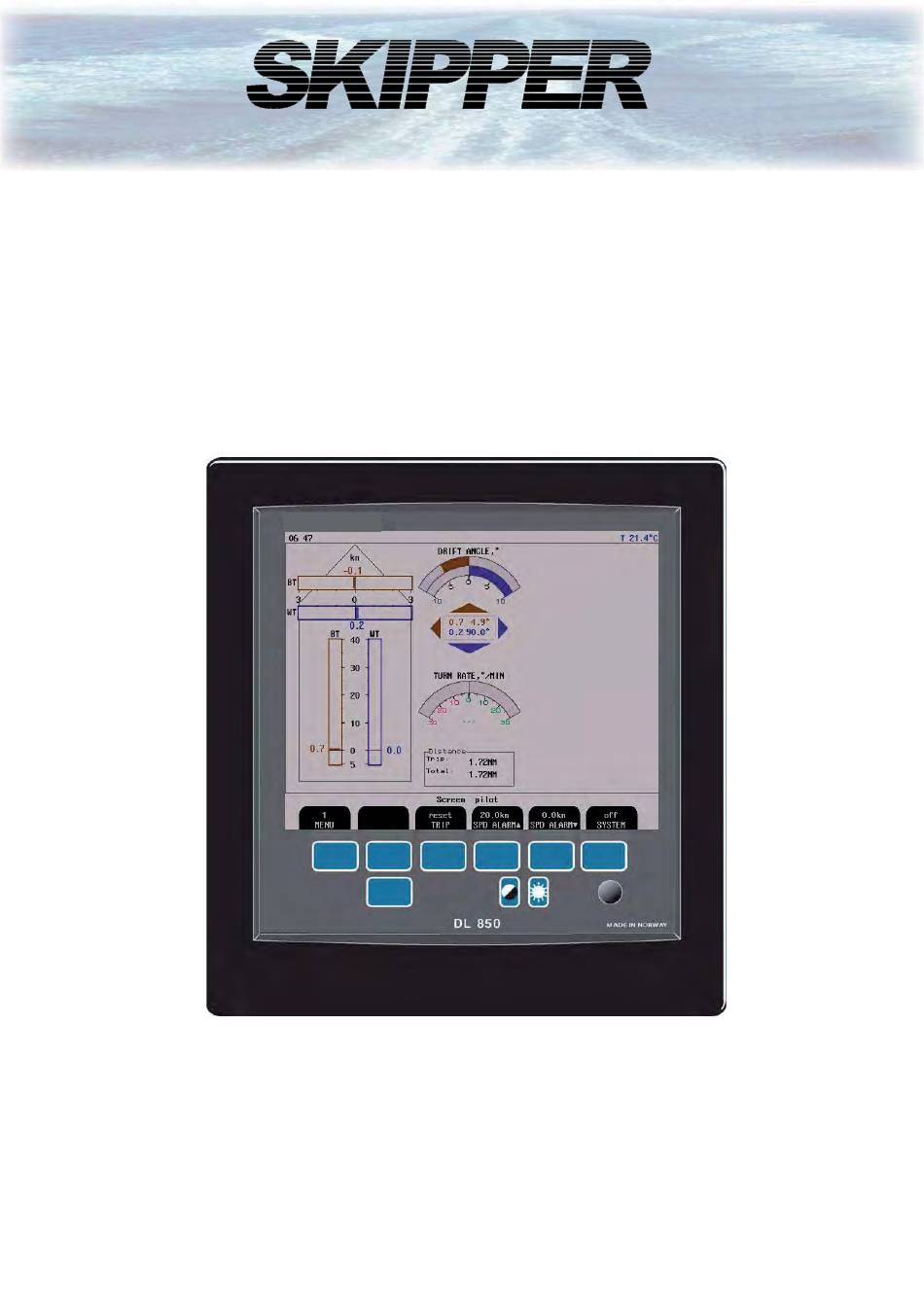

2 Axis Doppler Speed Log
Operation and Installation Manual
SKIPPER Electronics AS
Enebakkveien 150
P. O. Box 151, Manglerud
0612 Oslo, Norway
www.skipper.no
DL850 (270 kHz)
Telephone:
+47 23 30 22 70
Telefax:
+47 23 30 22 71
E-mail:
support@skipper.no
Co. reg. no:
NO-965378847-MVA
Document no: DM-D002-SC Rev 4.03.00A
Edition: 20110624
