RFID Installation Instructions
Preparing the door and door frame (continued)
3. The mortise plate has an adjustable bevel. Align the mortise front plate with the bevel of the door
edge and tighten the two bevel adjustment screws at the top and bottom of the mortise case. Position
the mortise case in the door edge with the motor wire routed through the notch (see Fig. 1).
Note: Use care to ensure that the wires do not get
pinched or pulled as the mortise is inserted into the
pocket.
4. Attach the mortise front plate to the door using the two
mortise screws (12 x 1-1/4 screws for wood doors,
12-24 x 3/8 screws for metal doors). Be sure that the
screws are fully tightened.
Important: DO NOT leave the screws loose. The screws
must be fully tightened before the trim is installed. If you
must leave the mortise loose to install the trim, the door
preparation is incorrect.
5. Install the scalp plate with the 8-32 x 1/4 screws
provided and test for proper mechanical latch
engagement into the strike plate.
© SAFLOK™
INS_QTMADESERFID
Mortise Front Plate
Mortise
Screws
Pg. 3 of 8

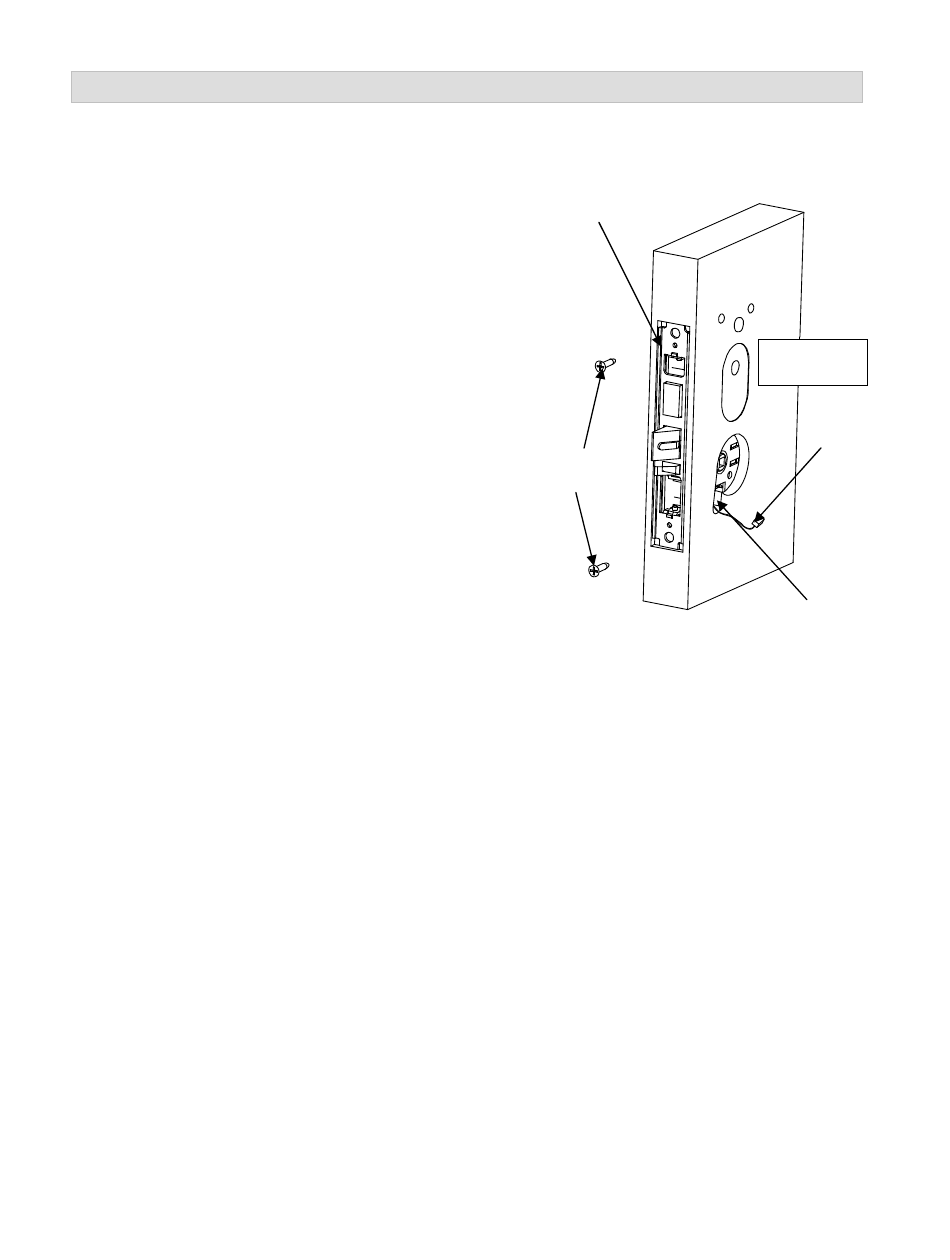

Fig. 1
Inside Door
Surface
Motor
Wire
Notch for routing
the motor wire
(inside only)
2/16/2012
