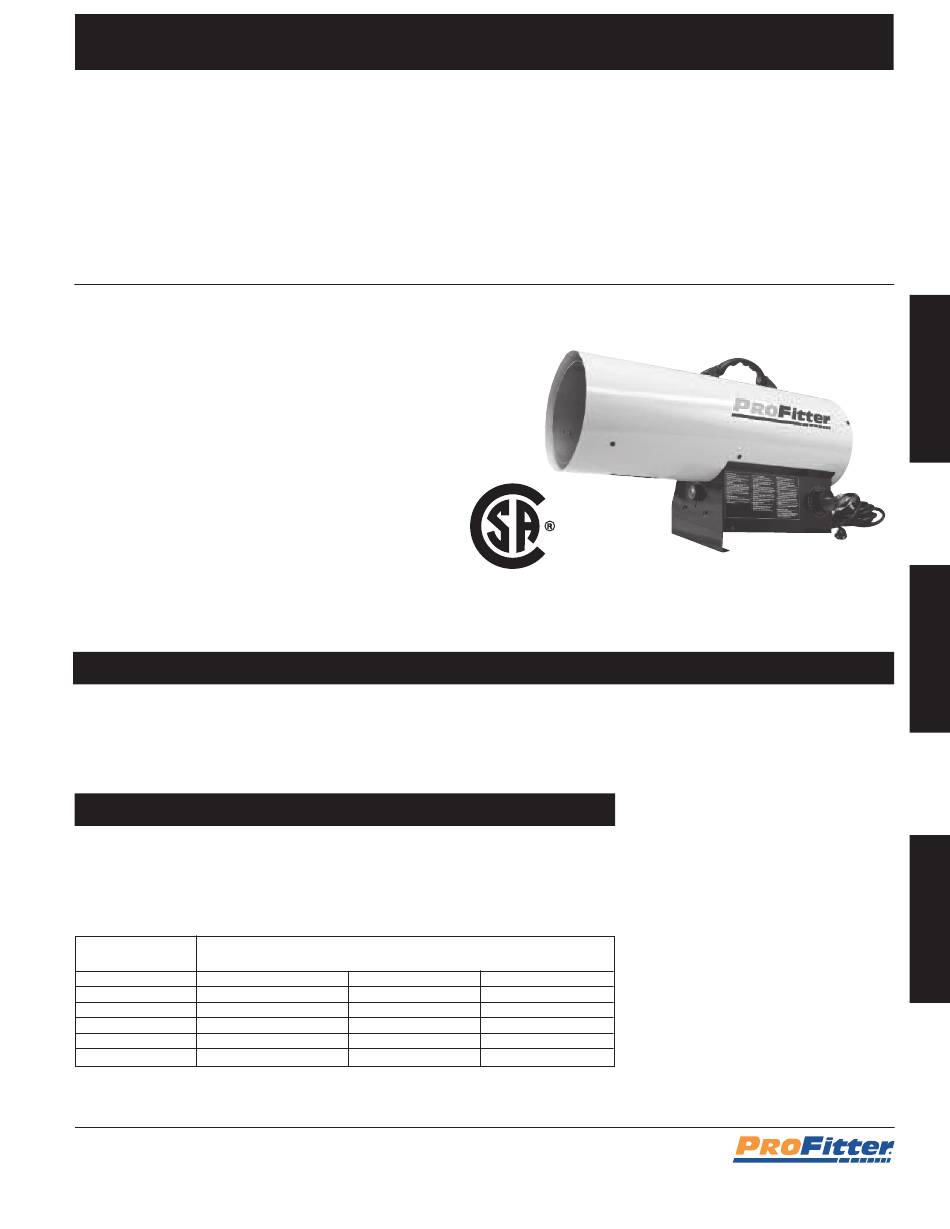

ProFitter LPFA40PF Operating Instructions & Parts Manual

Operating Instructions & Parts Manual
LPFA40PF, RMC-FA60PF, RMC-FA125PF, and RMC-FA150PF
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
ProFitter
Construction Heater

Description

ProFitter Models LPFA40PF, RMC-FA60PF, RMC-
TM
FA125PF, and RMC-FA150PF heaters are 30,000 to
150,000 BTU/Hr construction heaters. These heaters
use propane gas for combustion,
and electricity to run the fan.
It is primarily intended for temporary heating of well
ventilated buildings under construction, alteration or
repair.
Unpacking
1. Remove all packing items applied to heater for
shipment. Keep plastic cover caps attached to inlet
connector and hose/regulator assembly for storage.
2. Remove all items from carton.
3. Check all items for shipping damage. If heater
is damaged, promptly inform dealer where you
purchased the heater.

Specifications

GENERAL SPECIFICATIONS
Type of
Model Gas Input Rating
LPFA40PF Propane 40,000 BTU/Hr
RMC-FA60PF Propane 30,000 to 60,000 BTU/Hr
RMC-FA125PF Propane 70,000 to 125,000 BTU/Hr 5 PSIG
RMC-FA150PF Propane 120,000 to 150,000 BTU/Hr 5 PSIG
ELECTRICAL SPECIFICATIONS AND CAPACITY OF PROPANE GAS CYLINDERS
Electrical
Model Input
LPFA40PF 120 V, 60 Hz
RMC-FA60PF 120 V, 60 Hz
RMC-FA125PF 120 V, 60 Hz
RMC-FA150PF 120 V, 60 Hz
AND CAPACITY OF PROPANE GAS CYLINDERS
Temperature
at Tank 40,000-60,000 BTU/Hr
32ºF (0ºC)
20ºF (-7ºC)
10ºF (-12ºC)
0ºF (-18ºC)
-10ºF (-23ºC)
-20ºF (-29ºC)
Chart above shows number of 100 pound tanks needed to operate heaters at a given temperature.
Less gas is vaporized at lower temperatures. You may need two or more 100 pound tanks, or one
larger tank in colder weather. Your local propane gas dealer will help you select the proper supply
system.
Propane
TM
ANS Z83.7-2017 CSA 2.14-2017
Minimum Manifold
Pressure Pressure
5 PSIG 11" W.C.
5 PSIG 11" W.C.
11" W.C.
11" W.C.
Amperage Fan RPM Ignition
.68 3550 Piezo/Manual Spark 0.16" (4.1 mm)
.65 3570 Continuous Spark
.70 3580 Continuous Spark
.70 3580 Continuous Spark
Number of Tanks Needed
125,000 BTU/Hr
1 2
1 2
1 3
1 3
2 Use Larger Tank
2 Use Larger Tank
Printed in China
C US
CONSTRUCTION HEATER
Gas
Consumption
1.9 lbs/hr 0.86 kg/hr
1.4 - 2.8 lbs/hr 0.63 - 1.27 kg/hr 19.3 x 8.3 x 13.5 (46 x 20.6 x 34.2 cm)
3.3 - 5.8 lbs/hr 1.5 - 2.09 kg/hr
5.6 - 7.0 lbs/hr 2.54 - 3.18 lb/hr 25.6 x 12.7 x 15 (63.5 x 22.9 x 38.1 cm)
Spark
0.16" (4.1 mm)
0.16" (4.1 mm)
0.11" (2.8 mm
150,000 BTU/Hr
2
2
3
3
Use Larger Tank
Use Larger Tank
Size
L x W x H (Inches)
19.3 x 8.3 x 13.5 (46 x 20.6 x 34.2 cm)
25.6 x 12.7 x 15 (63.5 x 22.9 x 38.1 cm)

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . 1
Specifications. . . . . . . . . . . . . . . . . . . . . 1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . .2
Product Features . . . . . . . . . . . . . . . . . . .2
General Safety Information . . . . . . . . 2-3
Operation . . . . . . . . . . . . . . . . . . . . . . 3-4
Refilling the Propane Gas Tank . . . . . .3
Leak Checking and
Locating the Heater . . . . . . . . . . . . . . 4
Lighting and Shutdown Instructions . . 4
Test Firing Heater . . . . . . . . . . . . . . . . 4
Wiring Diagrams . . . . . . . . . . . . . . . . . 5-6
Repair Parts List. . . . . . . . . . . . . . . . . . . .8
Repair Parts Illustration . . . . . . . . . . . . .9
Troubleshooting Chart . . . . . . . . . . . . .10
Warranty . . . . . . . . . . . . . . . . . . . . . . . .10
