ProFitter RMC-FA300PF Operating Instructions & Parts Manual

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and
others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for
future reference.
ProFitter
Propane Construction Heater
Description
ProFitter Model RMC-FA300PF heaters are 300,000 BTU/Hr construction heaters.
TM
This heater uses propane gas for combustion, and electricity to run the fan. It
is primarily intended for temporary heating of well-ventilated buildings under
construction, alteration or repair. This heater should be utilized in sheltered, well-
ventilated areas, but never in occupied dwellings.

Specifications

Electrical Specifications

Model Electrical Input
RMC-FA300PF 120 V, 60 Hz

General Specifications

Output Rating
Model BTU/Hr
RMC-FA300PF 300,000
Hot Air Output
Model Approx. (CFM)
RMC-FA300PF 0.085 HP

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . .1
Specifications. . . . . . . . . . . . . . . . . . . . . .1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . 1

General Safety Information . . . . . . . . 1-3

Theory of Operation. . . . . . . . . . . . . . . .3
Installation. . . . . . . . . . . . . . . . . . . . . . 3-5
Ventilation. . . . . . . . . . . . . . . . . . . . . . . .5
Operation . . . . . . . . . . . . . . . . . . . . . . . .6
Maintenance . . . . . . . . . . . . . . . . . . . . 5-6
Storage . . . . . . . . . . . . . . . . . . . . . . . . . .6
Wiring Diagram. . . . . . . . . . . . . . . . . . . .6
Repair Parts Illustration
and Parts List . . . . . . . . . . . . . . . . . . . . 8-9
Troubleshooting Chart . . . . . . . . . . . . .10
Warranty . . . . . . . . . . . . . . . . . . . . . . . .10
Unpacking
1. Unpack all materials used to protect
the heater inside of carton. Retain
plastic caps attached to exposed
fittings for use during storage.
TM
Amperage
C
0.65
ANS Z83.7-2017 CSA 2.14-2017
CONSTRUCTION HEATER
Maximum Fuel
Fuel Consumption
Propane Vapor Only 13.9 lb/h
(6.3 kg/h)
Minimum Supply
Motor Pressure to Regulator
25 PSIG (For purposes
1,720 RPM of input adjustment)
Page 2. Remove heater, accessories and all
hardware from carton.
3. Inspect all items for damage that may
have occurred during shipment.
COMPLY WITH THE PRECAUTIONS AND
INSTRUCTIONS PROVIDED WITH THIS
HEATER, CAN RESULT IN DEATH, SERIOUS
BODILY INJURY AND PROPERTY LOSS,
OR DAMAGE FROM THE HZARARDS OF
FIRE, EXPLOSION, BURN. ASPHYXIATION,
CARBON MONOXIDE POISONING, AND/
OR ELECTRIC SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND
AND FOLLOW THE INSTRUCTIONS
SHOULD USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER
INFORMATION SUCH AS AN INSTRUCTION
MANUAL, LABELS, ETCETERA, CONTACT
THE MANUFACTURER.
General Safety Information
IMPORTANT: Be sure to read and
understand all cautions and warnings,
Printed in China
US
Ignition
Direct Spark, Interrupted
Maximum Supply
Pressure to Regulator
Max Bottle Pressure
before operating this heater. Keep
this instruction manual for future
reference, and use it as a guide to safe
and proper operation of the heater.
Various precautions appear throughout
this manual. Please review and pay
close attention to them. Below is an
GENERAL HAZARD
WARNING explanation of the various levels of
FAILURE TO
caution required while operating this
heater.
which, if not avoided, WILL result in death
or serious injury.
which, if not avoided, COULD result in
death or serious injury.
which, if not avoided, MAY result in minor
or moderate injury.
EXPLOSION HAZARD, KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING
RMC-FA300PF

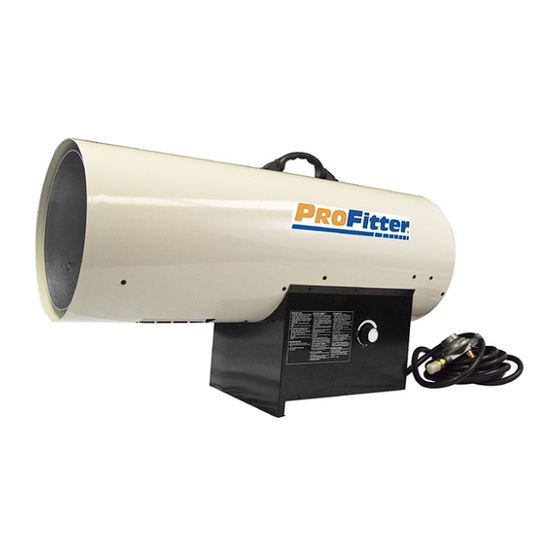

Figure 1 - Model RMC-FA300PF
Regulator
Outlet Pressure
7-10 PSIG
Size
L x W x H (Inches) 3VE59C
33.7 x 12.6 x 20.5
(85.6 x 32 x 52.1 cm)
DANGER Indicates an im minen tly
hazardous situation
WARNING
Indicates a poten tially
hazardous situation
CAUTION Indicates a poten tially
hazardous situa tion
