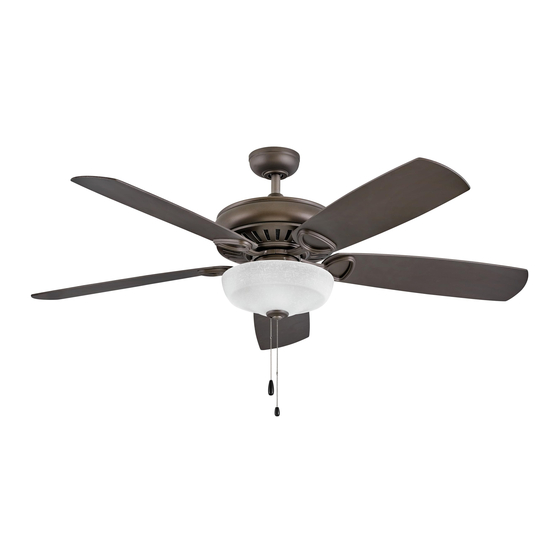

- Page 1 60" GLADIATOR ILLUMINATED ™ INDOOR LED FAN DC MOTOR CEILING FAN OWNERS MANUAL...
- Page 2 SO WE’RE HERE IF YOU HAVE A QUESTION, NEED SOME HELP OR WANT TO CHAT ABOUT OUR PRODUCTS. SEND SUGGESTIONS OUR WAY TOO—WE’RE ALWAYS LOOKING TO MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE. > SERVICE@HINKLEY.COM > 800.HINKLEY > LET’S SEE THAT HINKLEY STYLE @HINKLEY...
-
Page 3: Table Of Contents
ENERGY GUIDE INSTALLING THE FAN WITH A DOWNROD CONFIGURATION SPECIFICATIONS ELECTRICAL CONNECTIONS SMART BY BOND FINISHING THE INSTALLATION WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout. ©2019 Hinkley Lighting, Inc. | hinkley.com |... -
Page 4: Instructions
The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that, under normal conditions, further lubrication should not be necessary for the life of the fan. To operate the reverse function on this fan, press the reverse button while the fan is running. | hinkley.com... -
Page 5: Important Safety Precautions
These factors must be supplied by the person(s) installing, caring for and operating the unit. TOOLS & MATERIALS REQUIRED • PHILLIPS SCREWDRIVER • FLAT SCREWDRIVER • WRENCH OR PLIERS • WIRE CUTTER • STEPLADDER • WIRING SUPPLIES AS REQUIRED BY ELECTRICAL CODE ©2019 Hinkley Lighting, Inc. | hinkley.com |... -
Page 6: Unpacking Your Fan
Pull Chain with Fob, Bracket Mounting Hardware (wood screws, screws, lock washers, washers, wire nuts), Blade to Blade Arm Screws and Fiber Wshers, Balance Kit NOTE: Design of parts shown above may look slightly different for your specific model of fan. | hinkley.com... -
Page 7: Preparation
35 pounds. Attach hanging bracket to outlet box using screws provided with the outlet box. Flat Washer Spring Washer Outlet Box Screw Fig. 1 ©2019 Hinkley Lighting, Inc. | hinkley.com |... -
Page 8: Installing The Fan With A Downrod Configuration
Tighten security screws against downrod using a large flat Hook-up (3) Wires blade screwdriver to ensure a tight fit against downrod. Tighten nuts against mounting collar. Downrod Security Screws Mounting Collar Downrod Pin Cotter Pin Top of Fan Body Fig. 2 | hinkley.com... - Page 9 (Fig. 4) Yoke cover Make wire connections, (refer to section titled "Electrical Connections"). Slide canopy up and fasten to hanger bracket with 4 screws provided. Top of Fan Body Fig. 3 Registration slot Fig. 4 ©2019 Hinkley Lighting, Inc. | hinkley.com...
-
Page 10: Electrical Connections
Connect the neutral fan (white) wire to the white neutral household wire (Figure 1). After all splices are made, check to make sure there are no loose strands. As an additional precaution we suggest to secure the plastic wire connectors to the wires with electrical tape. Fig. 1 | hinkley.com... -
Page 11: Finishing The Installation
Make sure the hook on the hanging bracket properly sits in the groove in the hanger ball before attaching the canopy to the bracket by turning the housing until it drops into place. ©2019 Hinkley Lighting, Inc. | hinkley.com |... -
Page 12: Blade Attachment
Use a large flat blade screwdriver for final tightening to fully compress the washers. This will help ensure proper alignment of the blades and noise-free, wobble-free running. Blades Assembly Screws Fig. 2 | hinkley.com... -
Page 13: Installing The Light Kit
Install the light kit assembly to the mounting plate with three holes. Secure by tightening the 2 screws previously loosened screws previously removed. and the one previously removed. (Figure 1) ©2019 Hinkley Lighting, Inc. | hinkley.com |... -
Page 14: Installing The Glass Shade
. Feed the pull chain from the light kit stem through the decorative nut , and then thread the decorative nut on securely. Do not overtighten. Pull chain Glass shade Glass cap Decorative nut Fig. 1 | hinkley.com... -
Page 15: Operation
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 4. This allows you to set your heating unit on a cooler setting without affecting your comfort. WINTER MODE SUMMER MODE (CLOCKWISE DIRECTION) (COUNTERCLOCKWISE DIRECTION) Fig. 3 Fig. 4 ©2019 Hinkley Lighting, Inc. | hinkley.com |... -
Page 16: Care And Cleaning
6. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable. WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES. | hinkley.com... -
Page 17: Energy Guide
SMART BY BOND HINKLEY SMART FAN OPTIONS: In addition to the included wall control, you can control your Hinkley fan through the Bond app. • To use the app, download it for free from the App Store or Google Play. - Page 18 HINKLEY IS PROUD TO PROVIDE YOU WITH CEILING FAN PRODUCTS THAT ENHANCE YOUR SPACE WITH COMFORT, PURPOSE AND STYLE. AS A FAMILY COMPANY, WE ARE COMMITTED TO DESIGN, PERFORMANCE AND QUALITY, AND WHAT’S IMPORTANT TO YOU IS PARAMOUNT TO US.
- Page 19 GLOBAL HEADQUARTERS 33000 Pin Oak Parkway | Avon Lake, Ohio 44012 T (440) 653 5500 | F (440) 653 5555 | hinkley.com...
