Cylinder Disassembly; Cylinder Inspection - Cascade F Series Service Manual

S
ERVICE

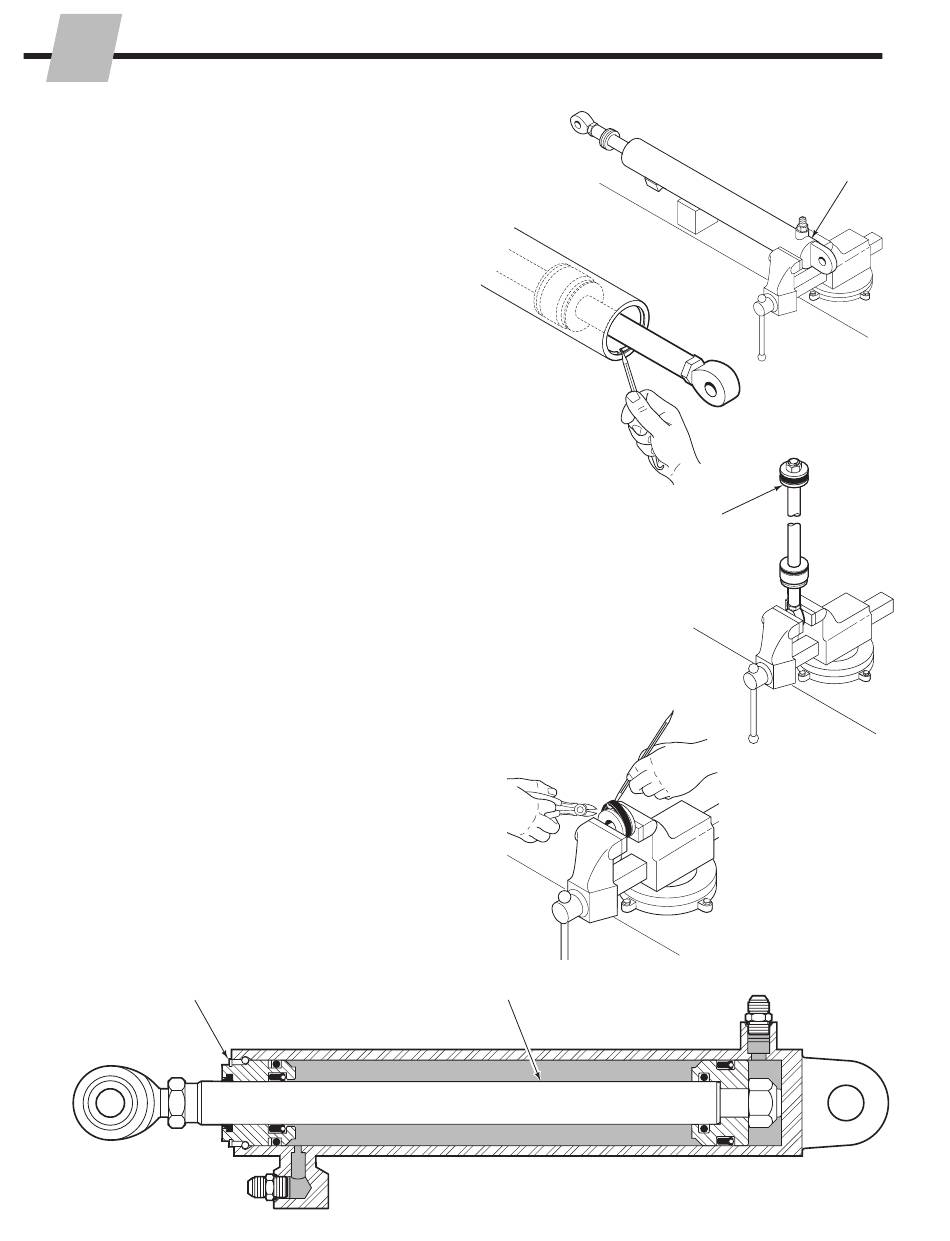

Cylinder Disassembly

5.5-2
1
Clamp the cylinder in a soft-jawed vise. Clamp lightly
on the base end only.
2
Position the cylinder rod in the fully extended position.
Remove the spiral snap ring from the retainer. See the
illustration below.
3
Tap the retainer into the shell approximately 2 in.
(50 mm). Remove the retaining ring by prying one end
up and working the ring out of the groove.
Service Tool Kit 674424 includes two double-ended
brass tools that make seal and ring removal easy and
won't damage the cylinder components with dents or
scratches.
CAUTION: Do not scratch the cylinder bore.
4
Remove the rod assembly from the cylinder. See the
illustration below.
5
Clamp the rod assembly in a soft-jawed vise or between
two blocks of wood. Never clamp directly on the rod
sealing surface. Remove the nut fastening the piston to
the rod. Remove the piston and retainer.
6
Place the piston or retainer in the vise to remove the
seals. Pry the seals up with a brass tool. Cut the seals
to remove.
CAUTION: Do not scratch the seal grooves.

Cylinder Inspection

5.5-3
• Inspect all components for nicks or burrs. Minor nicks
or burrs can be removed with 400 grit emery cloth.
NOTE: Minor nicks are those that will not bypass oil
under pressure. If nicks cannot be removed with emery
cloth, replace the part.
• Inspect the outside of the shell for deformities that could
weaken the shell's performance when under pressure.
Replace if necessary.
2
26
3
6
4
1
FP0075.eps
FP0094.eps
5
FP0077.eps
SS0088.eps
FP0045.ep
208743 Rev. 1
