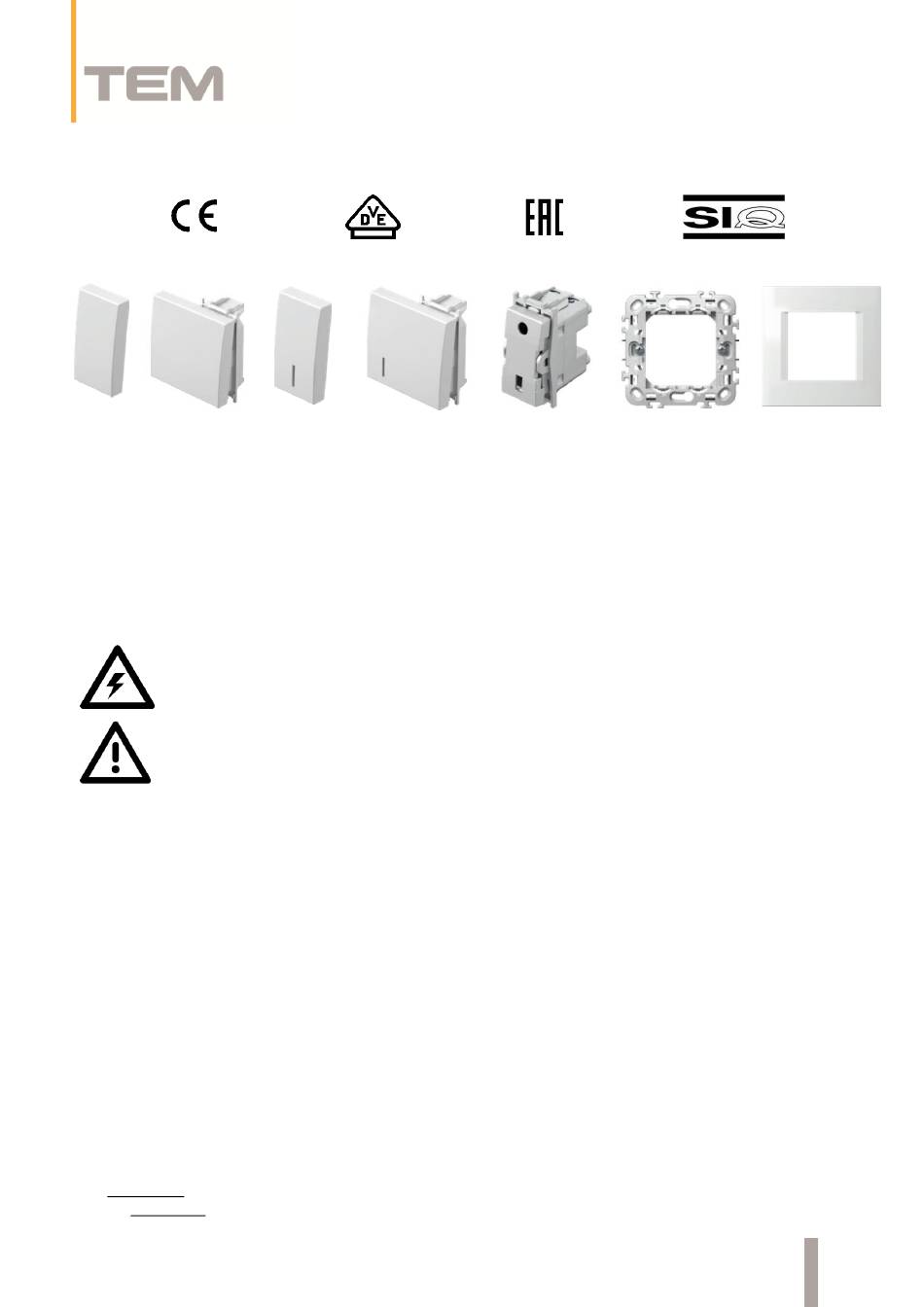

MODUL switch instruction manual
1M button
2M button
(TM11xx)
(TM12xx)
User instructions
Before installation, read the instructions carefully and check that the product is not damaged. This avoids the possibility of a
fault that could cause personal injury or damage to the electrical wiring. The instructions are intended for all users; show this
document to a qualified person before installing the switches.
Safety instructions
Please read the instructions carefully and follow the safety instructions. In the event of not observing the
safety and operating instructions, we do not accept any liability for damage to products and persons. Due to
the risk of electric shock, only qualified personnel may carry out the installation!
Keep the product out of the reach of children or unauthorized persons. Do not disassemble the product as
this will void the warranty. If not properly installed, the product may be permanently damaged. The product
is intended for indoor use and in covered outdoor areas in the temperature range between -20 °C and +45 °C.
It should not be exposed to moisture, rain or water. The product is used for an alternating current of up to
250 V and the current should not exceed the values indicated on the product. Failure to comply with safety
regulations may result in electric shock!
Product description
The switches are used to switch the electrical circuits on and off for 16 A or 20 A currents (indicated on the product). They
can be used for lighting, signalization, control of blinds motors and other purposes where electrical circuit assembly is
required. The switches are suitable for mounting in wall boxes, CUBO surface mounted boxes, MA trunking systems, MO
distribution boxes and MT floor boxes.
Technical information
Rated current and type: indicated on the product
Rated voltage: 250 V~
Manufacturer information
TEM Čatež d.d.
Čatež 13
8212 Velika Loka, Slovenia
Tel. +386 (0)7 3489 900
Mail: info@tem.si
Internet: www.tem.si
1M button
2M button
indicator
indicator
(TM11xxIN)
(TM12xxIN)

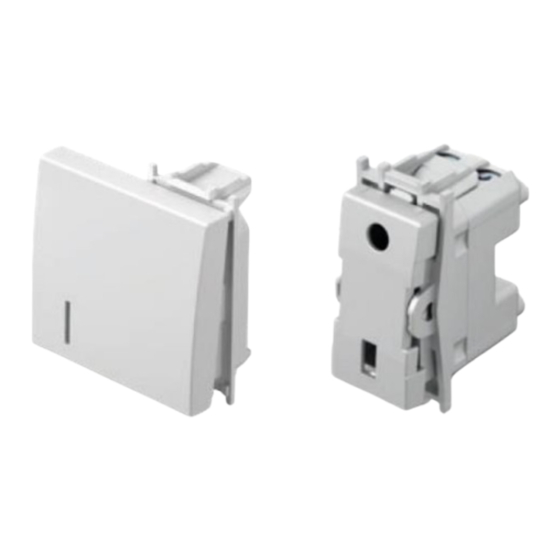

Switch
Mounting frame
(SMxx)
(NMxx)
Cover plate
(OLxx, OSxx, OPxx)
1
Advertisement
Table of Contents
Related Manuals for TEM TM11 Series
Summary of Contents for TEM TM11 Series
- Page 1 MT floor boxes. Technical information Rated current and type: indicated on the product Rated voltage: 250 V~ Manufacturer information TEM Čatež d.d. Čatež 13 8212 Velika Loka, Slovenia Tel. +386 (0)7 3489 900 Mail: info@tem.si Internet: www.tem.si...
- Page 2 Maintenance and cleaning • The product requires no special maintenance. There are no serviceable components inside the product, so never open or disassemble the products. • Do not use aggressive cleaning agents or chemical solutions as this may destroy the plastic parts. •...
- Page 3 SM60 + SM70 + SM60 SM60 + SM70 + SM60 SM60 + SM70 + SM60 SM20 SM20 *unsuitable for LED and CFL loads • De-energize the system by switching off the fuse or main switch. • Remove the insulation on the conductors 11 mm in length. •...
- Page 4 Warranty The manufacturer provides a warranty to the buyer for the properties and the fault-free operation of their products for a period of 5 (five) years from the date of purchase. The manufacturer undertakes to remedy any defect in the product which would occur within the warranty period, at their own expense or by a qualified service technician, within a reasonable time, which shall not exceed 45 days from the receipt of the advertised product and the buyer's written notification of the error, or to deliver to the buyer a new product of the same type and at least of the same quality within the stated time.
