Easidew Transmitter User's Manual
2.5.2

Transmitter Mounting - Direct Pipeline Connection

The transmitter may be directly mounted into a pipe or duct, as shown in Figure 8
The pipe or duct will require a thread to match the transmitter body thread. Fixing
dimensions are shown in Figure 8 . For circular pipework, to ensure the integrity of a
gas tight seal, a mounting fl ange will be required on the pipework in order to provide a
fl at surface to seal against.
1. Ensure that the blue protective cover (and its desiccant capsule) has been
removed from the tip of the transmitter.
2. Fit a bonded seal (2) over the threaded part of the transmitter body.
3. Screw the transmitter (3) into the pipe (1). Tighten enough to obtain a
gas tight seal. (Torque will depend upon the pipeline material.) NOTE: Do
not overtighten or the thread on the pipework may be stripped.
Michell Instruments
CAUTION: Do not mount the transmitter too close to the
bottom of a bend where any condensate in the pipeline
might collect and saturate the probe.
The following procedure must be carried out by
WARNING: Under no circumstances should the
sensor guard be handled with the fi ngers.
1
1
2
48mm 3
(1.9")

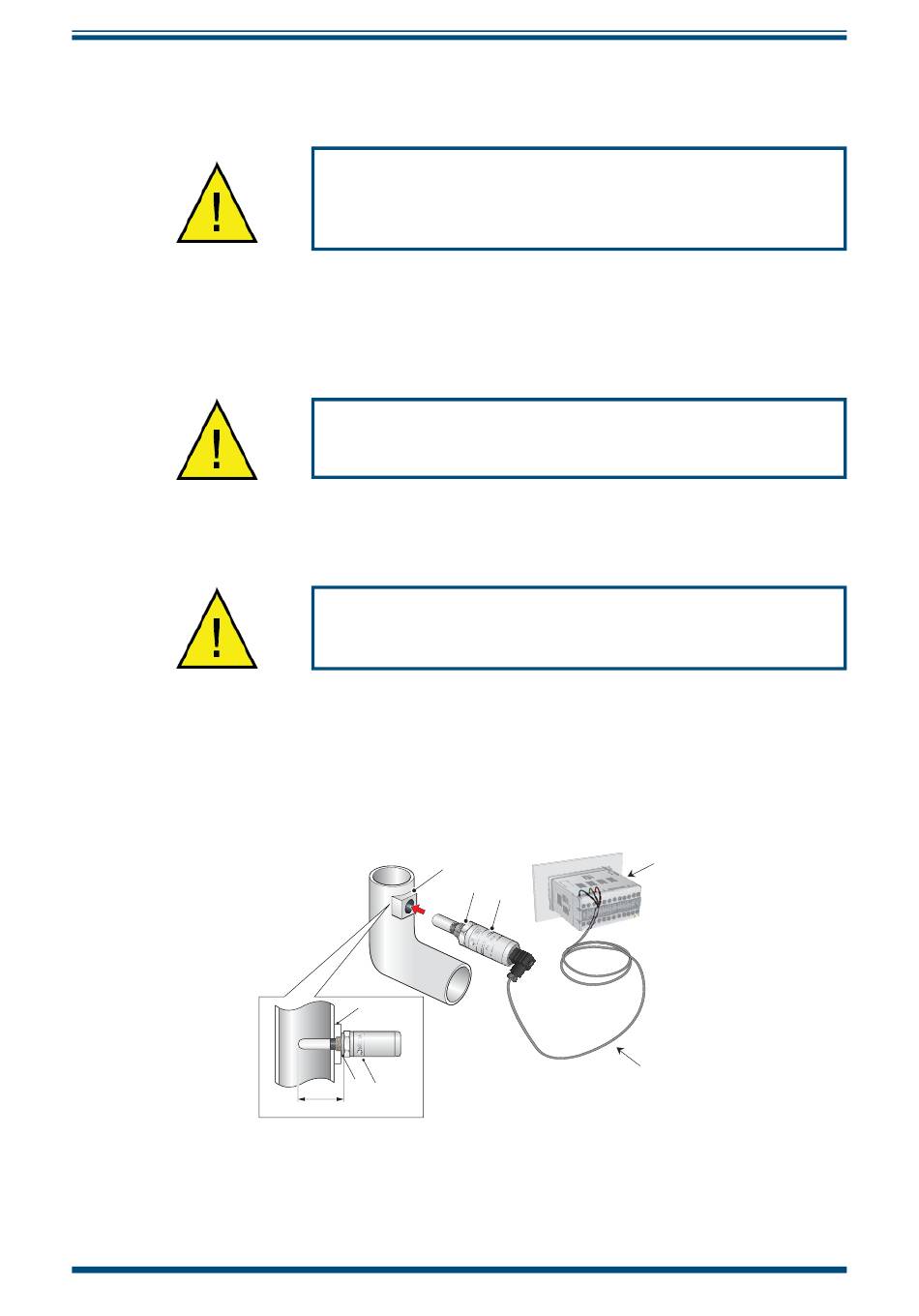

Figure 8 Transmitter Mounting - Pipe or Duct
competent personnel.
2
3
Optional
(available
on request)
INSTALLATION
Optional
display
(available
on request)
cable
7
