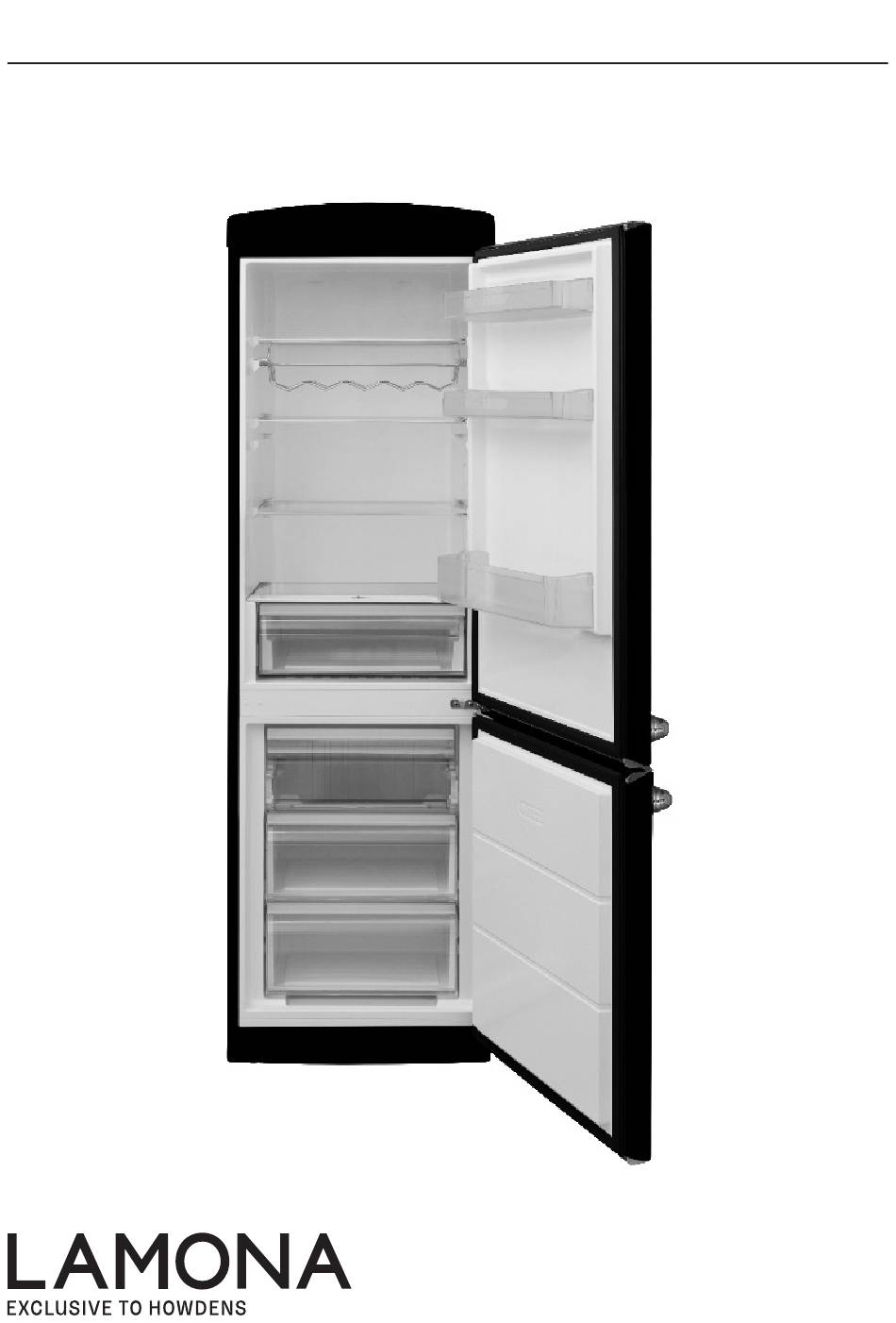

- Page 1 USER MANUAL LAMONA FREESTANDING FRIDGE FREEZER FLM6300 / FLM6302 WWW.HOWDENS.COM...
- Page 2 Register your Lamana appliance purchased from Howdens Joinery to allow us to easily contact you in the event of important product updates at: www.howdens.com/appliance-registration See back page for product serial number...
-
Page 3: Table Of Contents
Contents Before Using the Appliance General Warnings Old and Out-Of-Order Fridges Safety Warnings Installing and Operating Your Fridge Before Using Your Fridge Freezer The Parts of the Appliance The Controls and Operation Thermostat Setting Warnings about Temperature Adjustments Accessories Ice Tray The Plastic Scraper Freezer boxes Humidity controler... -
Page 4: Before Using The Appliance
Before using the Appliance General Warnings WARNING: Keep ventilation openings in the appliance clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. - Page 5 • This appliance is intended to be used in household and domestic applications (see Guarantee page) such as: − staff kitchen areas in shops, offices and other working environments. − farm houses and by clients in hotels, motels and other residential type environments.
- Page 6 • If the supply cord is damaged, it must be replaced by an authorised service agent, or similarly qualified person, in order to avoid a hazard. • This appliance is not intended for use at altitudes exceeding 2000 m. To avoid contamination of food, please respect the following instructions: •...
-
Page 7: Old And Out-Of-Order Fridges
Old and Out-of-Order Fridges or Freezers • If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers contain insulation material and refrigerant with CFC. Therefore, take care not to harm the environment when you are discarding old fridges. -
Page 8: Installing And Operating Your Fridge
Installing and Operating your Fridge Freezer Before using your fridge freezer for the first time, please pay attention to the following points: • The operating voltage for your fridge freezer is 220-240 V at 50Hz. • The plug must be accessible after installation. •... -
Page 9: Before Using Your Fridge Freezer
Before Using your Fridge • When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor. •... -
Page 10: The Parts Of The Appliance
The Parts of the Appliance This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A) Refrigerator compartment 9) Freezer bottom basket B) Freezer compartment 10) Levelling feet 1) Thermostat knob 11) Freezer glass shelves 2) Lamp cover 12) Bottle shelf... -
Page 11: The Controls And Operation
Controls and Operation Thermostat Setting The fridge freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained. Important note: Do not try to rotate knob beyond position 1, it will stop your appliance from working. -
Page 12: The Plastic Scraper
Accessories (cont.) After some time, frost will build up in certain areas of the freezer. The frost accumulated in the freezer should be removed regularly. See Defrosting section. Freezer Boxes The freezer box allows food to be accessed more easily. Removing the freezer box: •... -
Page 13: Cleaning And Maintenance
Cleaning and Maintenance Disconnect the unit from the power supply before cleaning. Do not clean the appliance by pouring water on it use a clean, damp cloth. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water, damp cloth and dry carefully. -
Page 14: Defrosting The Freezer Compartment
Defrosting (cont.) Defrosting the freezer compartment • The frost, which covers the shelves of the freezer compartment, should be removed periodically. • Do not use sharp metal objects for this operation. They could puncture the refrigerant circuit and cause irreparable damage to the unit. Use the plastic scraper provided. •... -
Page 15: Arranging Food In The Appliance
Arranging Food in the Appliance For normal operating conditions, set the temperature +4°C or +6°C. Refrigerator Compartment • To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting. -
Page 16: Freezer Compartment
Freezer Compartment • Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice. • To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket. - Page 17 The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment. Meat and fish Preparation Maximum storage time Steak Wrap in foil 6 - 8 months Lamb meat Wrap in foil 6 - 8 months Veal roast...
- Page 18 Vegetables and fruits Preparation Maximum storage time String Beans and Beans Wash, cut into small pieces and boil in water 10 - 13 months Beans Hull, wash and boil in water 12 months Cabbage Clean and boil in water 6 - 8 months Carrot Clean, cut into slices and boil in water 12 months...
-
Page 19: Transportation And Changing Of Installation Position
Transportation and Changing of Installation Position Transportation and Changing Positioning Remove all movable parts (shelves, accessories, vegetable bins, etc.) or fix them into the appliance to protect against damage when re-positioning or transporting. Always carry your appliance in the upright position. Reversing the Door It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door. -
Page 20: Befor Calling After Sales Service
Before Calling After Sales Service Errors If your fridge freezer is not working properly, it may be a minor problem, therefore to save time and money, check the following, before calling an electrician. What to do if your appliance does not operate Check that: •... -
Page 21: Tips For Saving Energy
If you hear any other noises check that: • The appliance is level • Nothing is touching the rear of the appliance • The objects on the appliance are vibrating. Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting. - Page 22 1.1 Electrical Information (For UK Type Plug) WARNING: This appliance must be earthed. The mains lead of this appliance has been fitted with an earthed plug. IMPORTANT: Do not use the appliance without the fuse cover in position. Should the fuse need to be replaced, it must be replaced with a 13A fuse, ASTA approved to BS1362.
- Page 23 Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance.
- Page 24 Product serial number Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA Product information correct at the time of publication in February 2020. The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual. Subject to the Terms and Conditions of Trading, a copy of the Howdens Terms and Conditions is available upon request.
