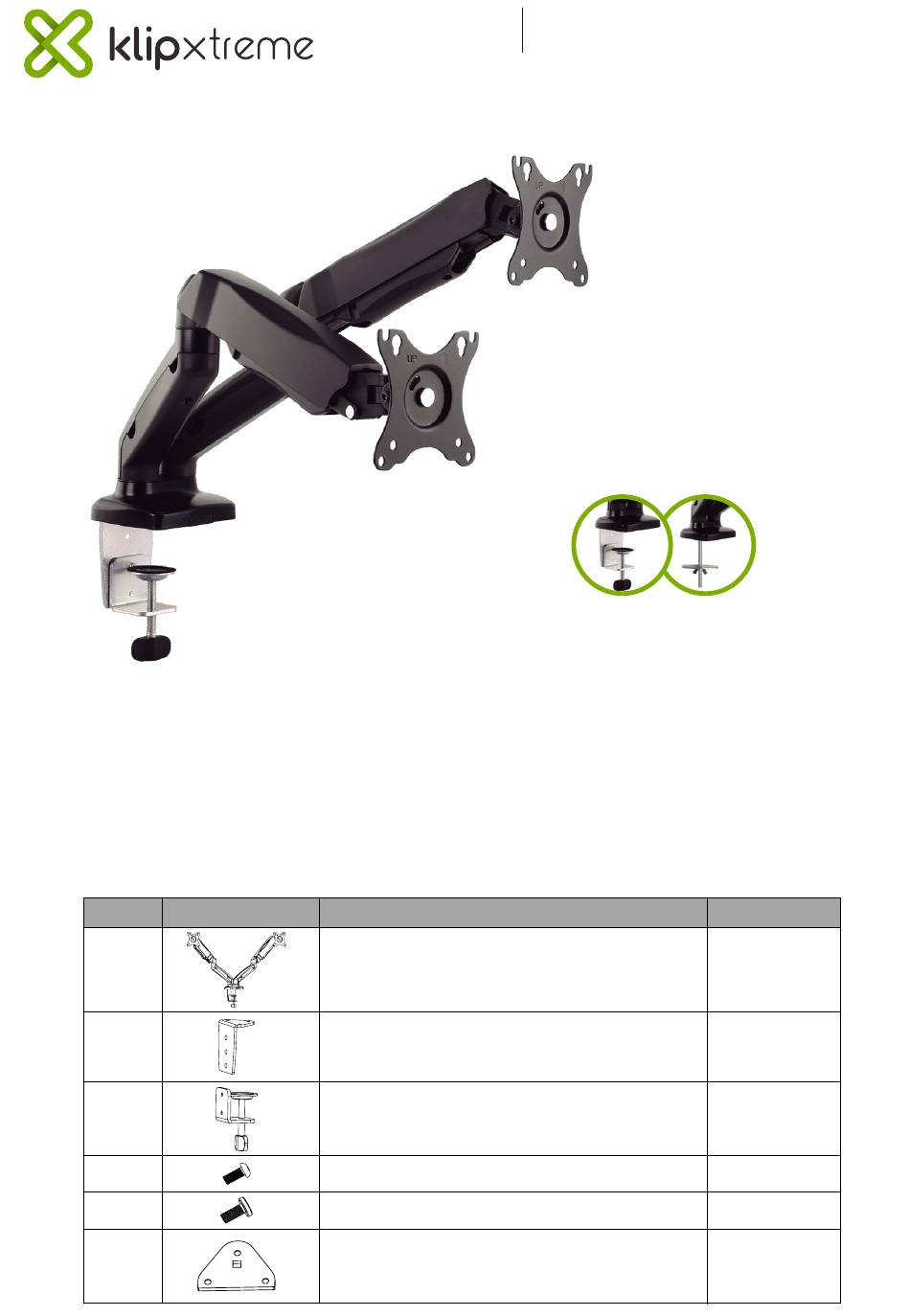

KPM-312
Introduction:
Thank you for purchasing the KPM-312 LCD/LED dual monitor mount with gas spring
mechanism. This product is shipped with all proper installation hardware and components.
Upon opening the box, make sure that none of these parts are missing and/or damaged
before beginning installation.
1. Hardware kit
Label
A
B
C
D
E
F
Item
Monitor mount assembly
C-clamp top plate
C-clamp bottom plate with knob
M6x10 plate retaining screw
M6x12 mounting screw
Grommet mount
LCD/LED dual monitor mount
with gas spring mechanism
C-clamp/Grommet base
configuration
Quantity
1
1
1
2
3
1
Advertisement
Related Manuals for KlipXtreme KPM-312
Summary of Contents for KlipXtreme KPM-312
- Page 1 Introduction: Thank you for purchasing the KPM-312 LCD/LED dual monitor mount with gas spring mechanism. This product is shipped with all proper installation hardware and components. Upon opening the box, make sure that none of these parts are missing and/or damaged before beginning installation.
-
Page 2: Desktop Installation
3. Product diagram Label Image Item Quantity M8 wing nut M8x105mm screw 160mm 225mm-290mm 50mm Flat clamping plate ± 180˚ +90˚ +45˚ 4mm allen wrench 5mm allen wrench 75mm M4x12 screw 4 (per arm) 100mm 117mm M5x12 screw 4 (per arm) ±... - Page 3 Option B – Grommet mount 2. The clamp provides two positions depending on the thickness of your desk (from 10 to 83mm). The top screw hole is designed for thinner surfaces, while the bottom hole will fit 1. This option requires a hole through the mounting surface. After making sure the grommet tabletops with thicker edges.
- Page 4 3. Center the base over the top of the hole in the mounting location. From underneath the 5. Installation of the monitor plate to the display surface, slide the flat clamping plate onto the M8 screw. 1. Carefully place your display face down on a soft, even surface, and identify the threaded mounting points that are located on the back panel.
- Page 5 4. Then simply slide the monitor onto the VESA plate by aligning the pear-shaped slots with 6. Repeat the same procedure to attach the second monitor to the other arm. the screws attached to the monitor, until it is properly positioned in place. 7.
- Page 6 9. Replace the cable covers and secure them with the screws you just removed. Notes 10. This dual side-by side monitor mount lets you adjust the viewing, tilt and swivel angles, including the orientation of the screen (portrait or landscape). 11.
