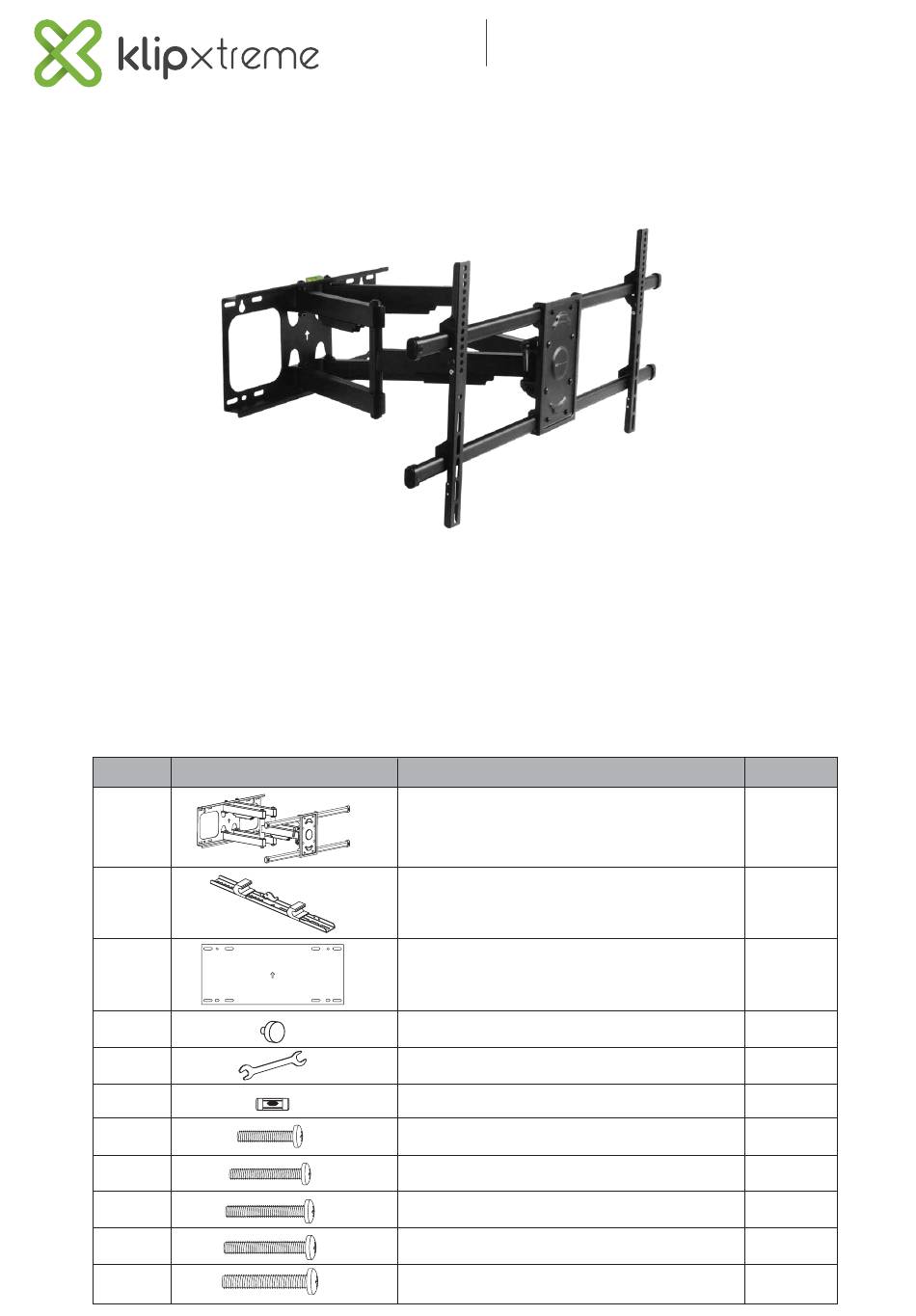

KlipXtreme KPM-955 Quick Installation Manual

Articulated tilt and swivel mount for led/lcd and plasma displays

Advertisement

Quick installation guide
KPM-955
Introduction:
Thank you for purchasing the KPM- 955 Tilt and swivel mount. This product is shipped with all
proper installation hardware and components. Upon opening the box, make sure that none of
these parts are missing and/or damaged before beginning installation.

1. Hardware kit

Label
A
B
C
D
E
F
M-A
M-B
M-C
M-D
M-E
Articulated tilt and swivel mount
for LED/LCD and plasma displays
Item
Wall mount assembly
TV mount arm
Template
Tool-less threaded fastener
Nut wrench
Bubble level
M5x14mm screw
M6x14mm screw
M6x30mm screw
M8x30mm screw
M8x50mm screw
Quantity
1
2
1
2
1
1
4
4
4
4
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPM-955 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KlipXtreme KPM-955

  • Page 1 Articulated tilt and swivel mount for LED/LCD and plasma displays Quick installation guide KPM-955 Introduction: Thank you for purchasing the KPM- 955 Tilt and swivel mount. This product is shipped with all proper installation hardware and components. Upon opening the box, make sure that none of these parts are missing and/or damaged before beginning installation.
  • Page 2 CAUTION: Verify the adequate thread engagement of the screw/spacer combination on Label Image Item Quantity your TV. Too short will not hold the TV and too long will damage the TV. Rectangular washer Short round spacer Long round spacer Lag bolt Concrete anchor Metal flat washer IMPORTANT:...
  • Page 3 If your display has an irregular back or recessed mounting points, spacers must be placed between the mounting arm and the back of the screen to compensate the difference in depth. Curved screens and flat panels with an irregular back or recessed mounting points Use the recommended screws and rectangular washers to secure both arms to the display.
  • Page 4 For concrete or brick walls, level wall plate and mark the hole locations. Check the bubble level. If the bubble is centered between the lines, it means that the wall plate is correctly positioned on the surface. Proceed to drill the pilot holes using a drill bit, as illustrated. For concrete or brick walls, insert the anchors making sure they are seated flush with the surface.
  • Page 5 With the mount fully extended, make all the necessary connections and route the wires through the cable management channels, for a finished and professional looking installation. Adjust the tilt and use the supplied wrench to tighen the bottom nuts fixing the connecting plate to the wall mount.
  • Page 6 Next, adjust the level and swivel angles in the best viewing position, as shown in the figure below. Notes Finish by pushing or pulling the articulating arm until the optimal distance from the wall is reached. 2.7in collapsed 25in fully extended...
