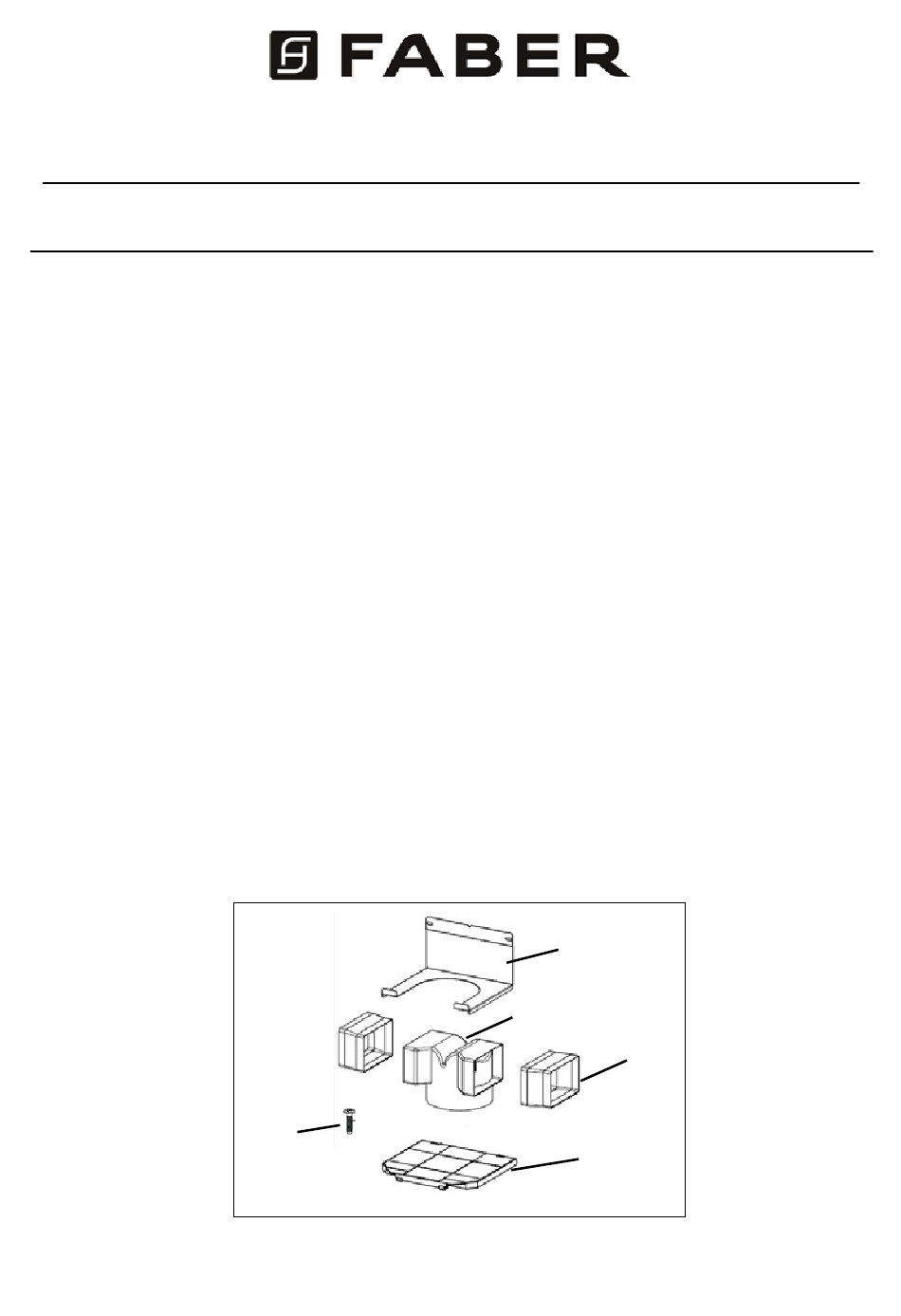

DUCTLESS KIT (#DUCT3) INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION DE DUCTLESS (#DUCT3)
FOR USE WITH THE FOLLOWING PRODUCTS:
POUR L'USAGE AVEC LES PRODUITS SUIVANTS:
This kit consists of:
A) CHARCOAL FILTER
B) DUCTLESS DIVERTER
C) EXTENSION PIECES
D) DIVERTER WALL SUPPORT
E) SCREW
GLASSY 30 (GLAS30SS)
GLASSY 36 (GLAS36SS)
GEMMA 24 (GEMM24SS)
GEMMA 30 (GEMM30SS)
GEMMA 36 (GEMM36SS)
Ce kit se compose :
A) FILTRE de CHARBON DE BOIS
B) AIGUILLAGE SANS CANAL
C) MORCEAUX DE PROLONGATION
D) de SOUTIEN de MUR d'AIGUILLAGE
E) VIS
E
D
B
C
A
Version 02/11- Page 1
Advertisement
Table of Contents
Related Manuals for Faber DUCT3
Summary of Contents for Faber DUCT3
- Page 1 DUCTLESS KIT (#DUCT3) INSTALLATION INSTRUCTIONS INSTRUCTIONS D’INSTALLATION DE DUCTLESS (#DUCT3) FOR USE WITH THE FOLLOWING PRODUCTS: POUR L'USAGE AVEC LES PRODUITS SUIVANTS: GLASSY 30 (GLAS30SS) GLASSY 36 (GLAS36SS) GEMMA 24 (GEMM24SS) GEMMA 30 (GEMM30SS) GEMMA 36 (GEMM36SS) This kit consists of:...
- Page 2 FOR DUCTLESS INSTALLATIONS (SEE HOOD INSTALLATION INSTRUCTIONS FOR FURTHER INSTRUCTION ) The UPPER CHIMNEY COVER must be installed first, before the LOWER CHIMNEY. 1) See (FIGURE 1), Step 1 - connect B (Diverter) and C (2 - Diverter extension) pieces together, one on each end. Hold the (D) Diverter wall support on the wall 1/8"...
