Summary of Contents for Infinite Peripherals Infinea BluePad 2.0

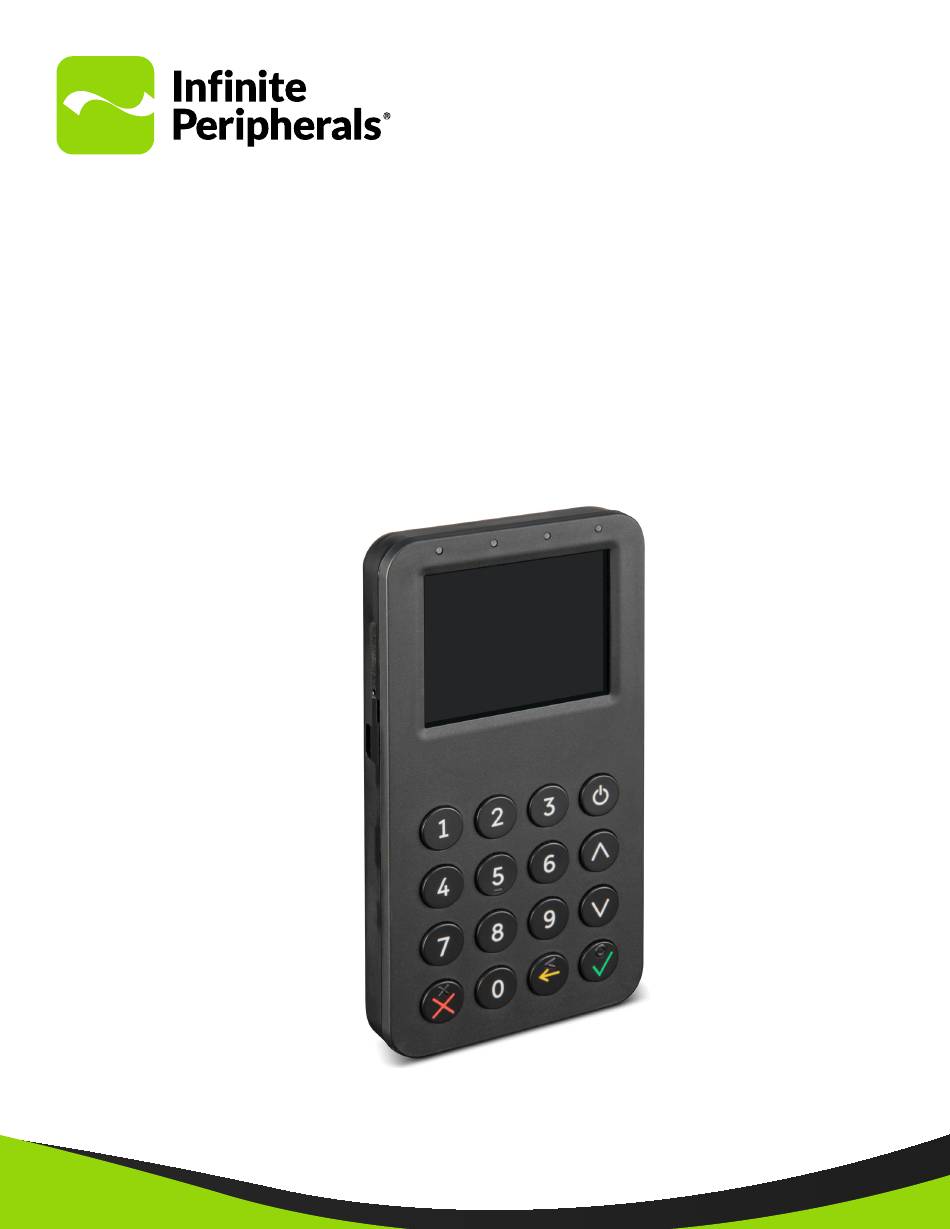

- Page 1 User Manual Infinea® BluePad 2.0 ® ® ® For Apple / Android / Windows...
-
Page 2: Compatible Devices
• Android O/S 2.1 and higher • Window Phone 8 Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. -
Page 3: Table Of Contents
Smartcard Reader Accessories Contactless Credit or Debit Cards Develop Applications Pairing BluePad 2.0 Technical Specifications Scan to Pair BluePad 2.0 Before Using Your Infinea BluePad 2.0 Troubleshooting Getting Started Blank Display Product Description Keyboard Not Responding Developing Applications Failure to Process Transactions Turn On the BluePad 2.0... -
Page 4: Overview
Overview The Infinea BluePad 2.0 is a hand-held PIN pad with an integrated smart card reader, near-field communication (NFC) contactless card reader, and magnetic stripe card reader. This low-energy Bluetooth interface simplifies the pairing process to any smart phone by scanning to pair. -
Page 5: Technical Specifications
Infinea BluePad 2.0 User Manual Technical Specifications Mechanical Any iPod, iPhone, iPad mobile device Compatibility Android, Window Phone 8 180g (6.35oz) Weight without mobile device 133mm x 71mm x 1835mm (5.24” x 2.80” x 72.2”) Dimensions Display • Capacitive touchscreen for signatures •... -
Page 6: Before Using Your Infinea Bluepad 2.0
Inspect the packaging and contents carefully for any signs of damage, and verify the packaging is intact. If there are sign of damage, do not attempt to use the unit. Notify your account executive or contact Infinite Peripherals Support: https://ipcmobile.com/support Infinea BluePad 2.0 (1) -
Page 7: Product Description
Infinea BluePad 2.0 User Manual Product Description This illustrates the key features of the BluePad 2.0. Contactless LED status indicators LCD display touchscreen Keypad Charging pads Chip card reader USB-C connector SIM/SAM card tray Docking station charging pads/UART communications Magnetic stripe reader... -
Page 8: Developing Applications
Software is not provided with your BluePad 2.0. Contact charged for at least four hours and 30 minutes. Infinite Peripherals for Third Party software solutions. Integrating the Infinea BluePad 2.0 with a mobile device Note requires the Infinite Peripherals Universal Software To prevent electrical damage to the unit, only use the included Development Kit (SDK). -
Page 9: Set-Up Service Mode
Infinea BluePad 2.0 User Manual Set-up Service Mode Application Download Mode Service technicians can access service mode to add or delete The BluePad memory may be corrupted if the application data encryption algorithm (DEA) keys. In addition, the download process is interrupted before completion. The keyboard, magnetic strip reader, smartcard reader, and display application integrity checking fails during boot up. -
Page 10: Installing Sim/Sam Cards
Infinea BluePad 2.0 User Manual Installing SIM/SAM Cards Touchscreen Display The SIM/SAM tray only supports Nano SIM cards, which all To use the touchscreen display, ensure the software is loaded. iOS device models after iPhone 5 use. These cards are smaller Refer to Developing Applications for details or visit our and thinner than the micro SIM standard and mini SIM cards. -
Page 11: Magnetic Card Reader
Infinea BluePad 2.0 User Manual Processing Transactions Magnetic Card Reader The BluePad 2.0 can be used with a built-in personal digital assistant (PDA) such as a magnetic card reader. Hold the card with the stripe facing downward. Insert the card into the card reader slot and swipe it through swiftly. -
Page 12: Pairing Bluepad 2.0
Infinea BluePad 2.0 User Manual Pairing BluePad 2.0 Scan to Pair BluePad 2.0 You can pair the BluePad to your iOS device using of two Method two, scan to pair the BluePad 2.0 to your iOS device methods. via BLE. -
Page 13: Troubleshooting
To assist you in installing and configuring your BluePad 2.0 Infinite Peripherals does not warrant, and is not responsible successfully, refer to these guidelines. for, any damage to the Infinea BluePad 2.0 (“Product”) or the Note assembled iOS device as a result of liquid or solid particle... -
Page 14: Symbols
Infinea BluePad 2.0 User Manual Symbols Symbol Description Refer to the instructions before using this product Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Complies with part 15 of the FCC rules Product Returns and Servicing...
