Summary of Contents for Lenoxx Healthy Choice AF1200

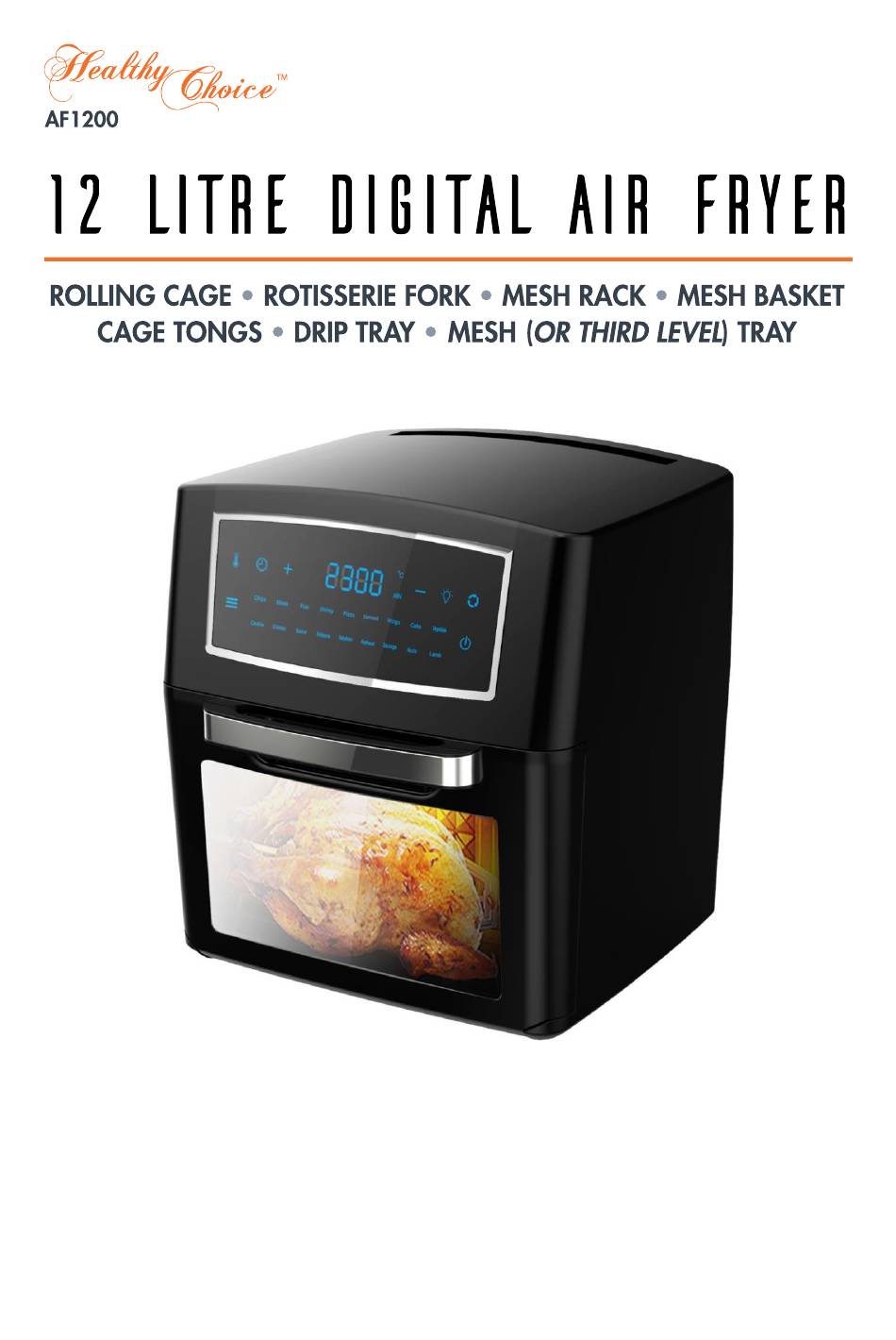

- Page 1 Model No: AF1200 Batch no: PR3835 This appliance is intended for household use only. Please read the manual and relevant notes carefully before using.
-
Page 2: About The Product
The illustrations used in the manual are to illustrate the operation method and product structure of the product. Where there is a small difference between the physical item and the illustrations, please take the physical as the standard. ABOUT THE PRODUCT: Your personal chef has arrived–... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS: When using electrical air fryers, basic safety precautions should always be followed, including the following: 1. Read instructions carefully before use. 2. Remove and safely disregard any packaging material and labels before using this product for the first time. Ensure children and babies do not play with plastic bags or any packaging materials. - Page 4 14. Do not use the appliance for anything other than the intended use. It is for household use only. It is not to be used outdoors or for commercial purposes. 15. Close supervision is necessary when any appliance is used near children. Keep the appliance and power cord out of reach of children when it is in operation or during the cooling process.
-
Page 5: Short Cord Instructions
28. The appliance may emit smoke during it’s first use. It is not defective, and the smoke will burn off within a few minutes. 29. Should the appliance emit black smoke, un-plug it immediately. Wait for the smoke to stop before removing the air fryers contents. SHORT CORD INSTRUCTIONS: Do not use with an extension cord. - Page 6 PRODUCT USE AND ACCESSORIES: * Choose an accessory to use for different cooking styles. Note: Only one rotisserie stick is provided for use with the rolling cage and rotisserie fork. A. ROLLING CAGE: Great for fries, roasted nuts, popcorn and other snacks. Use one of the included screws to secure the baking cage to the rotisserie stick at the indentation point on the rotisserie stick.
- Page 7 B. ROTISSERIE STICK, FORK AND SCREWS: Use for roasts or a whole chicken. Force the shaft length ways through the meat and centre. Slide the forks onto the shaft from either end into the meat. Then lock into place with the screws.
- Page 8 F. DRIP TRAY: Put the drip tray into the air fryer as per the directions below: Note: Please use your own oven mitts to remove the drip tray after the cooking is complete. G. CAGE TONGS: Use to remove cooked roasts or chicken which have been cooked using the rotisserie. Also for removal of the rolling cage.
-
Page 9: Using The Air Fryer
USING THE AIR FRYER: CONTROL PANEL: Power/Start–Stop Button - Once the Unit is plugged in, the buzzer will sound, and the screen will light up and then go off. The Power Button will remain illuminated. Press the power button to turn the screen on. Pressing the Power button a second time will activate the cooking process at the default temperature of 200 °... - Page 10 NOTE: Opening the door during the cooking process will pause the Unit. Internal light will illuminate if doors open. Raise time or temperature Lower time or temperature 9. Function indicator. Press menu button to choose one of functions from below. PRESET COOKING TIMES AND TEMPERATURES: Chips/Fries 200°C...
- Page 11 COOKING WITH THE AIR FRYER: 1. Place the ingredients on a rack, on one of the rotisserie fork, or in the rolling cage. 2. Place the ingredients and chosen accessory into the unit and shut the door. Plug the power cord into a 220-240V dedicated outlet.
-
Page 12: Cooking Chart
COOKING CHART: Some additional info on a range of foods which get great results using the air fryer. FOOD ITEM TIME TEMP COMMENTS Thin frozen fries 15 – 16 mins 200 Degrees Thick frozen fries 15 – 20 mins 200 Degrees Homemade fries 10 –... -
Page 13: Making Home Made Fries
MAKING HOME MADE FRIES: For the best results, we advise to use pre-baked fries. If you want to make home-made fries, follow the steps below: 1. Peel the potatoes and cut them into sticks. 2. Soak the potato sticks in a bowl of water for at least 30 minutes, take them out and dry them with kitchen paper. - Page 14 TIPS: • Foods that are smaller in size usually require a slightly shorter cooking time than larger ones. • Large quantities of food only require a slightly longer cooking time than smaller quantities. • Flipping or turning smaller sized foods halfway through the cooking process ensures that all the pieces are evenly fried.
-
Page 15: Troubleshooting
TROUBLESHOOTING: Problem Possible cause Solution The appliance is not The air fryer does Put the mains plug in an earthed wall plugged into the not work socket. mains power. There are too many ingredients inside the Use smaller batches for more even cooking. rolling cage. -
Page 16: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS: 1. Can I prepare foods other than fried dishes with my Air Fryer? You can prepare a variety of dishes, including steaks, chops, burgers, and baked goods. 2. Is the Air Fryer Oven good for making or reheating soups and sauces? Never cook or reheat liquids in the Air Fryer Oven. -
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE: Note: Unplug the air fryer and allow it to cool down completely before handling, cleaning or storing. • Wash in warm soapy water after use: mesh basket/rack/tray, drip tray, rolling cage, rotisserie stick, forks, screws, cage tong. •... -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS: Voltage: 220～240V Power: 1500W Frequency: 50 Hz Temperature Range: 65 - 200°C Time Setting Range: 1 - 90 min Defrost Temperature Range: 30 - 80°C Defrost Time Setting Range 5 – 90 min Dehydrate Temperature Range: 30 - 80°C Dehydrate Time Setting Range: 1 - 24 hours Capacity:...
