Summary of Contents for Blaupunkt DJ50

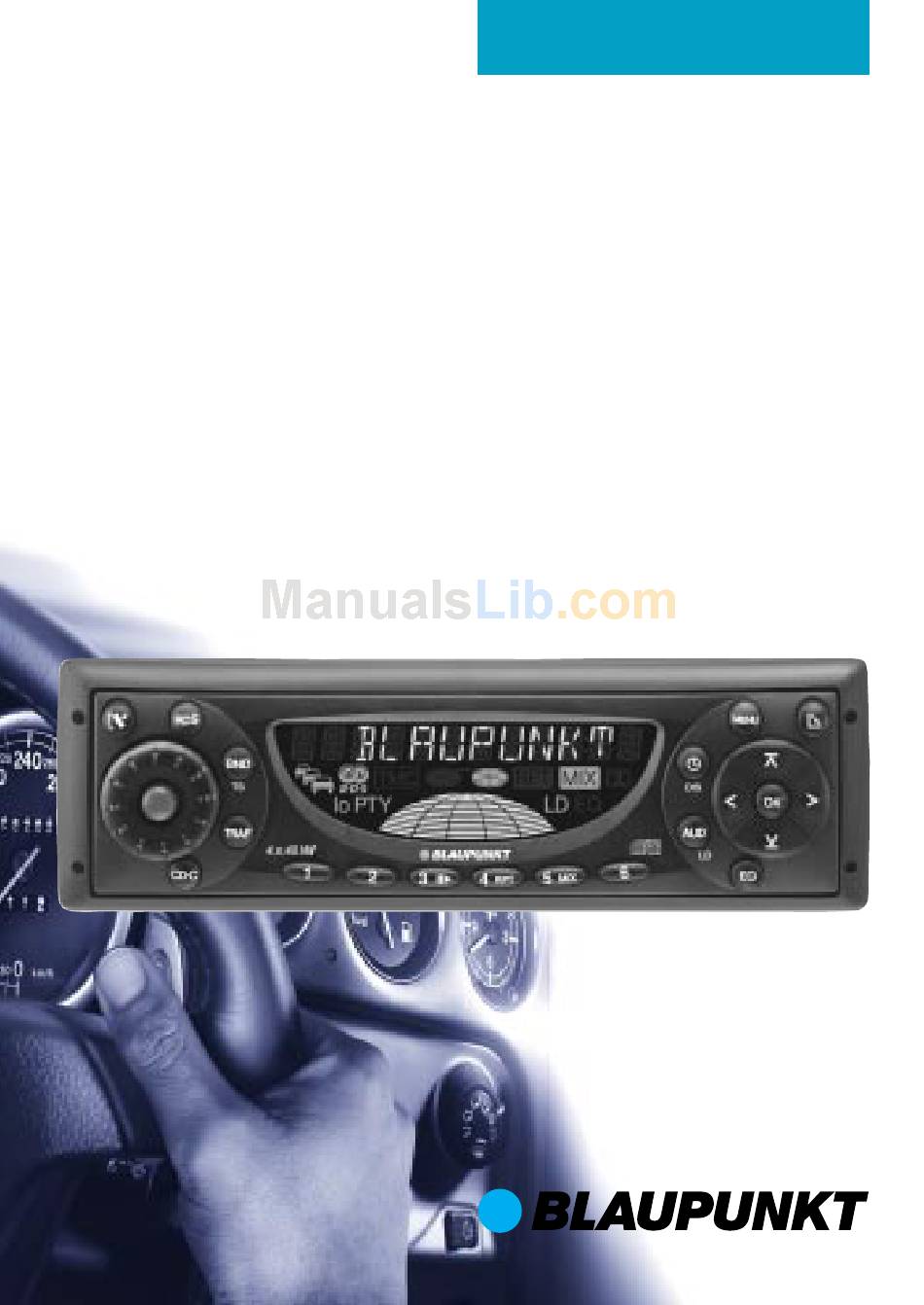

- Page 1 Radio / CD Dakota DJ50 Modena CD50 Sylt CD50 Operating instructions...
- Page 2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir...
-
Page 4: Operating Elements
button to unlock release panel Volume control ON button, switches the unit on/ off, mute RDS button, switches the RDS convenience features on/off Selects display for variable text BND button, selects the FM memory bank and the MW and LW wavebands (the Sylt CD50 does not include MW/LW radio) TS, starts the TravelStore func- tion... -
Page 5: Table Of Contents
CONTENTS Important information ... 27 Traffic safety ... 27 Installation ... 27 Accessories ... 27 Guarantee ... 27 International telephone information . 27 Removable front panel ... 28 Theft protection system ... 28 Removing the operating panel ... 28 Replacing the operating panel ... 28 Switching the car audio system on/off ... -
Page 6: Important Information
IMPORTANT INFORMATION Amplifiers All Blaupunkt amplifiers can be used. CD changers The following CD changers can be con- nected directly: CDC A 06, CDC A 08, CDC A 072 and IDC A 09. -
Page 7: Removable Front Panel
REMOVABLE FRONT PANEL Removable front panel Theft protection system To prevent your car audio system from being stolen, it has been equipped with a removable front panel (flip release panel). Without the front panel, the car audio system is useless to thieves. Protect your car audio system against theft and take the operating panel with you each time you leave the vehicle. -
Page 8: Switching The Car Audio System On/Off
Switching the car audio system on/off The car audio system can be switched on/off in a number of ways. Switching the car audio system on/ off with the ignition If the car audio system has been con- nected to your vehicle ignition, it is pos- sible to switch it on and off with the igni- tion. -
Page 9: Display
VOLUME CONTROL Volume control The car audio system volume can be adjusted to levels from 0 (off) to 66 (max- imum). To increase the volume, turn the volume control knob 2 to the right. To decrease the volume, turn the volume control knob 2 to the left. -
Page 10: Adjusting The Volume Of The Beep
VOLUME CONTROL Adjusting the volume of the beep For a number of functions you will hear a beep if you press a key for longer than 2 seconds, e.g. if you want to store a radio station on a station preset. You can adjust the volume level of this beep. -
Page 11: Selecting Wavebands/Memory Banks
RADIO OPERATION Note: It is necessary to activate/deactivate REG in the menu. Switching REG on/off Press MENU 8. : repeatedly until “REG” Press appears in the display. “OFF” or “ON” will appear next to “REG”. : to switch REG off Press or on. -
Page 12: Adjusting Seek Tuning Sensitivity
Adjusting seek tuning sensitivity It is also possible to adjust the sensitiv- ity of the seek tuning function to tune the radio into stations with strong recep- tion signals only, or to those with weak- er reception signals as well. Press MENU 8. -
Page 13: Adjusting The Scan Time
RADIO OPERATION flashing station name or frequency of the radio station currently being scanned. Stopping the SCAN function, continuing to listen to the radio station scanned Press OK ;. SCAN will end and the last station scanned will continue playing. Adjusting the scan time Press MENU 8. -
Page 14: Optimising Radio Reception
: to start seek tun- Press ing. The next radio station broadcasting the program selected will begin to play. Note: If the radio is not able to find a station broadcasting the program type select- ed, you will hear a beep and “NO PTY” will appear briefly in the display. -
Page 15: Traffic Information Reception
TRAFFIC INFORMATION RECEPTION Traffic information reception Switching traffic information priority on/off Press TRAF ?. Traffic information priority is activated when the traffic congestion symbol lights up in the display. Note: You will hear a warning beep if you leave the reception area of the traffic information station you are tuned into. -
Page 16: Cd Player Operation
CD player operation The CD player in this car audio system can be used to play conventional music CDs with a diameter of 12 cm. Danger of damage to the CD player! CD singles with a diameter of 8 cm and contour CDs (shape CDs) are not suitable for use with this CD play- We assume no liability for any dam-... -
Page 17: Repeating Individual Tracks (Repeat)
CD PLAYER OPERATION Stopping the SCAN function, continue listening to the current track To stop the SCAN function, press OK ;. The track currently scanned will contin- ue playing. Repeating individual tracks (REPEAT) To repeat the track currently play- ing, press 4 RPT >. “REPEAT TRCK”... -
Page 18: Cd Changer Operation
CD changer operation Note: For information on how to handle CDs, how to insert CDs into the changer and how to operate the changer, please re- fer to the instructions included with the CD changer. Starting CD changer operation Press CD•C @ repeatedly until “CHANGER”... -
Page 19: Scanning All Of The Tracks On All Of The Cds (Scan)
CD CHANGER OPERATION Stopping the MIX function To stop the MIX function, press 5 MIX > repeatedly until “MIX OFF” appears briefly in the display and MIX no longer lights up. Scanning all of the tracks on all of the CDs (SCAN) To scan all of the tracks on all of the CDs in ascending order, press OK ;... - Page 20 Selecting the 12/24-hour time display mode Press MENU 8. “MENU” will appear in the display. : repeatedly until “24 H Press MODE” or “12 H MODE” appears in the display. : to switch the dis- Press play mode. Once you have selected the mode, press MENU 8 or OK ;.
-
Page 21: Adjusting The Tone And Balance/Fader
TONE AND BALANCE/FADER Adjusting the tone and balance/fader Adjusting the bass To adjust the bass, press AUD / LD “BASS” will appear in the display. : to alter the bass. Press Adjusting the treble To adjust the treble, press AUD / LD =. -
Page 22: Equalizer
Equalizer This car audio system is equipped with a parametric 2-band equalizer. For “LOW EQ” the gain can be set to a fre- quency between 60 to 100 Hz. For “HIGH EQ” the gain can be set to a fre- quency between 10000 and 17500 Hz. -
Page 23: Assistance In Setting Your Equaliser
EQUALIZER Assistance in setting your equaliser Start to make your settings in the treble and end it with the bass range. Frequency range Sound impression/problem Bass Bass reproduction 60 to 100 Hz too weak Treble Lifeless reproduc- 10000 to tion. 17500 Hz Lack of transparen- Instruments do not... -
Page 24: External Audio Sources
EXTERNAL AUDIO SOURCES External audio sources In place of the CD changer it is also possible to connect other external au- dio sources to the line output. These sources can include a portable CD play- er, MiniDisc player or MP3 player. You must activate the AUX output in the menu. - Page 25 01-6 10 39-0 015 762 241 026 130 04 41 800-266 25 28 006 535 054 47 042 175 873 212 Blaupunkt-Werke GmbH Bosch Gruppe K7/VKD 8 622 402 138 Fax: 0 51 21 49 40 02 0 25 25 54 48...
