MapView

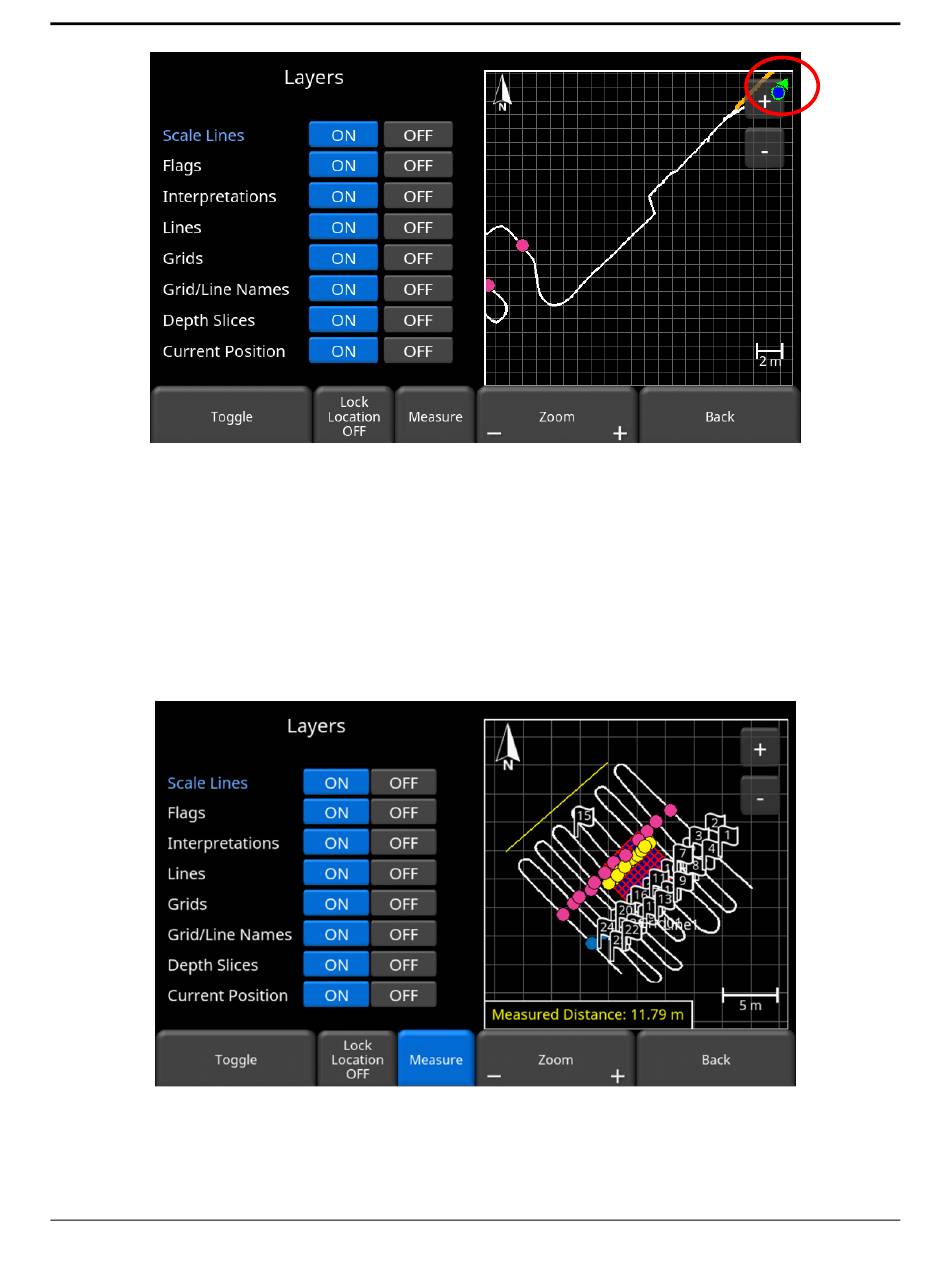

Figure 9-6: With the Lock Location enabled, the MapView display is locked. It shows an icon (in the red circle) when
the user's current position is outside of the display.
When the Measure button is pressed, it is highlighted in blue. During this time, you can touch
the screen and drag your finger a certain distance to get a measurement value for that distance.
The distance value is displayed in the bottom left corner in yellow of MapView (Figure 9-7).
Pressing the Measure button again exits from Measure mode and removes the yellow
measured line and the measured value.
Figure 9-7: Using the Measure tool to draw a line on the screen
