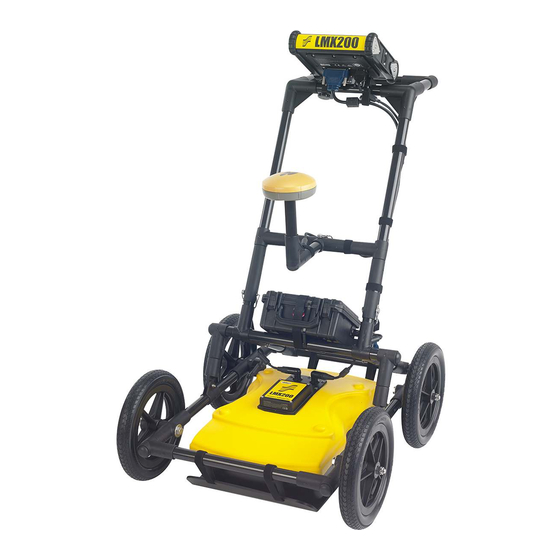

Sensors & Software LMX200 Quick Start Manual

LMX200
QUICK START GUIDE

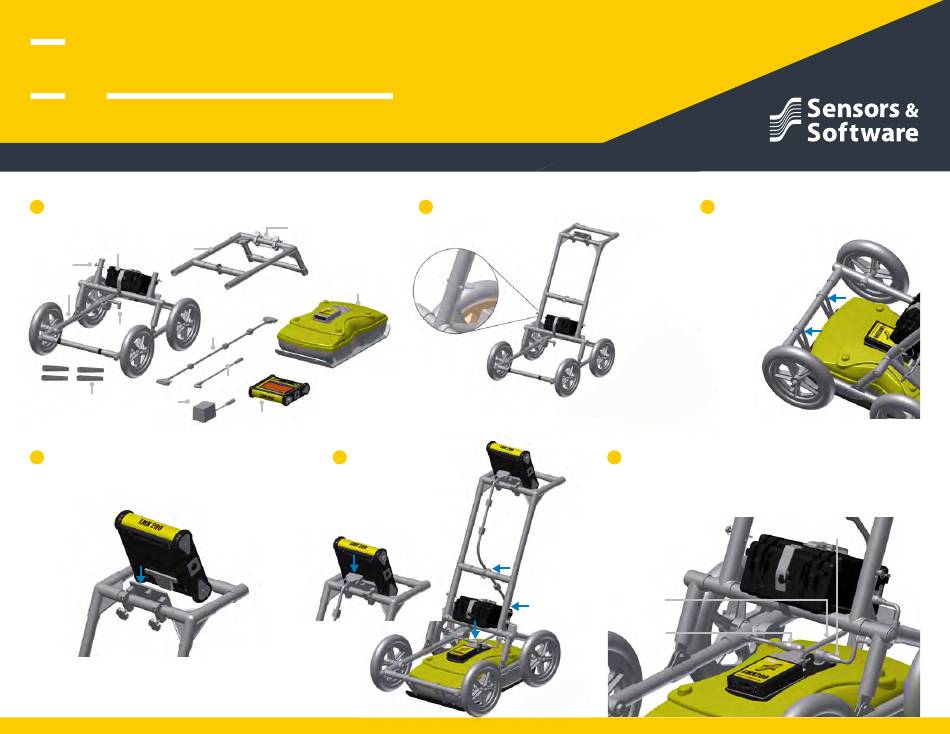

Assembly Procedure
1
You will find the following components in your LMX200 box.
Some of these may already be assembled.
Cart Handle
Battery
Handle Pin
Cart Base
Odometer
Cable
Sensor Support
Straps
Battery
Charger
4
Attach the Display Unit onto the Display Unit Tray
on the Cart. The Display unit slides down into the tray,
catching on both sides of the mount and is held in place
with the pull pin. When a click is heard, the Display Unit
is firmly in place.
Display Unit Tray
GPR Sensor
Display
Cable
Battery
Cable
Display Unit
5
Attach the Display Cable
to the back of the
Display Unit with the
jackscrews.
Connect the other end of
the cable to the Sensor.
Ensure the cable is
routed as shown below.
2
Attach the Cart Handle to Cart Base using the Handle Pins.
Ensure the Display Unit Tray
is facing the operator.
3
Attach the GPR Sensor to the Cart using the
Sensor Support Straps. Ensure the Sensor is
oriented the correct way with the
connections toward the back
of the Cart. Using the
Sensor Support Straps,
adjust the height
of the Sensor so it is
1-2 cm (½ – ¾ inch)
above the ground.
6
Attach the Odometer and Battery Cables.
The Odometer Cable connects to the closest
receptacle on the Sensor. Attach the Battery Cable
to the Sensor and the Battery.
The system is now ready to use.
Display
Cable
Odometer
Cable
Battery
Cable
