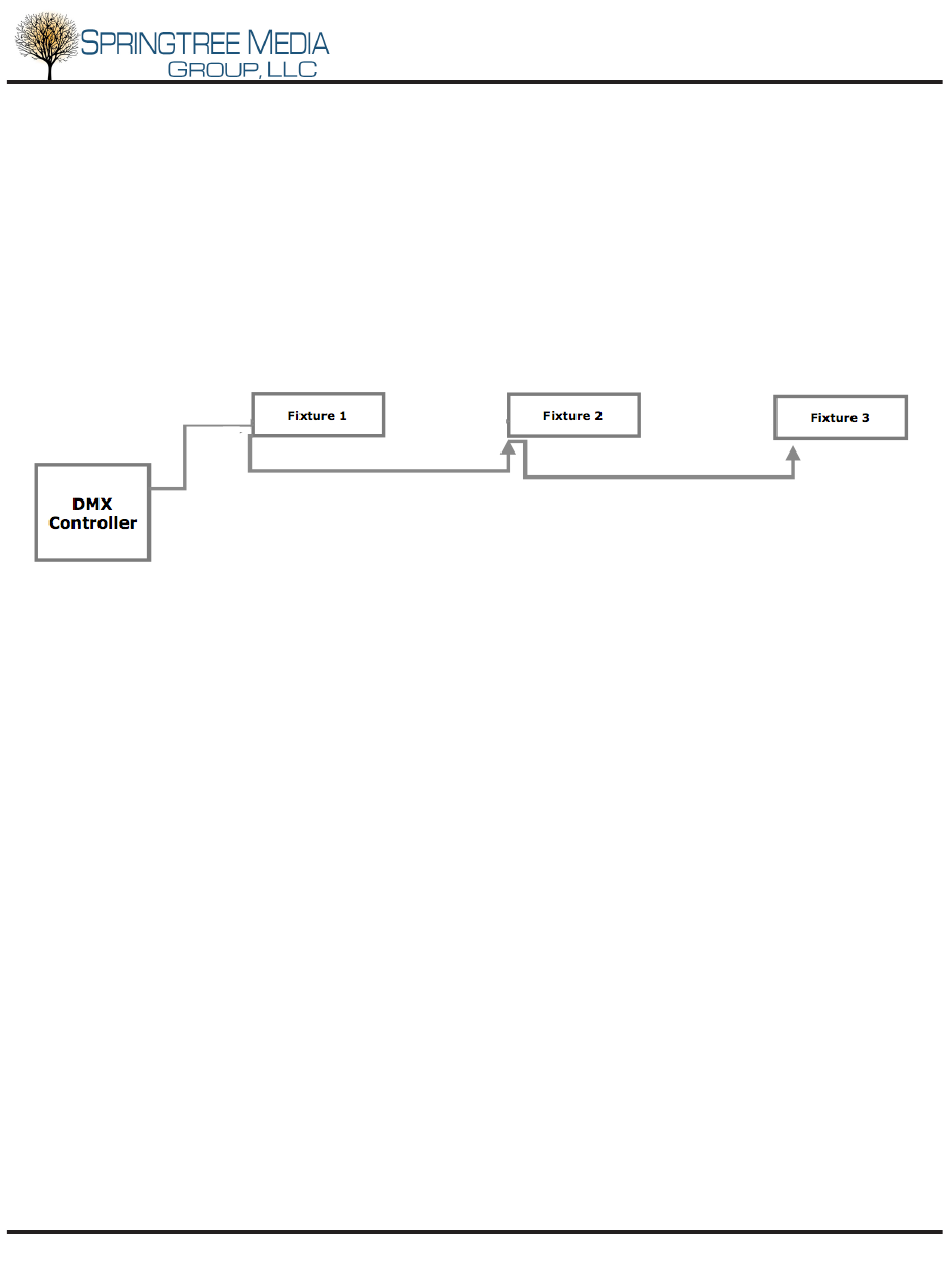

DMX linking

An LED Ellipsoidal can be connected to a DMX controller by a 3-pin XLR cable, allowing total
control over one or more lights. To do this, connect an XLR cable from the DMX-input (labeled DMX
IN) on your lighting unit to the DMX-output of the controller. Connect a second light via its DMX-in-
put to the first unit's DMX-output (labeled DMX OUT) to control and synchronize muiltiple lighting
units at once.

Operation

Touch buttons

There are four touch buttons on the back of this unit: MENU, ENTER, UP and DOWN.. Normally
the LED will display the current DMX address code of the fixture. Press MENU to choose the de-
sired function and press ENTER to confirm.

Operating modes

This light can operate in two modes:
DMX control mode- this function will allow you to control each individual unit with a standard
DMX 512 controller
Master-slave mode- one unit will work as the master in one of the above three modes, and
other units in the chain will work in sychronization towards the master
