Summary of Contents for Springtree P200RGBW LED

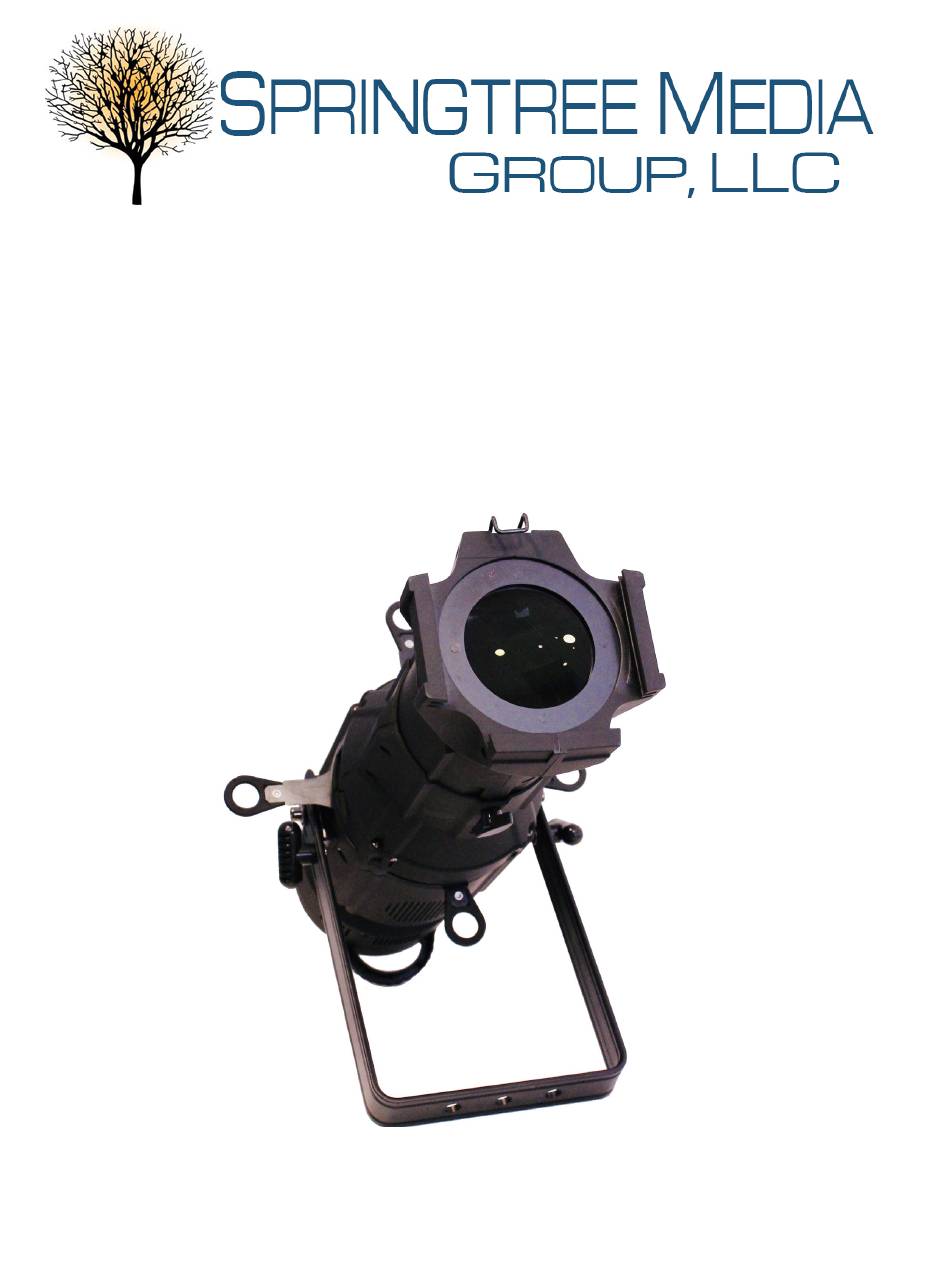

- Page 1 Springtree P200RGBW LED Ellipsoidal USER MANUAL AND INSTALLATION GUIDE...
-
Page 2: Table Of Contents
Power supply..........................5 Mounting............................5 Adjusting the shutters........................6 Using a gobo..........................6 Using a gel or filter........................6 DMX linking..........................7 4. Operation Touch buttons...........................7 Operating modes........................7 LED display menu........................8 DMX Modes..........................8 5. Maintenance Cleaning your ellipsoidal......................8 6. Technical Specifications Beam angles..........................9 Dimensions..........................9 Troubleshooting........................10 Warranty...........................10 Contact us..........................10 (615) 599-1505 www.springtree.net... -
Page 3: Before You Begin
3. One gel frame 4. One Powercon power cord *If any of these items is damaged or missing, please contact Springtree Media Group. Safety precautions • To reduce the risk of electrical shock or fire, do not expose this unit to moisture. • Be sure that the local power outlet matches that of the required voltage for your unit •... -
Page 4: Product Information
Product Information Description The Springtree P200RGBW LED Ellipsoidal is a powerful, versatile fixture with all of the professional features found on higher priced units. Features • 200W RGBW LED COB • Digital Display • Interchangeable 19°, 26°, 36° or 50° lenses • Lightweight 13.6 lb (6.1kg) body •... -
Page 5: Installation
When mounting your ellipsoidal, make sure there is adequate room for ventilation. Operating in an insufficiently ventilated room can lead to an overheating of the device and may cause serious accidents. Keep a minimum distance of 6 inches around and above the device. Before deciding on a location, mount in a way that it will be easy to access the unit for maintenance and addressing. (615) 599-1505 www.springtree.net... -
Page 6: Adjusting The Shutters
(top) Slide the holder into the slots located in front of the lens. Framing shutter When removing the gel and (left) holder, make sure to let it cool before handling. Framing shutter (bottom) Gel frame (615) 599-1505 www.springtree.net... -
Page 7: Dmx Linking
DMX control mode- this function will allow you to control each individual unit with a standard DMX 512 controller • Master-slave mode- one unit will work as the master in one of the above three modes, and other units in the chain will work in sychronization towards the master (615) 599-1505 www.springtree.net... -
Page 8: Led Display Menu
TOUR 7 Channel Mode Version (firmware version) Dimmer Temp (operation temp) Hour (operation hours) Green Fans (off, low, normal, high, auto) Blue ID (off, on) White Power (low, High) Strobe RESET reset fixture to factory default Macro (615) 599-1505 www.springtree.net... -
Page 9: Maintenance
1. Check that the DMX cables are connected properly and are wired correctly. DMX output DMX input 2. Check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected. (615) 599-1505 www.springtree.net... -
Page 10: Technical Specifications
• IP Rating: IP20 • Electronic Strobe: 1-20 flash/s • Environment Temp: -30°C-50°C with single yolk • Display: 4-digit LED • Dimensions(mm): L25.3 x W7.9 x H6.7 • Data In/Out: XLR 3Pin • Net Weight: 13.6 lbs Beam Angles: Dimensions: (615) 599-1505 www.springtree.net... -
Page 11: Warranty
2nd YEAR - Repair/ Replace Springtree discretion. Return shipping covered by customer. Contact us Springtree Media Group would like to thank you for choosing our company for your lighting needs! If you have any questions or concerns, please contact us. Office hours:...
