Adjusting the shutters

To adjust the width and shape of the beam, simply push or pull any of the four shutters
located around the body of the ellipsoidal.

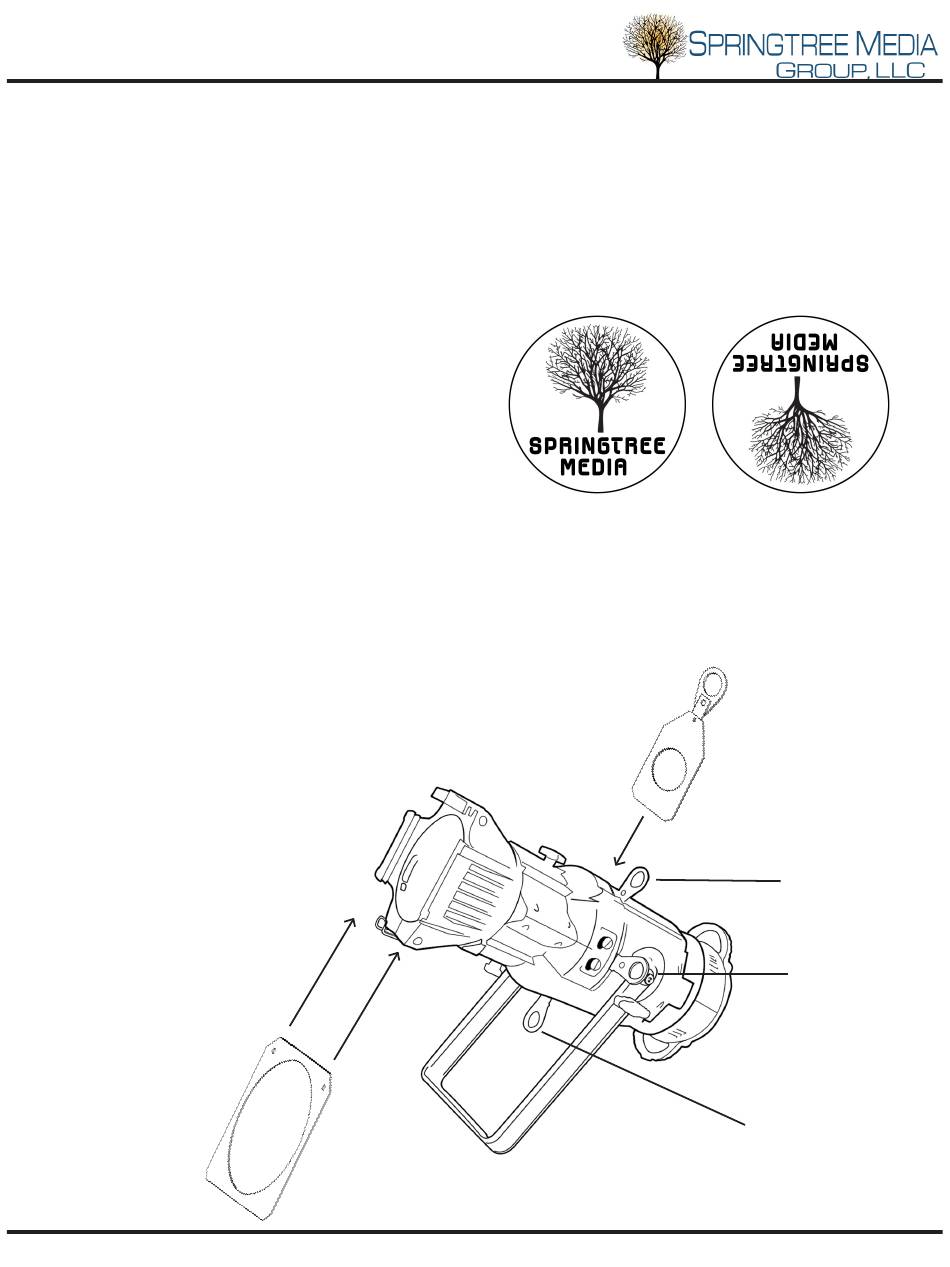

Using a gobo

If you want to shape your light with a gobo,
insert it into the included gobo holder so that it is
visible through the circular hole. In order for your
gobo to be projected correctly, it should be inserted
upside down and flipped. After you've inserted
your gobo into the holder, screw the holder shut
so that the gobo is secure and does not move. Slide the holder into the slot located in front of the
top shutter. When removing the gobo, make sure to let it cool before handling.

Using a gel or filter

To alter the color of your light beam
insert a gel into the included gel frame.
Screw the frame closed so that the
gel is secure and does not move.
Slide the holder into the slots
located in front of the lens.
When removing the gel and
holder, make sure to let it
cool before handling.
6
Gel frame
(615) 599-1505
To look like this
Framing shutter
www.springtree.net
Insert like this
Gobo holder
Framing shutter
(top)
Framing shutter
(left)
(bottom)
