Installation and Service Instructions
MADE in the USA
In the United States, installation must conform with local codes or in
the absence of local codes, with the National Fuel Gas Code, ANSI
Z223.1-latest edition available from American National Standard
Institute. Further reference should be made to the recommendation
of your fuel supplier.
In Canada, installation must conform with local codes or in the
absence of local codes, with Installation Codes for Gas Burning
Appliances and Equipment, CGA Standard CAN/CGA 1-B-149.1 or
2. Further reference should be made to the recommendation of your
fuel supplier.
WARNING:Additions,
service must be performed by an authorized MIDCO
representative, service agency, or the fuel supplier. Use only
MIDCO specifi ed and approved parts.
INSTALLER: Inform and demonstrate to the user the correct
operation and maintenance of the gas utilization equipment.
Inform the user of the hazards of storing fl ammable liquids and
vapors in the vicinity of this gas utilization equipment and remove
such hazards. Affi x this manual and associated literature to the
CODE COMPLIANCE IS THE SOLE
burner.
RESPONSIBILITY OF THE INSTALLER.
USER: Retain this manual for future reference. If other than routine
service or maintenance as described in this manual and associated
literature is required, contact a qualifi ed service agency. DO NOT
ATTEMPT REPAIRS. An inadvertent service error could result in a
dangerous condition.
FOR SERVICE CONTACT
Name: ____________________________________________
Address: ____________________________________________
____________________________________________
Phone: ____________________________________________
Date of Installation: ___________________________________
AVOID ERROR IN PARTS SELECTION. When ordering use complete MIDCO Part Number and Description. Furnish Burner Model Number, Bill
of Material Number and Serial Number (if available) from the specifi cation plate found on the product.
IMPORTANT: Availability of parts as well as specifi cations are subject to change without notice. Please consult factory for item availability.
®
Midco International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel 773.604.8700
fax 866.580.8700
web www.midcointernational.com
e-mail sales@midcointernational.com
changes, conversions,and
SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of special
notations and have standard meanings throughout this manual. They are printed in all capital letters using a bold type
face as shown below, and preceded by the exclamation mark symbol. When you see the safety alert symbol and one of
the safety information terms as shown below, be aware of the hazard potential.
DANGER: Identifi es the most serious hazards which will result in severe personal injury or death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or product and
property damage.
As an ISO 9001 certifi ed company, we proudly design, manufacture and assemble our products in Chicago, Illinois, USA.
Quality Designed for Proven Performance

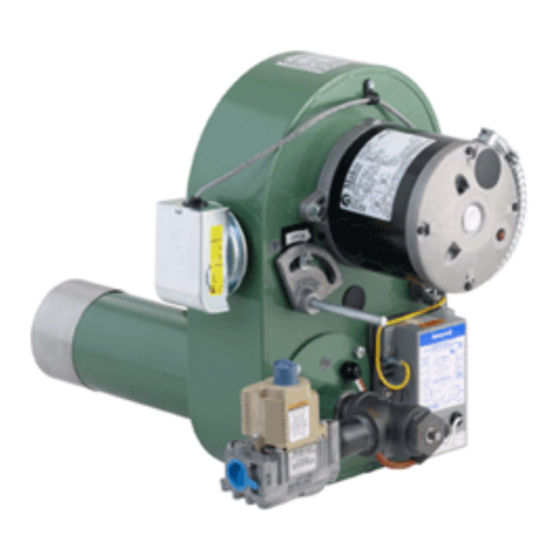

Economite
RE4400DS &
RE4400DSA
Gas Burner
WARNING: If the information in these instructions
is not followed exactly, a fi re or explosion may result,
causing property damage, personal injury or death.
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in
your building.
• Immediately phone your gas supplier from another building
Follow the gas supplier's instructions. If you cannot reach
your gas supplier call the fi re department.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
AVERTISSEMENT. Assurez-vous de bien suivre les instructions
données dans cette notice pour réduire au minimum le risque d'incendie ou
d'explosion pouvant entraîner des dommages matériels, des blessures ou la
mort.
Ne pas entreposer ni utiliser d'essence ni d'autres vapeurs ou liquides
infl ammables à proximité de cet appareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bâtimentoù vous êtes.
• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez
les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service des
incendies.
L'installation et l'entretien doivent être assurés par un installateur ou un service
d'entretien qualifi é ou par le fournisseur de gaz.
BURNER MODEL: ___________________________________
BILL OF MATERIAL
NUMBER: ___________________________________
SERIAL NUMBER #: ___________________________________
WIRING DIAGRAM: ___________________________________
1018
8471 25
