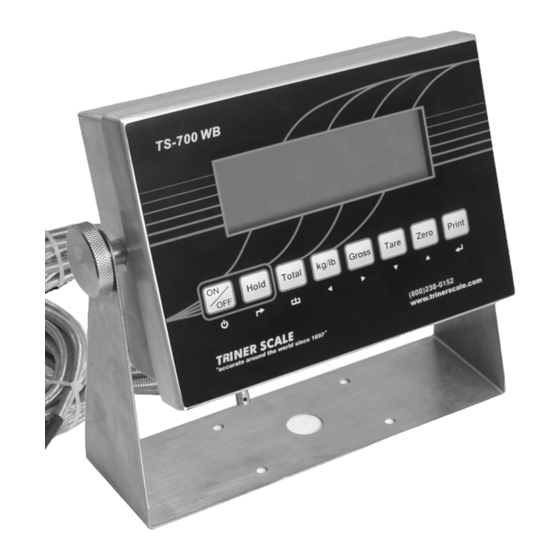

- Page 1 Calibration & Connectivity TS-700 Series Digital Indicators This document supplements the User’s Guide TS-700 MS TS-700 SS TS-700 WB Full Function/Advanced Function Digital Indicator www.trinerscale.com Version 4.0...
- Page 2 Triner Scale & Mfg.Co., Inc. 8411 Hacks Cross Road Olive Branch, MS 38654 (800) 238-0152 www.trinerscale.com © 2013 Triner Scale. All rights reserved.
-
Page 3: Table Of Contents
Calibration & Connectivity | TS-700 Series Table of Contents Specifications...........2 Load Cell Connections ........3 Serial Port Connections ........4 Calibrating a TS-700 Series Indicator....6 Data Output Formats ........12 Error Codes ...........15 Factory Default Settings.........16 !!!! CALIBRATION WARNING !!!! Calibration AND inspection of calibration properties is prohibited unless done so by a qualified scale technician. -
Page 4: Specifications
Calibration & Connectivity | TS-700 Series Specifications TECHNICAL PARAMETERS Resolution ...... Display: 30,000 ADC ........ 2,000,000 Zero stability error ... TK < 0.1μV//K Span stability error ..TK < ± 6 ppm//K Sensitivity (internal)..0. 3 μV /d Input voltage ....-30~30mV DC Excitation circuit .... -
Page 5: Load Cell Connections
Calibration & Connectivity | TS-700 Series Load Cell Connections The indicator can connect with a maximum of eight (8) 350Ω load cells, 4 wire or 6 wire configurations. Excitation voltage for the load cell is 5VDC, the maximum output current is 120mA. -
Page 6: Serial Port Connections
Calibration & Connectivity | TS-700 Series Serial Port Connection RS232 CONNECTION TS-700 MS The RS232 DB9 serial port can be utilized to connect the indicator to a peripheral device such as a printer or remote display, or to interface the indicator with a PC. - Page 7 Calibration & Connectivity | TS-700 Series TS-700 SS The 3-wire terminal block located on the main board can be utilized to connect the indicator to a peripheral device such as a printer or remote display, or to interface the indicator with a PC.
-
Page 8: Calibrating A Ts-700 Series Indicator
Calibration & Connectivity | TS-700 Series Calibrating a TS-700 Series Indicator NOTICE: The TS-700 SS/MS/WB are NTEP Class III Legal for Trade approved and certified. Unlocking the calibration parameters is not allowed by persons other than qualified scale technicians. DEFAULT SETTINGS CAUTION Placing the indicator in calibration mode enables access to the Default Settings Parameter, CO7. - Page 9 Calibration & Connectivity | TS-700 Series Calibration Switch, TS-700 MS: Remove the screws and the back plate of the enclosure. A white-capped calibration switch is located at the bottom left corner of the circuit board. Press the switch fully in and release. This will place the switch in the up position, allowing access to the calibration parameters.
- Page 10 Calibration & Connectivity | TS-700 Series calibration parameters, proceed as follows: CALIBRATION PROCEDURE 1) Power on the indicator. 2) Press the PRINT and HOLD keys. “C” will display. Release the keys. 3) “C01” will display, with the 1 flashing. The indicator is now is Parameter Settings mode.
- Page 11 Calibration & Connectivity | TS-700 Series PARAMETER FUNCTION OPTIONS Default weighing 1 = kg unit 2 = lb Description: With C01 flashing, press the key, then use the up or down arrow keys to change the parameter setting as needed.
- Page 12 Calibration & Connectivity | TS-700 Series Graduations 1 = one unit 2 = two units 5 = five units 10 = ten units 20 = twenty units 50 = fifty units Description: With C03 flashing, press the key, then use the up or...
- Page 13 Calibration & Connectivity | TS-700 Series Calibration 0 = skip calibration 1 = proceed with calibration Description: With C06 flashing, press the key, then use the up arrow key to change the parameter setting to 1. Press the key to proceed.
-
Page 14: Data Output Formats
Calibration & Connectivity | TS-700 Series Data Output Formats REMOTE DISPLAY FORMAT State A Bits: 0,1,2 Decimal point position XXXXXX0 XXXXXXX XXXXX-X XXXX-XX XXX-XXX Bits: 3,4 Division State B BITS FUNCTION Bits0 Gross = 0, net=1 Bits1 Symbol: positive = 0,negative =1... - Page 15 Calibration & Connectivity | TS-700 Series State C Bit1 Bit0 unit Bit2 Kg or lb Bit 3 printing=1 Extend Bit 4 display=1 Constant Bit 5 Constant Bit 6 PC COMPUTER CONTINUOUS SENDING FORMAT Data Weight status: ST = standstill US = not standstill...
- Page 16 Calibration & Connectivity | TS-700 Series SERIAL INTERFACE RECEPTION COMMAND RS232COM serial interface can receive simple ASCII command. Command word and role as follows: Command Name Function TARE Save and clear tare ZERO Zero gross weight PRINT Print the weight G.W/N.W...
-
Page 17: Error Codes
Calibration & Connectivity | TS-700 Series Error Codes ERROR CAUSE SOLUTION 1. Overloaded condition. 1. Reduce the weight. 2. Wrong connection at 2. Check load cell load cell. connection uuuuuu 3. Load cell has quality 3. Inspect load cell. problem. -
Page 18: Factory Default Settings
Calibration & Connectivity | TS-700 Series Factory Default Settings PARAMETER INSTRUCTION DEFAULT Calibration Decimal digits Resolution Max. capacity 10000 Empty calibration Capacity calibration Restore default Warning tone Power-off automatically Power saving mode Hold function Disable kg/lb conversion Upper limit alarm... - Page 19 Calibration & Connectivity | TS-700 Series Zero tracking time Overload range Negative range Standstill time Standstill range Dynamic filter Noise filter Print format Analog signal options 4~20mA testing Relay output setting Reserved Reserved Calibration location gravity 9.7936 Destination gravity 9.7936 Version No.
- Page 20 Triner Scale & Manufacturing Co. Inc. 8411 Hacks Cross Road Olive Branch, MS 38654 (800) 238-0152 www.trinerscale.com...
