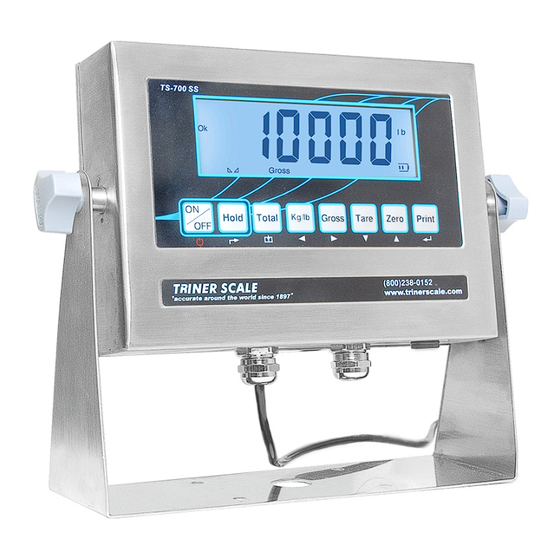

Triner Scale TS 700-SS User Manual

Digital indicator
Hide thumbs Also See for TS 700-SS:

Advertisement

Quick Links

Download this manual See also: Operating Manual
User's Guide

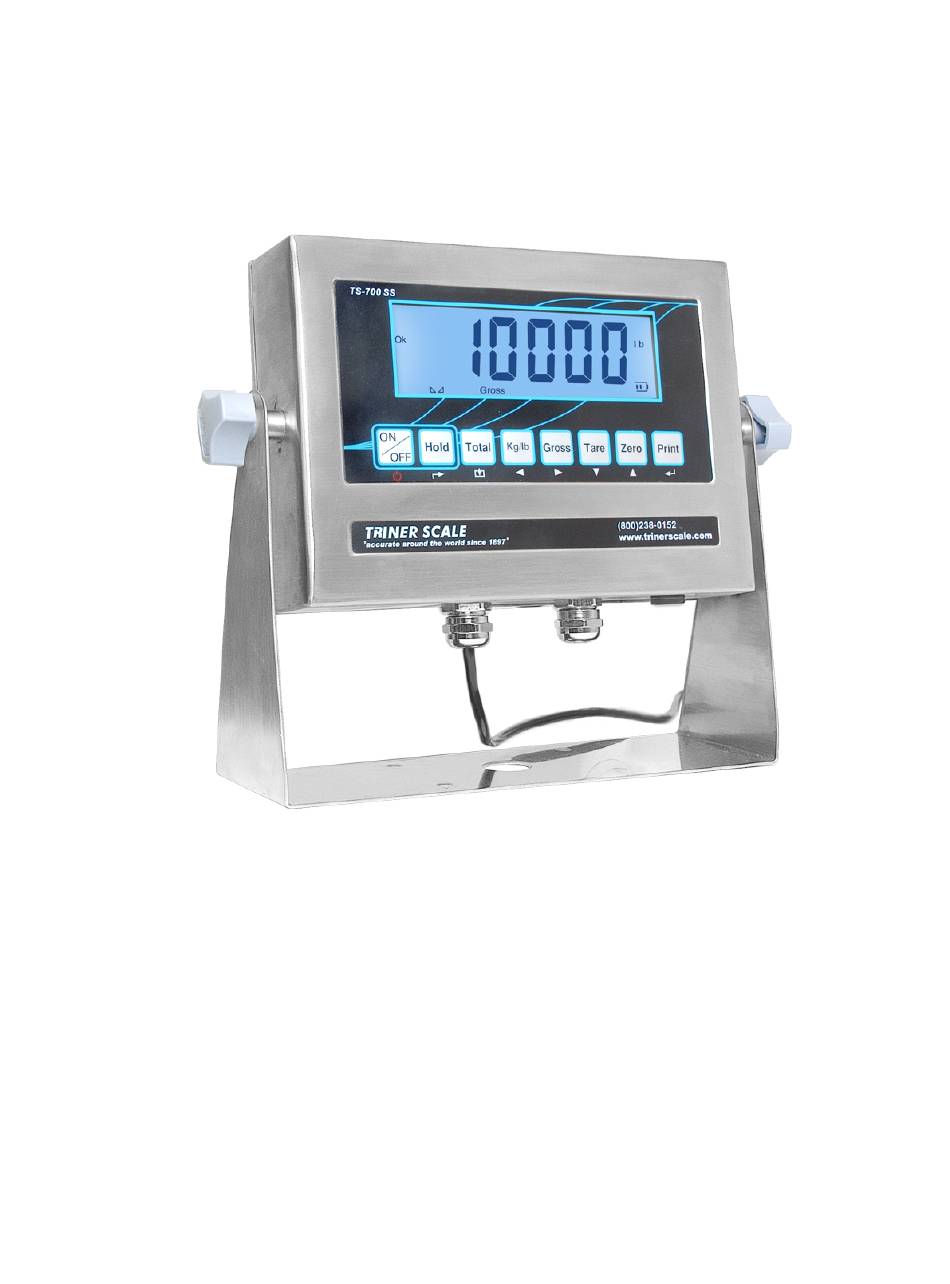

TS 700-SS Digital Indicator
Series 3
Version 3.0 11/15/10
Triner Scale & Mfg. Co., Inc
(800) 238-0152

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS 700-SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triner Scale TS 700-SS

Summary of Contents for Triner Scale TS 700-SS

  • Page 1 User’s Guide TS 700-SS Digital Indicator Series 3 Version 3.0 11/15/10 Triner Scale & Mfg. Co., Inc (800) 238-0152...
  • Page 2 WARNING The indicator is the static and sensitive equipment, cut off the power during electrical connections, internal components touched by hand is prohibited, and please take the measure of anti-static. © 2010 Triner Scale. All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents Specifications __________________________________ 2 Load Cell Connections ___________________________ 3 Serial Port Connections __________________________ 4 Operation ______________________________________ 5 Parameters and Settings _________________________ 7 Data Output Formats ___________________________ 15 Error Codes ___________________________________ 19 Factory Default Settings _________________________ 20...

  • Page 4: Specifications

    Specifications Technical parameters Accuracy class 6000 e Resolution Display: 30, 000 ADC: 2,000,000 Zero stability error < 0.1µV//K Span stability error < ± 6 ppm//K Sensitivity (internal) 0. 3 µV /d Input voltage -30~30mV DC Excitation circuit 5 VDC, 4 wire connection, Load Cell Max 8 load cell of 350Ω...

  • Page 5: Load Cell Connections

    Load Cell Connections The indicator can connect with a maximum of eight of 350Ω load cells, 4 wire or 6 wire configurations. Excitation voltage for the load cell is 5VDC, the largest output current 120mA. Terminal Block on Circuit Board: Circuit Board Terminals Load cell +EXC...

  • Page 6: Serial Port Connections

    Serial Port Connection RS232 Terminal on Circuit Board Definition Function Sending data Receiving data Ground interface Note: if RS485, The connection pin is 2 and 5 pin.

  • Page 7: Operation

    Operation Keys and Their Functions OPERATION / FUNCTION On/Off Press and hold for 2+ seconds to operate. To Hold Weight on Scale - With weight on scale, press key to hold weight. To Hold Peak Weight of Multiple Weighings Hold - Without weight on scale, press key to put indicator in peak hold mode.
  • Page 8 item on scale, press Total to add weight to total weight and total count. - To view totals, press Total and Print key at the same time. The total weight will flash continuously. - To go out of view totals mode, press and hold the Total key.

  • Page 9: Parameters And Settings

    Parameters and Settings CAUTION: Use care when accessing and adjusting your indicator’s parameters. Several parameters can be accessed that, if altered, will change your indicator’s operations. To access and adjust the TS-700 SS parameters: Press the PRINT and HOLD keys. “C” will display. Release the keys. “C08”...
  • Page 10 Function Setting Parameter Parameters Settings Options: Warning tone 0 = no warning tone 1 = warning tone on Options: 0 = no auto power off 10 = power off automatically if no Automatic change within 10 minutes. 30 = power off automatically if no power off change within 30 minutes.
  • Page 11 Lower limit alarm value Inner Code Enter C15 to check the inner display code. Enter C16, set the date, from left Date to right: year/month/day Date and time Enter C17, set the time from left Time to right: hour/min./sec. Options: 0 = Close serial interface data output 1 = Continuous sending, connect...
  • Page 12 1 = ±1% max capacity 2 = ±1% max capacity 5 = ±1% max capacity 10 = ±1% max capacity 20 = ±1% max capacity Options: 0 = disable zero tracking 0.5 = ±0.5d 1.0 = ±1.0d 2.0 = ±2.0d Automatically zero 3.0 = ±3.0d 4.0 = ±4.0d...
  • Page 13 Standstill time Options: Standstill time 0 = quick CAUTION; 1 = medium Changing these parameters will 2 = slow effect the indicator’s Options: performance. Standstill range 1 = 1d 2 = 2d 5 = 5d 10 = 0d (d = division) Digital filter Options: To compensate for...
  • Page 14 Relay output C33 Relay output C33 = 0 close relay output C33 = 1 Open relay output setting function 1 C3 = 2 Open relay output function2 C33 = 3 Preserved menu Mutli C34 Communication C34 = 0~99 Add. Code communication add.

  • Page 15: Data Output Formats

    Data Output Formats Remote Display Format Output continuous format State A Bits0,1,2 Decimal point position XXXXXX0 XXXXXXX XXXXX．X XXXX．XX XXX．XXX Bits3,4 Division State B BitsS function Bits0 gross=0, net=1 Bits1 Symbol: positive =0,negative =1 Bits2 Overload(or under zero)=1 Bits3 dynamic=1 Bits4 unit：lb=0, kg=1 Bits5...
  • Page 16 Bit2 Bit1 Bit0 unit Kg or lb Bit 3 printing=1 Extend Bit 4 display=1 Bit 5 Constant 1 Bit 6 Constant 0 PC Computer Continuous Sending Format Data weight status, ST= standstill, US= not standstill, OL= overload weight mode, GS=gross mode, NT=net mode weight of positive and negative, “+”...
  • Page 17 R command receive data format 5.4 Print format ID.NO. 004 （Serial No.） Date: XX.XX. XX (yy.mm.dd) Time: XX.XX.XX (hh.mm.ss) GROSS 8.88kg (gross weight) TARE 2.88kg （tare） 6.00kg （net weight） 5.5 PC or Big display continuous sending format...

  • Page 19: Error Codes

    Error Codes ERROR REASON SOLUTION 1. Overload 1. reduce the weight 2. wrong connection 2. check load cell connection 3. inspection load cell. Check with load cell UUUUUU 3. load cell has quality the input and output problem. 1. calibration is no 1.

  • Page 20: Factory Default Settings

    Factory Default Settings Parameter instruction Default Calibration Decimal digits Resolution Max. capacity 10000 Empty calibration Capacity calibration Restore default Warning tone Power-off automatically Power saving mode Hold function Prohibit kg/lb conversion １ Upper limit alarm 000000 Under limit alarm 000000 Inner code Date setting Time setting...
  • Page 21 Initial zero Zero tracking range 0．5 Zero tracking time Overload range Negative range Standstill time Standstill range Dynamic filter Noisy filter Print format Analog signal options 4~20mA testing Relay output setting Muti communication add. Wireless communication channel Calibration location gravity 9.7936 Destination gravity 9.7936...
