PowerTraveller POWERCHIMP 4A Quick Start Manual page 2

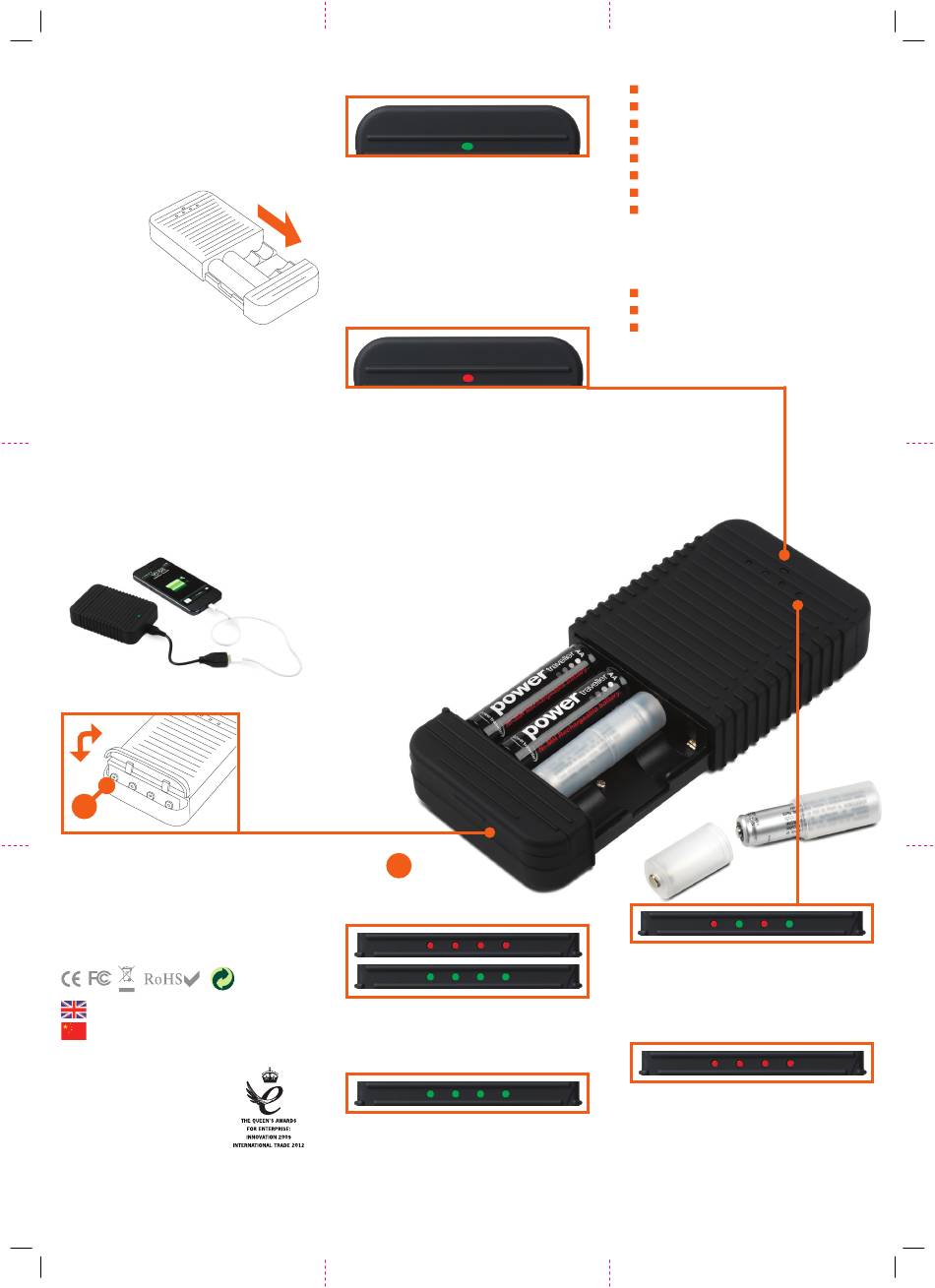

How to open the unit
If the unit is closed, hold the back of the unit
firmly in one hand, so the lights are at the top,
grip both sides of the bottom of the unit with
your other hand and pull the top and bottom
sections apart.
Please note: Always remove cable before
you open the unit.
recharging 5V devices
via micro US
To recharge a 5V USB device (Smartphone, GPS,
SatNav, etc) from the powerchimp 4A, attach
the micro USB to female USB cable (3) to the
powerchimp 4A (1) and use the USB cable that
came with your device to attach to the female
USB socket (3).
You can also use standard AA batteries to
recharge 5V USB devices.
4
Tips and other Powertraveller products
can be purchased from
www.powertraveller.com
For customer support, email us at
support@powertraveller.com
powerchimp is a registered trademark of
Powertraveller Limited registered in the UK and Europe.
Designed and developed in the UK
Engineered and made in China
POWERTRAvELLER LIMITED
Ceratech House, Omega Park,
Wilsom Road, Alton, Hampshire
GU34 2QE, UK
t +44 (0) 1420 542980
info@powertraveller.com
www.powertraveller.com
iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and
other countries.
"Made for iPod," and "Made for iPhone," mean that an electronic accessory
has been designed to connect specifically to iPod or iPhone, respectively,
and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that the use
of this accessory with iPod or iPhone may affect wireless performance.
AW_PTL_4A_UserGuide_V2.indd 2
Single LED output light
When the powerchimp 4A is charging a 5V
device and the female USB to micro USB cable
(3) is still attached, the single LED output light
at the top of the unit will illuminate solid green.
This is not an indication of the device being
fully charged.
Please note: You must always remove the
cable when you are not using the powerchimp
4A to conserve the battery's power.
When the single LED output light turns from
solid green to solid red while you are charging a
device, this indicates that the battery capacity is
getting low and it needs recharging.
If the output light illuminates solid red or does
not show any light when the female USB to
micro USB cable still attached, this means the
wrong battery is being used or it is the wrong
polarity. Please check the batteries are inserted
correctly and remove cable to protect batteries
from over-discharging. It can also mean that the
batteries are low and that they need recharging.
6
LED charging indicators
The row of four LED input indicator lights will
light up first red then green; this will repeat three
times. Then the red light will light up once to
determine which slots are in use.
Once the battery inside each compartment is fully
charged, the corresponding LED will turn green.
Disclaimer: powerchimp is a registered trademark of Powertraveller Limited registered in the UK and Europe. Extreme weather conditions
TM
can affect battery efficiency. Do not open the casing or make any attempt to disassemble or modify the device as this will invalidate the
warranty/guarantee. This may also result in the risk of fire, personal injury or damage to personal property. Keep out of reach of children at all
times. Small parts can cause choking if swallowed. The information contained in this user manual is, to the best of our knowledge, true and
accurate at the time of publication and is provided for information purposes only. Powertraveller accepts no liability for any loss or damage
arising as a result of use or reliance on this information.
PowErCHimP 4A PArAmEtErS:
Input port: Micro USB
Output: Standard USB
Input: 5V 1A
Output: 5V 800mA
Weight (without batteries): 76g
Weight (with batteries): 176g
Dimensions: 65 x 98 x 22mm
powerchimp 4A full kit weight: 315g
(90x130x50mm)
rECHArgEABLE BAttEriES
PArAmEtErS:
Chemistry Ni-MH (Nickel metal hydride)
Capacity AA 1800mAh 1.2V
Compliance IEC 61436-98
Caution: Do not dispose of batteries in fire, do not connect (+)
and (-) with metal wire, do not directly solder anything to the
battery, do not mix with other type of batteries when charging.
Do not store batteries under high temperature or high humidity.
Due to its independent charging feature, each
battery is charged independently. A red solid
light indicates that the corresponding battery
channel is charging. When the indicator light
is not illuminated, the corresponding battery
compartment is empty.
When non-rechargeable batteries are used, the
corresponding LED input light will flash red slowly.
You can only recharge rechargeable batteries. If
batteries short-circuit, the input light will flash quickly.
