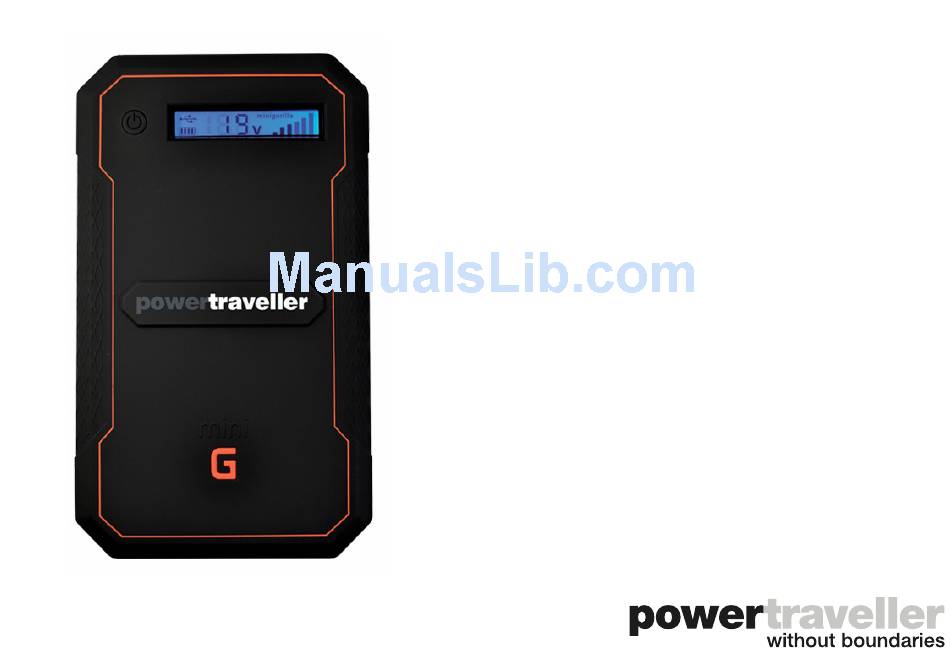

Page 1: User Guide

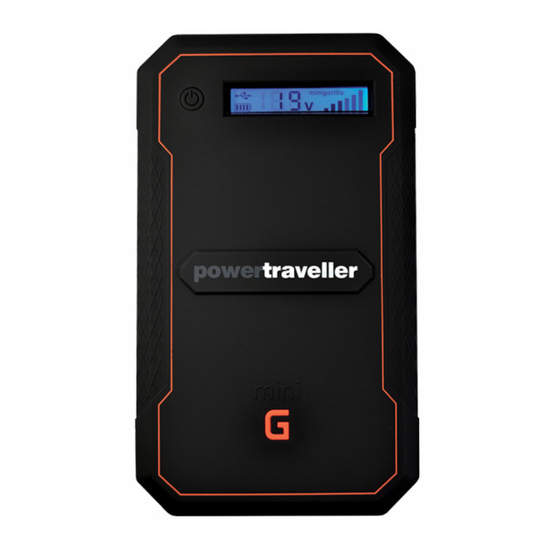

MINI-G RUGGED HIGH TECH 5V TO 19V CHARGER USER GUIDE YOU CAN: CHARGE NETBOOKS SLR CAMERAS TABLETS GOPROS SMARTPHONES GPS GAMES CONSOLE SMARTWATCHES AND MORE... -
Page 2: Table Of Contents
Dimensions, capacity and output currents mini-g diagram LCD screen Diagram descriptions Using the mini-g 1. Turning on the mini-g 2. Recharging the mini-g 3. Charging devices via DC 4. Charging devices via USB 5. Permanent USB on mode 6. Permanent DC on mode 7. -
Page 3: What's In The Box
IN THE BOX • mini-g portable charger • 19V universal AC mains charger • DC out cable • Micro USB cable • Connector tip pack • Female 12V socket ADDITIONAL EXTRAS AVAILABLE • Gorilla-pad (converts the DC out port to USB 3A) •... -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS Parameters Description Weight 323g Capacity 12,000mAh (44Wh) Cells 2 x 6,000mAh Dimensions (L*W*H*) 190 x 110 x 18mm Battery type Lithium Polymer rechargeable DC 19V Input Output 2 x 5V USB, DC: 12V, 16V, 19V Dual USB sockets Combined 3A Working temperature -20°... -
Page 5: Dimensions, Capacity And Output Currents
DIMENSIONS 190mm 110mm 18mm 110mm 190mm 18mm CAPACITY & DC OUTPUT CURRENTS Voltage 5V USB 8,800 3,600 2,750 2.25A 2,300 1.9A *split via 2 USB ports... -
Page 6: Mini-G Diagram
MINI-G DIAGRAM... -
Page 7: Lcd Screen
LCD SCREEN DIAGRAM... -
Page 8: Diagram Descriptions
DIAGRAM DESCRIPTIONS 1. DC IN Input from: 12-19V Max (1.5 - 4A) DC 5.5 x 2.1mm 2. USB SOCKETS 1&2 Combined 3A 3. DC OUT DC 4.7 x 1.7mm 12V, 16V, 19V 4. ON/OFF BUTTON To turn the unit on or off, hold down the button for 3 seconds. The on/off button also enables the user to select the correct output voltage to charge their device. - Page 9 14. LEVEL OF CHARGE The level of charge remaining in your mini-g is shown by the vertical bars. A fully charged mini-g will be denoted by six solid vertical bars. As the six bars decrease, available power decreases.
-
Page 10: Using The Mini-G
USING THE MINI-G 1. Turning on the mini-g • To turn on the mini-g, hold down the on/off button (4) for 3 seconds. Repeat this to turn the unit off. 2. Recharging the mini-g • You can recharge the mini-g via the universal AC mains charger supplied (6) with the appropriate plug head into an electrical wall socket. -
Page 11: Charging Devices Via Usb
4. Charging devices from mini-g via USB out port 2A • Turn the mini-g on by holding down the on/off button (4) for 3 seconds. • Select the micro USB to USB cable (8) or your devices’ own USB sync/charging cable. -
Page 12: Ups Feature
8. Daisy chain feature • When using the 19V AC mains charger (6) to charge the mini-g, the DC out port (3) will be set at 19V. This will enable you to charge your netbook for example and mini-g at the same time. -
Page 13: Frequently Asked Questions
Yes, the mini-g comes 30% pre-charged and is ready to use straight out the box. However, we do recommend full charging It will automatically turn off after 1 minute. the mini-g within 7 days of receiving it, and at least once every 4 months thereafter. •... -
Page 14: Product Disposal Instructions
LCD screen (5). While in this mode the DC out will classed as Electrical or Electronic Equipment and should not be disposed not function. This is so the mini-g collects as much power as with other household or commercial waste at the end of its working life. - Page 15 MINI-G POWERTRAVELLER INTERNATIONAL LIMITED 4 Delta Park, Wilsom Road, Alton, Hampshire GU34 2QE, UK t: +44 (0) 1420 542980 info@powertraveller.com www.powertraveller.com...
