How to charge
rechargeable batteries
using powerchimp 4A
This useful, innovative and unique battery
charger will recharge up to 4 x AA, 4 x AAA
rechargeable batteries or a mixture of the two
at any one time, thanks to its independent
charging features.
Via USB
Attach the powerchimp 4A (1) to a computer
using the supplied USB to micro USB charging
cable (2).
Via solar panel
Attach the powerchimp 4A (1) to a solargorilla
or powermonkey extreme solar panel using the
supplied USB to micro USB charging cable (2).
Please note, powerchimp 4A is not suitable for
use with solarmonkey adventurer.
The powermonkey extreme solar panel and
solargorilla will take between 12 to 24 hours to
fully charge the powerchimp 4A.
Via other Powertraveller
devices
The powerchimp 4A can also be connected to
other Powertraveller devices to charge. Attach
the powerchimp 4A (1) to either the powergorilla
or minigorilla (via 5V USB socket) using the
supplied USB to micro USB charging cable (2).
The powermonkey extreme, minigorilla and the
powergorilla take approximately 10 hours to fully
charge the powerchimp 4A.
AW_PTL_4A_UserGuide_V2.indd 1
2 3
1

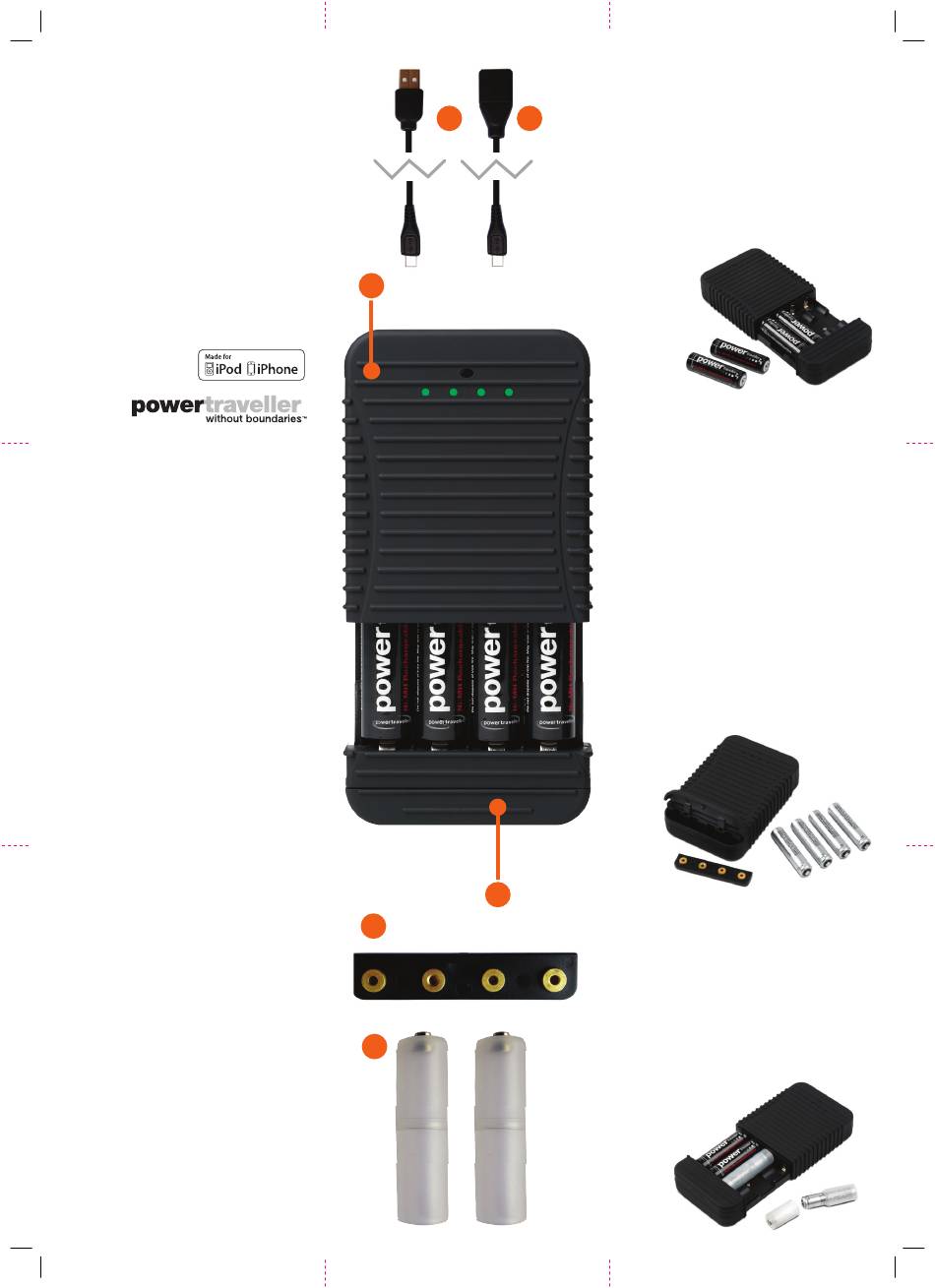

powerchimp 4A unit
6 converter
compartment
4
5
Charging AA
rechargeable batteries
To charge AA batteries, simply slide open
the unit and slot the batteries into the cradle
according to the polarity shown in the
picture below. Due to the powerchimp 4A's
independent charging feature, you can charge
up to four batteries at the same time and the
4 LED charging indicators will tell you when
each battery is fully charged (Please see LED
charging indicators for details of how the
lights work).
Charging AAA
rechargeable batteries
using the AA to AAA
battery converter
If you wish to recharge 4 x AAA batteries at
the same time, the kit contains an AA to AAA
battery converter that is stored securely within
a small compartment (6) at the base of the
powerchimp 4A unit (1). With the lights on the
top, simply place your thumb over the small
notch at the bottom of the unit and lift the small
flap. Tip the battery converter out from the
compartment. Remove the 4 x AA batteries
from the cradle. Insert the converter into
the top of the battery tray along the positive
terminal and then insert your AAA batteries.
Always store the converter in the compartment
when not in use.
Please note: AAA rechargeable batteries are
NOT included.
Charging different size
rechargeable batteries
at the same time
You do not even need to charge the same make
of battery at the same time as the powerchimp
4A device will charge any make or model of AA
or AAA rechargable batteries simultaneously
using the 2 x AAA to AA battery adaptor tubes
provided (5).
Please note: AAA rechargeable batteries are
NOT included.
+
-
