HP AdvanceStack Switch 2000 Quick Reference page 19

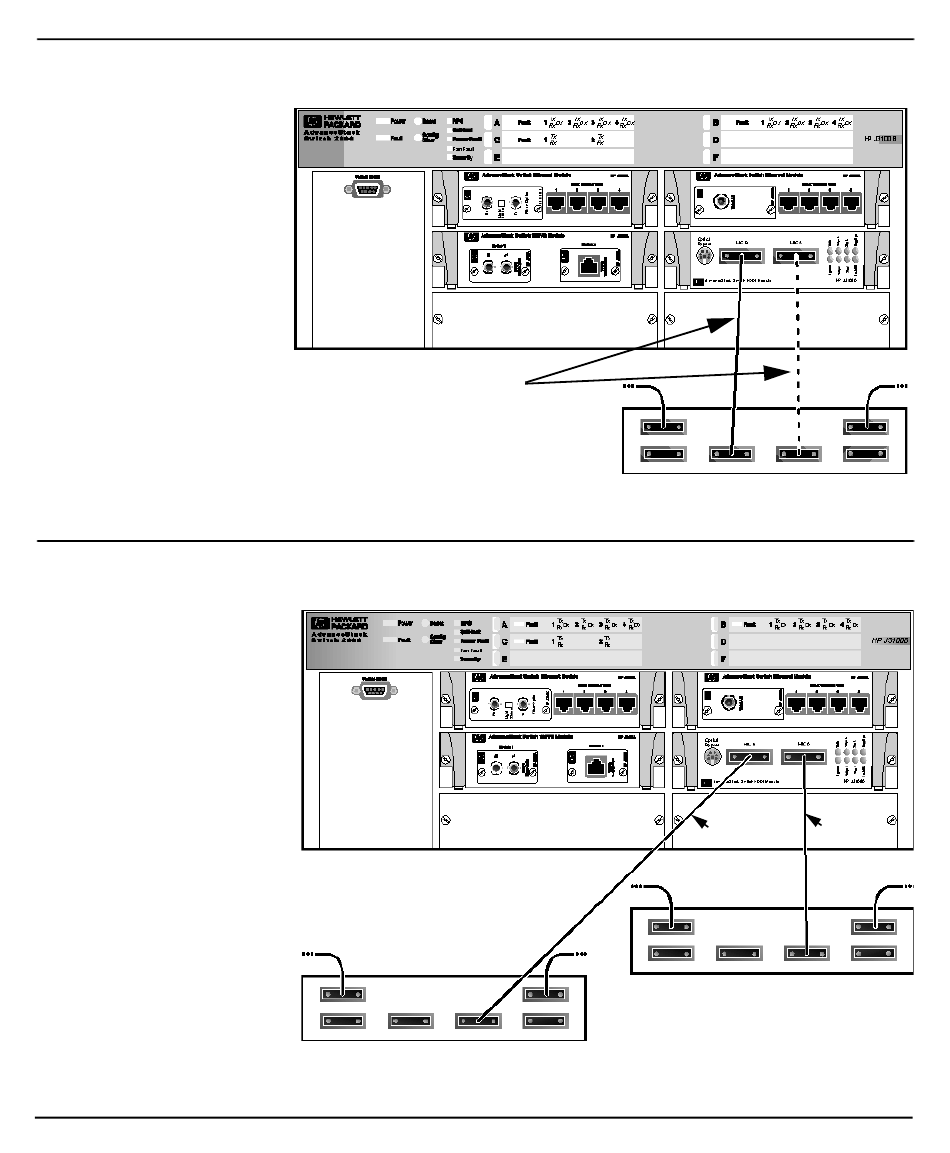

Example of the Switch 2000 as a Single-Attachment Station (SAS)
Example of the Switch 2000 as a Dual-Homed Station
Note: The connection to the
secondary concentrator operates
only if the connection to the primary
concentrator becomes disabled.
Connect Either MIC A or MIC B to
any M Port on a Concentrator
FDDI Concentrator
(shown as a dual-attach
device)
Connect MIC A and MIC B to any M
Port on Separate Concentrators
B
M
M M
Primary FDDI Concentrator
B
M
B
M
Secondary FDDI Concentrator
A
M
FDDI Connectivity
A
M M
M
8‚yw
8‚yw
EA5 3
EA5 4
A
M M
M
19
