Training Bulletin
August 2018
Bake and Broil
reaches approximately 250F.
If the selected bake or broil function operates briefly, then shuts down, the problem is not
likely with the ERC. A problem may exist with the cooling blower motor or the motor wiring.
Models affected:
CGS986EEL, CGS986SEL, C2S986SEL, CHS985SEL, PGS930BEL,
PGS930FEL, PGS930SEL, P2S930SEL
Serial numbers: All
Repair Procedure:
1. Cycle power to range. Press and hold '2' and 'Broil' simultaneously for three seconds to
enter Fault Retrieval Mode. Press '1' to display stored faults. Fault code F350 or F352
will likely be displayed. This indicates the ERC has detected that the cooling fan blower
wheel is not turning, or turning too slowly.
2. Enter the ERC's Test Mode by pressing and holding '1' and 'Broil' for three seconds.
Pulse the cooling blower at low speed by pressing '3'. If blower wheel, which is visible
through the vent trim at rear of maintop, fails to turn, service is required.
3. DISCONNECT POWER. (LOTO) Remove:
• Grates and top burners (if so equipped)
• Rear spacer-to-wall trim
• RJ45 connector from square hole
in upper corner of rear wire cover
with a flat screwdriver
• Backguard complement strip and
upper rear wire cover
• Vent trim
• Maintop

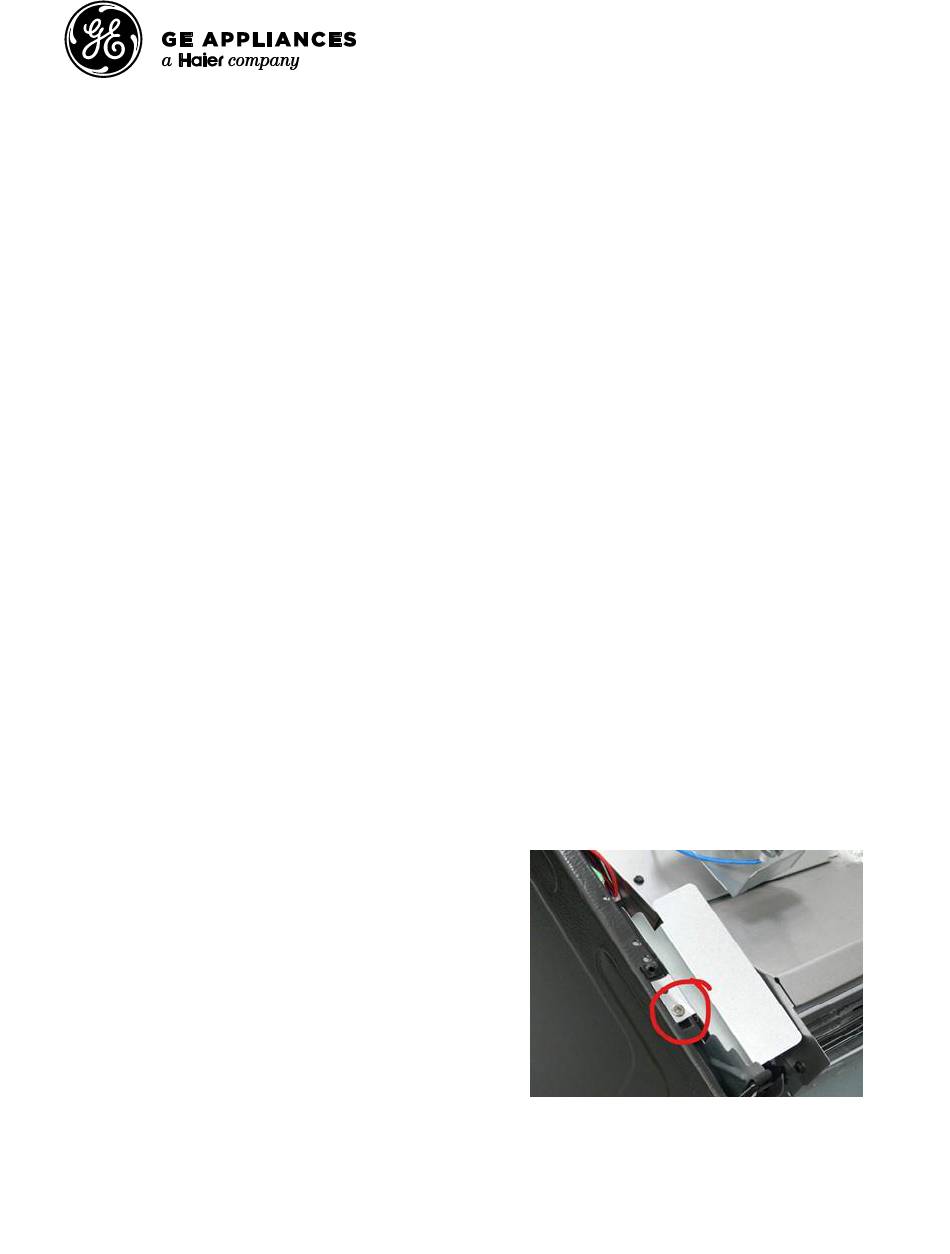

• Fan motor spill guard to access the motor's electrical connections (see picture
above)
operations shut down when temperature
Front Control Gas Ranges
1
TB16-18
continued...

Advertisement

loading

  Related Manuals for Haier GE CGS986EEL

  Summary of Contents for Haier GE CGS986EEL

  • Page 1 Training Bulletin TB16-18 Front Control Gas Ranges August 2018 operations shut down when temperature Bake and Broil reaches approximately 250F. If the selected bake or broil function operates briefly, then shuts down, the problem is not likely with the ERC. A problem may exist with the cooling blower motor or the motor wiring. Models affected: CGS986EEL, CGS986SEL, C2S986SEL, CHS985SEL, PGS930BEL, PGS930FEL, PGS930SEL, P2S930SEL...
  • Page 2 4. Check for foreign objects in the blower wheel. The wheel should rotate freely by hand without noise or undue friction. Be sure nothing is pressing against the red hub on the end opposite the motor. Re-route any wires, such as the RJ45 connector leads, that may lie in contact with the motor shaft.
  • Page 3 8. If line voltage is present, the BLOWER TANGENTIAL – WB26X29060 will have to be replaced. Normally, the original green circuit board attached to blower motor will be good and can be reused. 9. DISCONNECT POWER. Loosen the upper rear splash guard. Remove the three Hex- head screws circled below to loosen side panel.
  • Page 4 13. Replace: •Hex-head screws in side panel and the Phillips screws in rear splash guard •Motor spill guard •Maintop •Vent trim •RJ45 connector to square hole of rear wire cover •Backguard complement strip and rear wire cover •Rear spacer-to-wall trim •Top burners and grates.
