320-6Ga Machine Base Assembly - Huvema HU 320 UM TOPLINE Manual

6.17 320-6Ga M

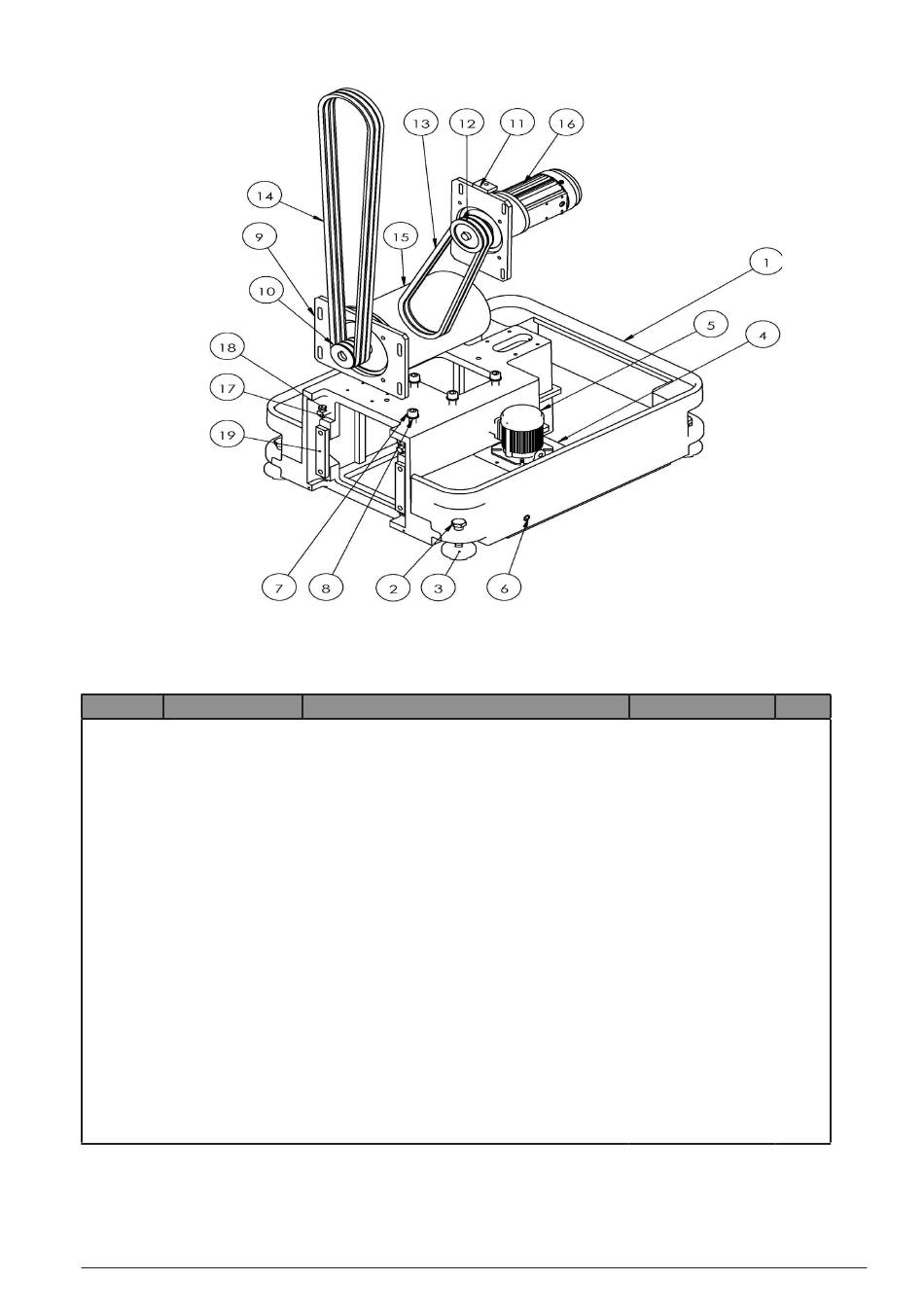

320-6GA Machine Base Assembly part List
No. Index No. Part No. Part No.
Index No. Part No.
1 ............... UM34001-01 ............ Machine Base ...................................................... ..................................... 1
1 ............... UM34001-01 ............ Machine Base ...................................................... ..................................... 1
2 ............... B504 ........................ Leveling Bolt ........................................................ M20xP2x80L ............... 4
2 ............... B504 ........................ Leveling Bolt ........................................................ M20xP2x80L ............... 4
3 ............... UM44009-01 ............ Leveling Pad ........................................................ ................................... 4
3 ............... UM44009-01 ............ Leveling Pad ........................................................ ................................... 4
4 ............... UM44012 ................. Coolant Stand ...................................................... ..................................... 1
4 ............... UM44012 ................. Coolant Stand ...................................................... ..................................... 1
5 ............... AB-25TH .................. Coolant Pump ...................................................... 0.09KW,400V .............. 1
5 ............... AB-25TH .................. Coolant Pump ...................................................... 0.09KW,400V .............. 1
6 ............... OCS-PT1/2 .............. Oil Plug ................................................................ 1/2"PT .......................... 1
6 ............... OCS-PT1/2 .............. Oil Plug ................................................................ 1/2"PT .......................... 1
7 ............... SHO16L60 ............... Hex Socket Cap Screw ........................................ M16x60L ...................... 6
7 ............... SHO16L60 ............... Hex Socket Cap Screw ........................................ M16x60L ...................... 6
8 ............... WS16 ....................... Spring Washer ..................................................... M16.............................. 6
8 ............... WS16 ....................... Spring Washer ..................................................... M16.............................. 6
9 ............... UM33030 ................. Motor Mounting Plate .......................................... ..................................... 1
9 ............... UM33030 ................. Motor Mounting Plate .......................................... ..................................... 1
10 ............. UM33023 ................. Pulley ................................................................... 3A .............................. 1
10 ............. UM33023 ................. Pulley ................................................................... 3A .............................. 1
11 ............. UM33021-01 ............ Feeding Motor Plate ............................................ ................................... 1
11 ............. UM33021-01 ............ Feeding Motor Plate ............................................ ................................... 1
12 ............. UM33022 ................. Feeding Motor Pulley ........................................... 2A ................................ 1
12 ............. UM33022 ................. Feeding Motor Pulley ........................................... 2A ................................ 1
13 ............. A2- 44 ...................... V-Belt ................................................................... A 44" ............................ 2
13 ............. A2- 44 ...................... V-Belt ................................................................... A 44" ............................ 2
14 ............. A3-81 ....................... V-Belt ................................................................... A 81" ............................ 3
14 ............. A3-81 ....................... V-Belt ................................................................... A 81" ............................ 3
15 ............. UM34004 ................. Induction Motor .................................................... 2.2KW,4P .................... 1
15 ............. UM34004 ................. Induction Motor .................................................... 2.2KW,4P .................... 1
16 ............. UM34005 ................. Feeding Motor ..................................................... G322-1/5-0.4KW ......... 1
16 ............. UM34005 ................. Feeding Motor ..................................................... G322-1/5-0.4KW ......... 1
17 ............. UM44032 ................. Tension Screw ..................................................... M20xP2.5x55L ............ 2
17 ............. UM44032 ................. Tension Screw ..................................................... M20xP2.5x55L ............ 2
18 ............. SNH10L30 ............... Hex Bolt ............................................................... M10x30L ...................... 2
18 ............. SNH10L30 ............... Hex Bolt ............................................................... M10x30L ...................... 2
19 ............. UM34008 ................. Motor Plate .......................................................... ..................................... 2
19 ............. UM34008 ................. Motor Plate .......................................................... ..................................... 2
20 ............. NH20 ....................... Hex Nut ................................................................ M20xP2.5 .................... 2
20 ............. NH20 ....................... Hex Nut ................................................................ M20xP2.5 .................... 2
................. 320-6GA-S01 ........... Universal Crank System ...................................... ..................................... 1
................. 320-6GA-S01 ........... Universal Crank System ...................................... ..................................... 1
................. 320-6GA-S02 ........... Z axis Transmission System................................ ..................................... 1
................. 320-6GA-S02 ........... Z axis Transmission System................................ ..................................... 1
46

320-6GA Machine Base Assembly

320-6GA Machine Base Assembly
b a
aCHine ase sseMbly
320-6GA Machine Base Assembly part List
320-6GA Machine Base Assembly part List
Description Description
Description
CHANGES AND TYPING ERRORS RESERVED
18
18
Size Size Qty Qty
Size Qty
