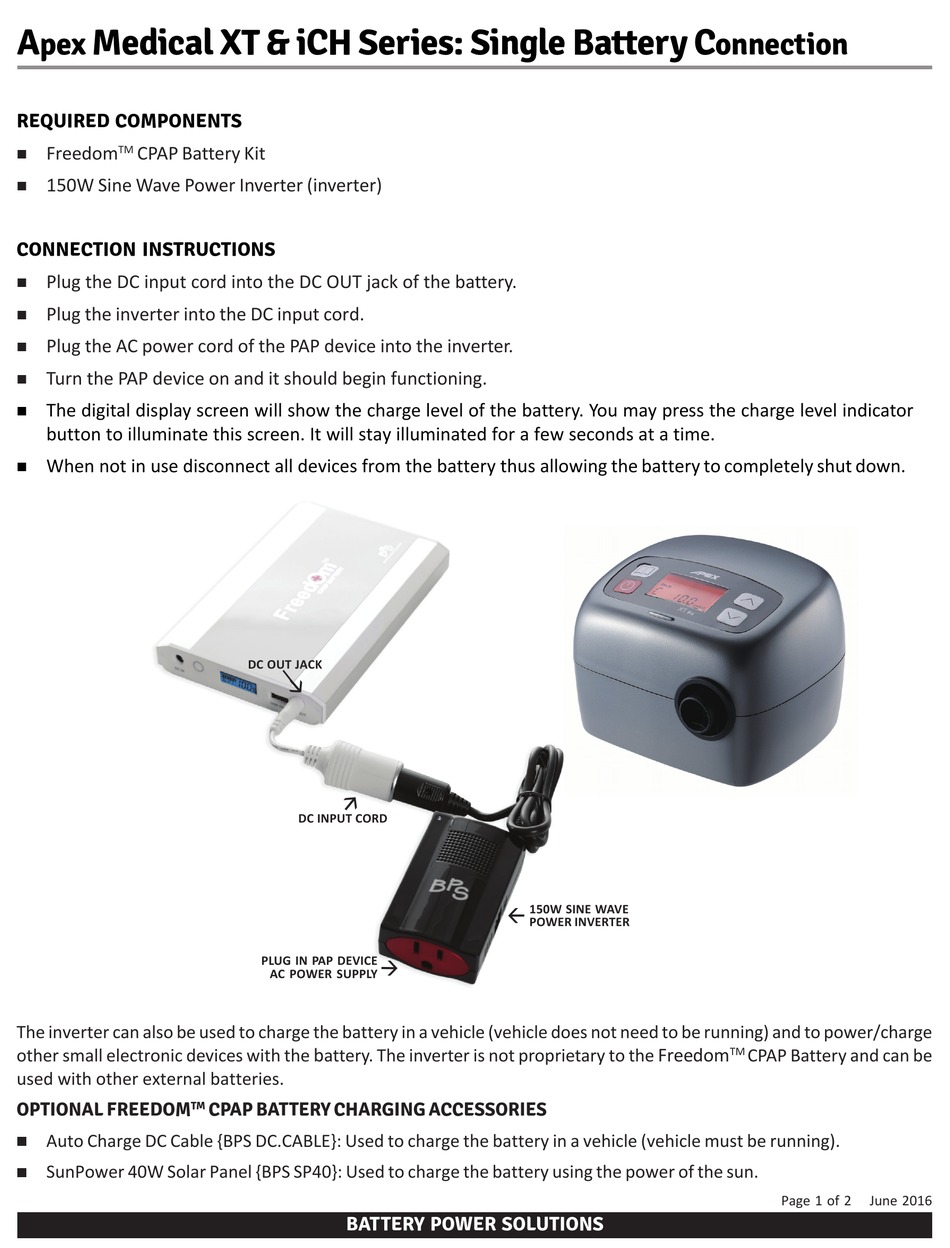

Apex Medical XT Series Manual

A Medical XT & iCH Series: Single Battery C
pex
Required Components
Freedom TM CPAP Battery Kit

150W Sine Wave Power Inverter (inverter)

Connection Instructions
Plug the DC input cord into the DC OUT jack of the battery.

Plug the inverter into the DC input cord.

Plug the AC power cord of the PAP device into the inverter.

Turn the PAP device on and it should begin functioning.

The digital display screen will show the charge level of the battery. You may press the charge level indicator

button to illuminate this screen. It will stay illuminated for a few seconds at a time.
When not in use disconnect all devices from the battery thus allowing the battery to completely shut down.

The inverter can also be used to charge the battery in a vehicle (vehicle does not need to be running) and to power/charge
other small electronic devices with the b attery. The inverter is not proprietary to the Freedom
used with other external batteries.
OPTIONAL FREEDOM TM
Auto Charge DC Cable {BPS DC.CABLE}: Used to charge the battery in a vehicle (vehicle must be running).
    
SunPower 40W Solar Panel {BPS SP40}: Used to charge the battery using the power of the sun.
    
DC OUT JACK
DC INPUT CORD
PLUG IN PAP DEVICE
AC POWER SUPPLY
CPAP BATTERY CHARGING ACCESSORIES
BATTERY POWER SOLUTIONS
150W SINE WAVE
POWER INVERTER
onnection
TM
CPAP Battery and can be
Page 1 of 2 June 2016
