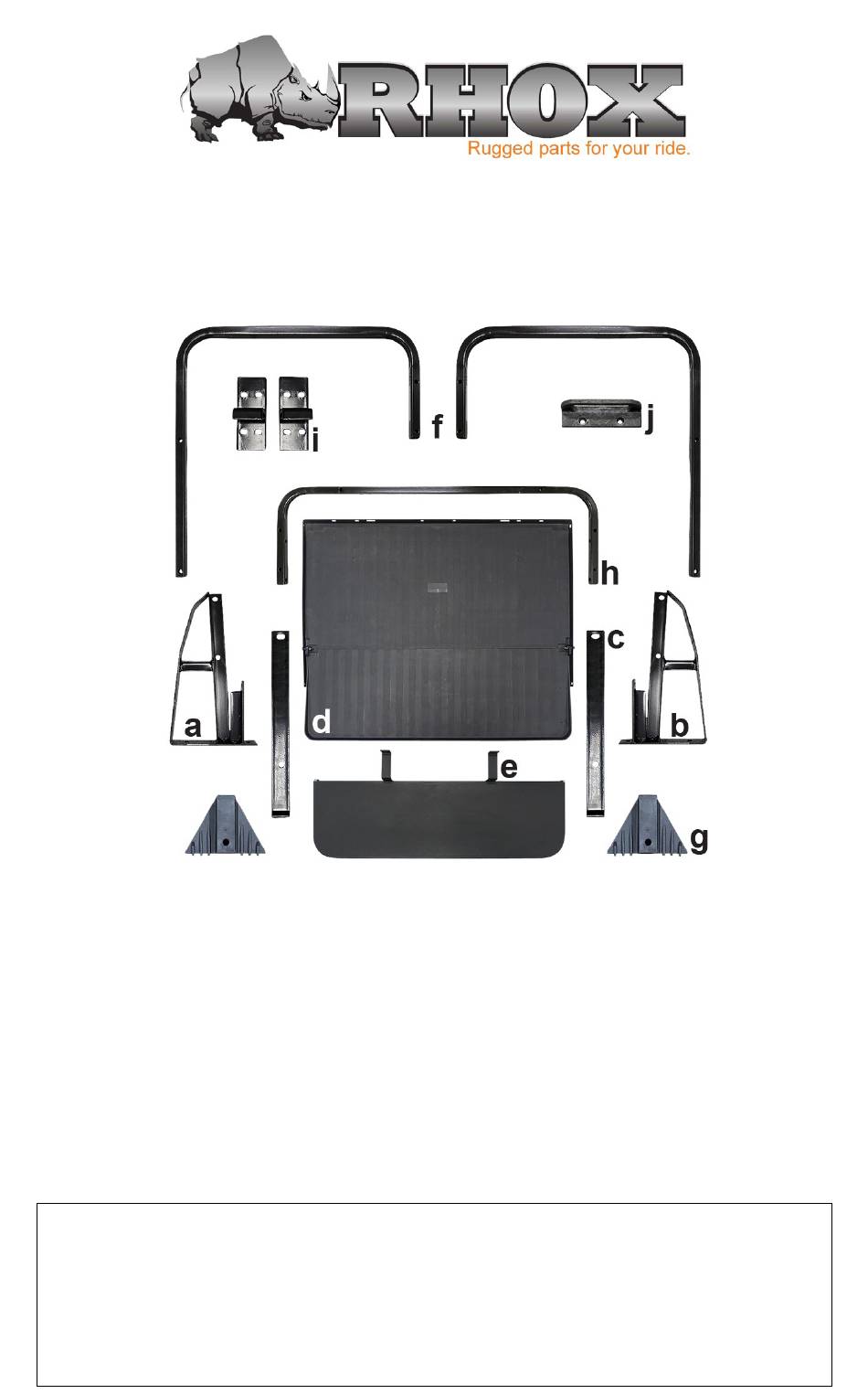

Contents of SEAT-311 RHOX 300 Series Rear Seat Kit:
a
b
c
d
e
f
g
h
i
j
k
Caution: Please read through the instructions carefully. Installer is respon-
sible for damage if instructions are not followed properly. Look behind each
drill or cut location BEFORE YOU DRILL OR CUT. Installer is responsible for
damage (i.e. drilling/cutting into a wiring harness, battery, fuel tank etc.).
Extra installers will be helpful in some parts of the installation. Refer to vehi-
cle's maintenance manual for torqueing specifications on reused hardware.
SEAT-311
E-Z-Go TXT
RHOX Seat Kit
Installation Instructions
(1 ea.) Front Seat Back Support, Driver Side
(1 ea.) Front Seat Back Support, Passenger Side
(2 ea.) Vertical Support Brackets
(1 ea.) Seat Platform
(1 ea.) Foot Plate
(2 ea.) Handrails
(2 ea.) Foot Plate Support Brackets
(1 ea.) Rear Seat Back Support Frame
(2 ea.) Rear Seat Back Brackets
(1 ea.) Seat Bottom Handle
(1 ea.) Box of Hardware (Contents on Next Page)
Advertisement
Table of Contents
Related Manuals for RHOX SEAT-311
Summary of Contents for RHOX SEAT-311
-
Page 1: Installation Instructions
SEAT-311 E-Z-Go TXT RHOX Seat Kit Installation Instructions Contents of SEAT-311 RHOX 300 Series Rear Seat Kit: (1 ea.) Front Seat Back Support, Driver Side (1 ea.) Front Seat Back Support, Passenger Side (2 ea.) Vertical Support Brackets (1 ea.) Seat Platform (1 ea.) Foot Plate... - Page 2 Contents of SEAT-311 Hardware Kit Bag #1 10mm x 80 Hex Head Bolts 10mm x 70 Hex Head Bolts 10mm x 45 Hex Head Bolts 10mm x 40 Hex Head Bolts 10mm x 30 Hex Head Bolts 10mm x 25 Hex Head Bolts...
- Page 3 Installation Preparation Engage parking brake. Turn key OFF. Electric Carts Only: Place Tow/Run Switch in Tow. Remove top. NOTE: If reinstalling the top, keep the top attached to the front struts and prop up the rear of the top using a broom handle or similar tool.
- Page 4 Remove both seat back supports and the bag attachment. Driver side seat support shown. Rear Seat Kit Installation Install the new front seat back support brackets where the original brackets were installed. Mount using (4) 3/8-16 x 1.5” Hex Head Bolts and (4) 3/8”...
- Page 5 Loosely install the seat platform to the front seat back support brackets using (2) 10mm x 25 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts (Bag #2). NOTE: Protect the rear body from scratches with a thick blanket or clean piece of cardboard.
- Page 6 Loosely fasten the footplate to the vertical support brackets using (2) 10mm x 30 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts (Bag #3). Loosely fasten the longer leg of a handrail to the rearmost portion of the seat platform (blue arrow) using (1) 10mm x 40 Phillips Head Truss Bolt, (1) Flat Washer and (1) Nylock Nut (Bag 4).
- Page 7 10. Place the rear seat back support frame between the handrails. Loosely fasten the support frame to the bottom of the handrails (red arrow, page 6) using (2) 10mm x 70 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts (Bag #4) 11.
- Page 8 19. Reinstall top using Original Hardware (if applicable). This completes the installation of your RHOX 300 Series Rear Seat Kit. Please enjoy safely! Scan QR code or use the link below to view the installation video. https://vimeo.com/user39935056 Page 8...
