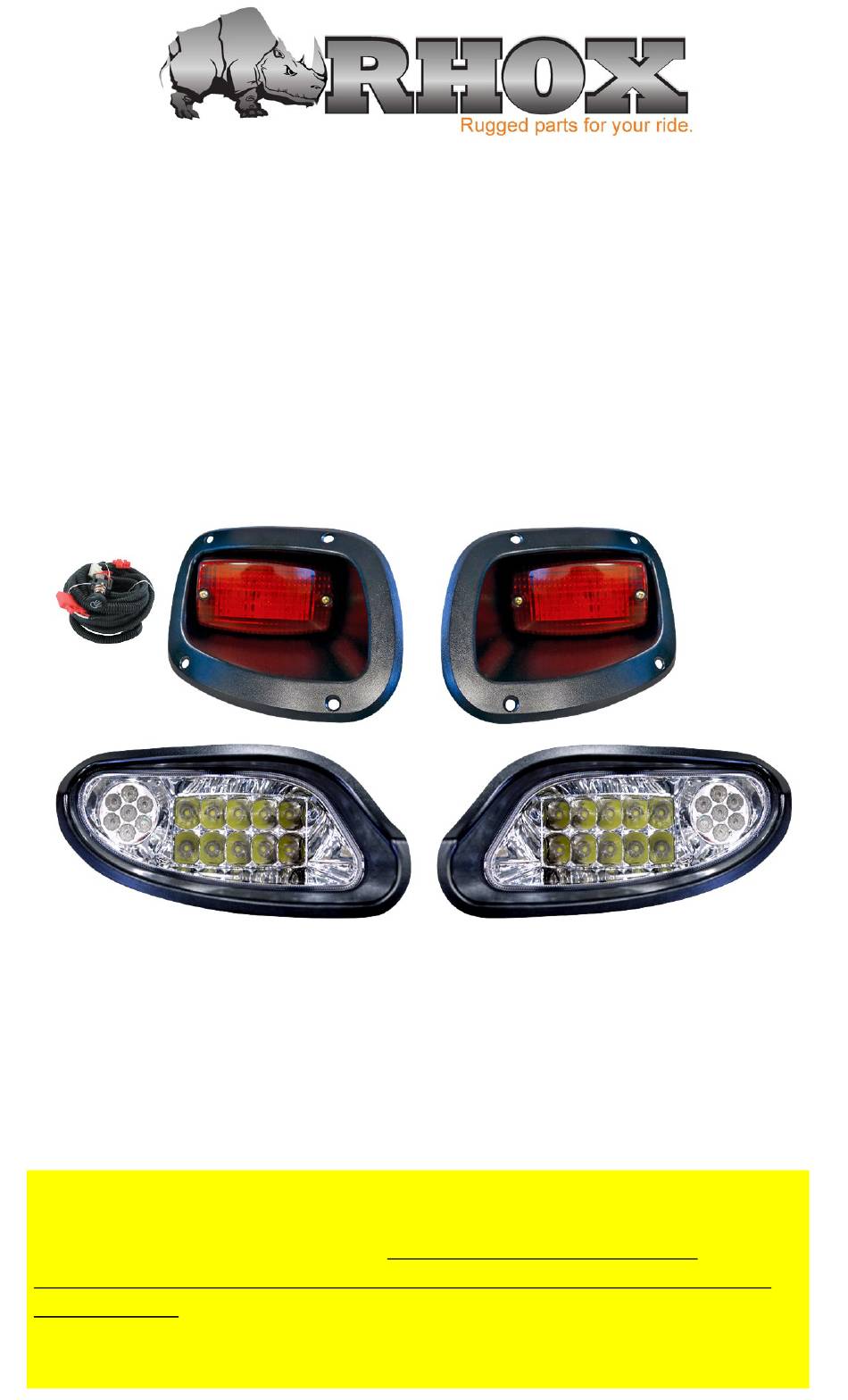

LGT-381L
E-Z-Go TXT 2014+
SS Factory Style Light Kit, LED Bulbs
Installation Instructions
Caution: Please read through the instructions carefully. Before starting
this project, remove the system's positive and negative connections
from the battery or battery pack. This kit is designed for a 12V
operation only. Operating this kit at a higher voltage will void any and
all warranties. Look behind each drill location BEFORE YOU DRILL.
Installer is responsible for damage (i.e. drilling into a wiring harness,
battery, fuel tank etc.).
Advertisement
Table of Contents
Related Manuals for RHOX LGT-381L
Summary of Contents for RHOX LGT-381L
-
Page 1: Installation Instructions
LGT-381L E-Z-Go TXT 2014+ SS Factory Style Light Kit, LED Bulbs Installation Instructions Caution: Please read through the instructions carefully. Before starting this project, remove the system’s positive and negative connections from the battery or battery pack. This kit is designed for a 12V operation only. - Page 2 Table of Contents Headlight & Taillight Preparation ......Page 4 Wire Harness Installation ........Page 5 Headlight Installation .
- Page 3 Wire Harness Overview Driver Head and Passenger Head Marker Light and Marker Light Push-Pull Switch -12V To Ground Fuse +12V To Positive To Passenger Side To Driver Side Taillight Taillight Page 3...
- Page 4 Headlight & Taillight Preparation Headlight Preparation Cut out the headlight template following the guidelines. Place the template on the passenger side front cowl and align it with the cowl mold lines and emblem. Secure with painter’s tape. Trace the inside contour of the template using a marking device.
- Page 5 Use a jigsaw or rotary tool to cut out the INSIDE of the marked area. Test fit the taillight. If needed, make any modifications and retest. Once it is fitted properly, remove the tape and sand any rough edges. Flip the template over and complete Steps 2-4 for the driver taillight.
- Page 6 Route the taillight leads to the holes that were cut out for the taillights. The shorter lead will go over the driver side inner fender. The longer lead will go behind the battery pack and over the passenger fender. Route the front portion of the harness through the vertical channel on the driver side. Loosely secure with cable ties.
- Page 7 Remove the knob, retaining nuts and lock washer from the push-pull switch and insert the shaft of the switch into the newly drilled hole. Secure using the lock washer and retaining nuts. Reattach the knob. KEY-51 Key Switch Installation Disconnect the original key switch and remove it from the center compartment. Retain the hardware.
- Page 8 Power Connections NOTE: Complete this section once the lights, wire harness and push-pull switch have been installed. CAUTION: This light kit is designed for 12V DC operation only. Please be advised that operating this light kit at a voltage over 12V DC can damage components and will void any and all warranties.
