LG UV34 Series Manual

Hide thumbs Also See for UV34 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

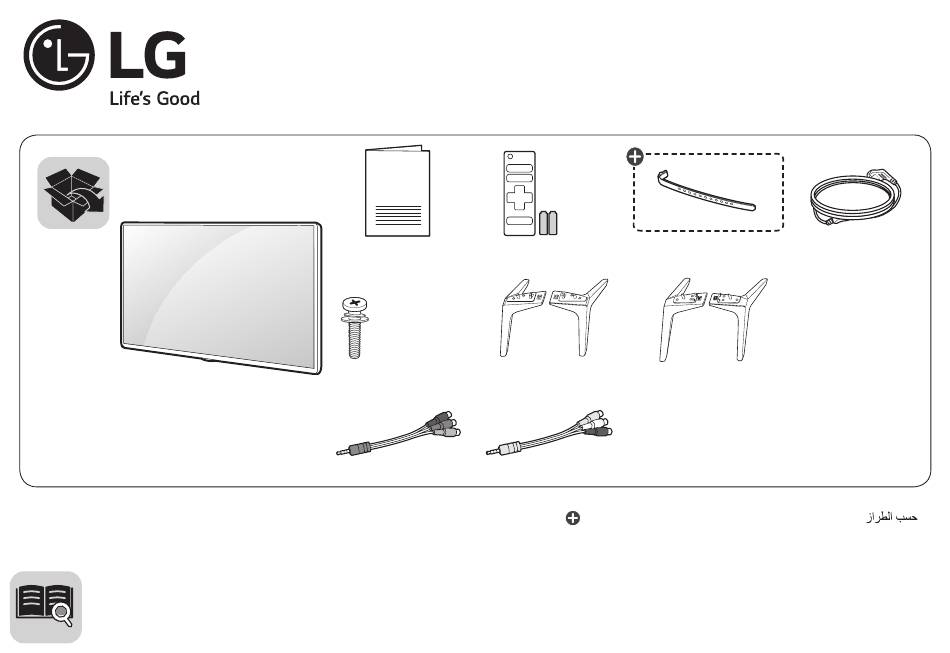

LED TV
UV34**
12
14
16
20
AAA
X 4
(M4 X L20)
55UV34**
X 6
(M4 X L20)
55/65UV34**
75UV34**
65/75UV34**
: Depending on model / Tergantung pada modelnya /
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG UV34 Series

Summary of Contents for LG UV34 Series

  • Page 1 LED TV UV34** (M4 X L20) 55UV34** (M4 X L20) 55/65UV34** 75UV34** 65/75UV34** : Depending on model / Tergantung pada modelnya / www.lg.com...
  • Page 3 55/65UV34** 55UV34** 65UV34**...
  • Page 4 75UV34**...
  • Page 5 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN H/P OUT CLOCK...
  • Page 6 OPTICAL DIGITAL AUDIO OUT AV IN COMPONENT IN...
  • Page 7 AV IN COMPONENT IN VIDEO L/MONO AUDIO R AUDIO VIDEO...
  • Page 8 HDMI-DVI IN AV IN HDMI IN DVI OUT AUDIO OUT...
  • Page 10 1237 232.9 63.8 16.2 16.0 55UV340C-TB 1456 271.8 64.8 26.4 26.0 65UV340C-TB 1697 1052 297.0 65.3 42.0 41.3 75UV340C-TB AC 100-240 V ~ 50 / 60 Hz Power requirement / Persyaratan daya /...
  • Page 13 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL71693904* Copyright © 2018 LG Electronics Inc. All Rights Reserved. (2005-REV01)
  • Page 14 Warning! Safety instructions • Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. • Insert power cable plug completely into wall socket otherwise if CAUTION not secured completely into socket, fire ignition may break out.
  • Page 15 • Only use an authorized AC adapter and power cord approved by • When connecting external devices such as video game consoles, LG Electronics. Otherwise, this may result in fire, electric shock, make sure the connecting cables are long enough. Otherwise, malfunction or product deformation.
  • Page 16 Preparing • Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product. • If the TV is turned on for the first time after it was shipped from •...

  • Page 17: Lifting And Moving The Tv

    Lifting and moving the TV • Do not use any unapproved items to ensure the safety and product life span. • Any damage or injuries caused by using unapproved Please note the following advice to prevent the TV from being scratched items are not covered by the manufacturer’s warranty.

  • Page 18: Using The Button

    Using the button Basic functions <A/B type> (Depending on model) Power On (Press) You can simply operate the TV functions, using the button. Power Off (Press and hold) <A type> Volume Control Programmes Control <C type> Power On (Press) Power Off (Press and Hold) Menu Control (Press Menu Selection (Press and Hold...

  • Page 19: Mounting On A Table

    Mounting on a table Attaching the TV to a desk (This feature is not available for all models.) 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper The TV should be attached to a desk so it cannot be pulled in a forward/ ventilation.

  • Page 20: Using The Kensington Security System

    Using the kensington security Adjusting the angle of the TV to suit system view (This feature is not available for all models.) (This feature is not available for all models.) Swivel 20 degrees to the left or right and adjust the angle of the TV to •...

  • Page 21: Mounting On A Wall

    We recommend the use 55UV96** 32/43LU66** of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with 49LU640* cables connected. When you do not use LG’s wall mount bracket, please VESA (A x B) (mm)

  • Page 22: Connections (Notifications)

    Connections (notifications) • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model) Connect various external devices to the TV and switch input modes to select an external device.
  • Page 23 Satellite dish connection Speaker output setup (Depending on model) (Only satellite models) Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω). CI module connection EXTERNAL (Depending on model) SPEAKER OUT View the encrypted (pay) services in digital TV mode. STEREO •...

  • Page 24: Network Setup

    Network setup Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Wired network connection Some separate cable is not provided. (Depending on model) •...

  • Page 25: Remote Control

    Remote control (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce energy consumption. (Some buttons and services may not be provided depending on models By zooming in on the selected or regions.) area, you can view it in full screen. Changes the input source.
  • Page 26 (Depending on model) (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. Recalls your preferred subtitle in digital mode. Not functional. Resizes an image. (INPUT) Changes the input source. Number buttons Enters numbers. Alphabet buttons Enters letters. Accesses the saved programmes list.
  • Page 27 (Depending on model) (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. Recalls your preferred subtitle in digital mode. Audio descriptions function will be enabled. Resizes an image. (INPUT) Changes the input source. Number buttons Enters numbers. Accesses the saved programme list.

  • Page 28: Open Source Software Notice Information

    Manufactured under license from Dolby Laboratories. Dolby, Dolby LG Electronics will also provide open source code to you on CD-ROM Vision, Dolby Audio, and the double-D symbol are trademarks of for a charge covering the cost of performing such distribution (such Dolby Laboratories.

  • Page 29: Specifications

    Connection and use of this communications equipment is permitted by the Nigerian Communications Commission Software download information (Only LV64**) • SuperSign Software & Manual - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model.
  • Page 30 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % •...
  • Page 31 HDMI/DVI-DTV supported mode HDMI/DVI-PC supported Mode • PC audio is not supported Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode (Depending on model) Frequency (Hz) Frequency (kHz) 31.469 59.94 Horizontal Vertical Resolution 640 x 480 Frequency (kHz) Frequency (Hz) 31.5 60.00...

  • Page 32: Audio Format

    Component port connecting Audio format information File Item Info Component ports on the TV Format Bit rate 32 Kbps - 320 Kbps Sample freq. 16 kHz - 48 kHz .mp3 Support MPEG1, MPEG2 Video output ports on DVD player channels mono, stereo Bit rate Sample freq.

  • Page 33: Video Codec

    Video codec Extension Codec VC-1 Advanced Profile (except for Video WMVA), VC-1 Simple and Main Profiles .asf .wmv WMA Standard (except for WMA v1/ Audio WMA Speech) Xvid(except 3 warp-point GMC), H.264/ Video AVC, Motion Jpeg, MPEG-4 .avi MPEG-1 Layer I, II, MPEG-1 Layer III Audio (MP3), Dolby Digital, LPCM, ADPCM, DTS .mp4...
  • Page 34 IR CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button T.OPT (T.Option) Remote control Button Remote control Button...

  • Page 35: External Control Device Setup

    EXTERNAL CONTROL Phone jack Type (TV) (PC) DEVICE SETUP (Depending on model) RS-232C IN (CONTROL & SERVICE) • You need to purchase the phone-jack to RS-232C cable required (PC) (TV) for the connection between the PC and the TV, which is specified in the manual.

  • Page 36: Communication Parameters

    • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID (CONTROL & SERVICE) (TV) (PC) : 0x2008) USB to serial converter which is not made nor provided by LG. • It can be purchased from computer stores that carry accessories for (PC) (TV) IT support professionals.

  • Page 37: Transmission / Receiving Protocol

    Command Reference List Transmission / Receiving Protocol (Depending on Model) (Depending on Model) DATA COMMAND1 COMMAND2 (Hexadecimal) Transmission 01. Power 00 to 01 [Command1][Command2][ ][Set ID][ ][Data][Cr] 02. Aspect Ratio (on page 26) 03. Screen Mute (on page 26) [Command 1] : First command to control the TV.(j, k, m or x) 04.
  • Page 38 01. Power (Command: k a) * In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD. ► To control Power On/Off of the set. Transmission [k][a][ ][Set ID][ ][Data][Cr] 04.
  • Page 39 07. Brightness (Command: k h) 11. OSD Select (Command: k l) ► To adjust screen brightness. ► To select OSD (On Screen Display) on/off when controlling remotely. You can also adjust brightness in the PICTURE menu. Transmission Transmission [k][l][ ][Set ID][ ][Data][Cr] [k][h][ ][Set ID][ ][Data][Cr] Data 00 : OSD off 01 : OSD on...
  • Page 40 15. Energy Saving (Command: j q) ► To reduce the power consumption of the TV. You can also adjust Energy Saving in PICTURE menu. Data Frequency Transmission [j][q][ ][Set ID][ ][Data][Cr] 7 6 5 Frequency 4 3 2 1 0 Step 0 0 0 1st Band...
  • Page 41 19. Programme Add/Skip (Command: m b) 22. Input select (Command: x b) (Main Picture Input) ► To set skip status for the current Programme. ► To select input source for main picture. Transmission Transmission [m][b][ ][Set ID][ ][Data][Cr] [x][b][ ][Set ID][ ][Data][Cr] Data 00 : Skip 01 : Add Data...
  • Page 42 * Real data mapping 00 : Step 0 Step 10 (Set ID 10) Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100 6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE :...
  • Page 44 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...

This manual is also suitable for:

55uv340c-tb65uv340c-tb75uv340c-tb
