Summary of Contents for Triax TMB 100

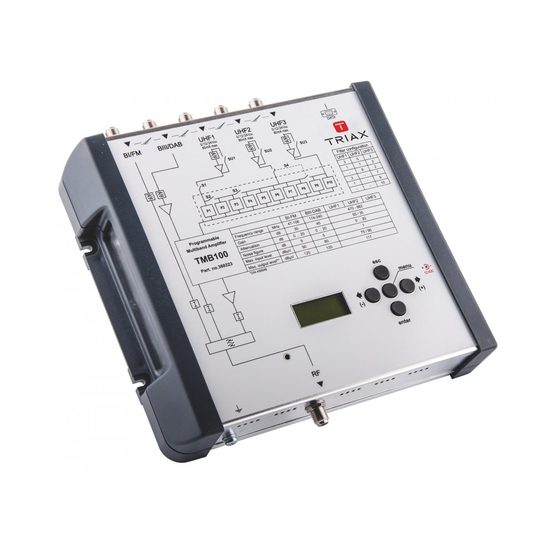

- Page 1 TMB 100, 100-1 & TMB 100S Programmable Multiband Amplifier Model Item no. TMB 100, 100-1 & TMB 100S triax.com Version 2.1 10 - 2015...
-
Page 2: Table Of Contents
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S General information ........................... 3 Safety instructions..........................3 Installing the unit ..........................4 Programming the unit........................5 Configuring the unit........................... 6 Operating principle ........................6 Menus : ............................6 Flow chart ............................7 Menus .............................. -
Page 3: General Information
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S The processing units in the TMB100 range are used to selectively filter digital and analogue UHF channels. These units also couple and amplify VHF programmes according to the satellite band model (IF). -
Page 4: Installing The Unit
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S We recommend you install the unit in a sufficiently ventilated place. Natural ventilation must be able to occur through the ventilation grids; leave a minimum space of 15 cm around the unit to ensure maximum ventilation. -
Page 5: Programming The Unit
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S A 4-digit display and a keypad are all you need to programme the unit. Follow the procedure below for configuring the various parameters. Back to previous menu ( - Running through the menus ,... -
Page 6: Configuring The Unit
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S On powering on, the unit is in standby mode, a light segments flashes across the display. Operating principle To access the configuration menus, press a button To summarize: To scroll through the menus, use the + / - buttons. -
Page 7: Flow Chart
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S... -
Page 8: Menus
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S Config menu This menu allows: Configuration of filter distribution on UHF1, 2 and 3 inputs. Comb 0010 Ampx on/off Switch on/off the input amplifiers Selection of remote power supply (12 or 24 VDC). -
Page 9: Input Amplifier Setting
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S Input amplifier setting. Unit in standby mode, push a button to reach the CONFIG menu. Press the enter button to select the Comb menu. Press the button to reach the AmpX menu. -
Page 10: Remote Power Supply Setup
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S Remote power supply setup. <CONFIG> Enter CONFIG CONFIG CONFIG CONFIG CONFIG CONFIG Comb 0010 Amp1 VDC1 VDC2 VDC3 CONFIG Amp2 CONFIG Enter Enter Enter Enter Enter Amp3 CONFIG CONFIG CONFIG CONFIG CONFIG... -
Page 11: Import And Export Menu
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S Import and export menu Unit in standby mode, push a button to reach the CONFIG menu. Press the enter button to select the Comb menu. Press the several times to reach Import or Export menu. -
Page 12: Pin Code
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S PIN Code Default PIN code: 2312 Unit in standby mode, push a button to reach the CONFIG menu. Press the enter button to select the Comb menu. Press the several times to reach PIN menu. -
Page 13: Uhf Filters Setup
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S UHF filters setup. Unit in standby mode, push a button to reach the CONFIG menu. Press the button to reach the CHAN menu. Press enter to activate the menu ... -
Page 14: Setting The Levels
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S Setting the levels. There are three types of level setting: “Manual” setting of output levels (Gain menu) automatic alignment of UHF filter output levels to a value entered by the user. (Auto menu, ... -
Page 15: Sat Menu
Pregrammable Amplifier TMB 100, 100-1 & TMB 100S IMPORTANT! AGC: The unit memorizes the average output level. A variation of ± 1 dB triggers the function and compensates the variation within gain and attenuation limits AGC mode hides all other menus. To modify the parameters, switch the AGC mode to OFF ... -
Page 16: Tmb 100S Diagram
0/12/24V 0/12/24V 0/13/17V 0/22kHz 0-20dB 0-20dB 0-20dB 0-20dB 0/9dB 0-20dB Note: Model TMB 100 does not have impmented the SAT path Make a note of your filter setup: Value UHF1 UHF2 UHF3 Bandwidth of the filter Gain Level 2 filter... - Page 17 100...240 Power consumption at 230VAC (dependent on remote supplying) 9…16 12…18 External PSU with Euro plug TMB 100 // TMB 100-1, 100S V / A Wall-plug 12/1,25 Desktop 12 / 2,5 Remote supply UHF 1, 2 or 3 V / mA...
- Page 18 • www.triax.com triax.com/support Copyright © 2016 TRIAX. All rights reserved. The TRIAX Logo and TRIAX, TRIAX Multimedia are registered trademarks or trademarks of the TRIAX Company or its affiliates. All specifications in this guide are subject to change without further notice.
