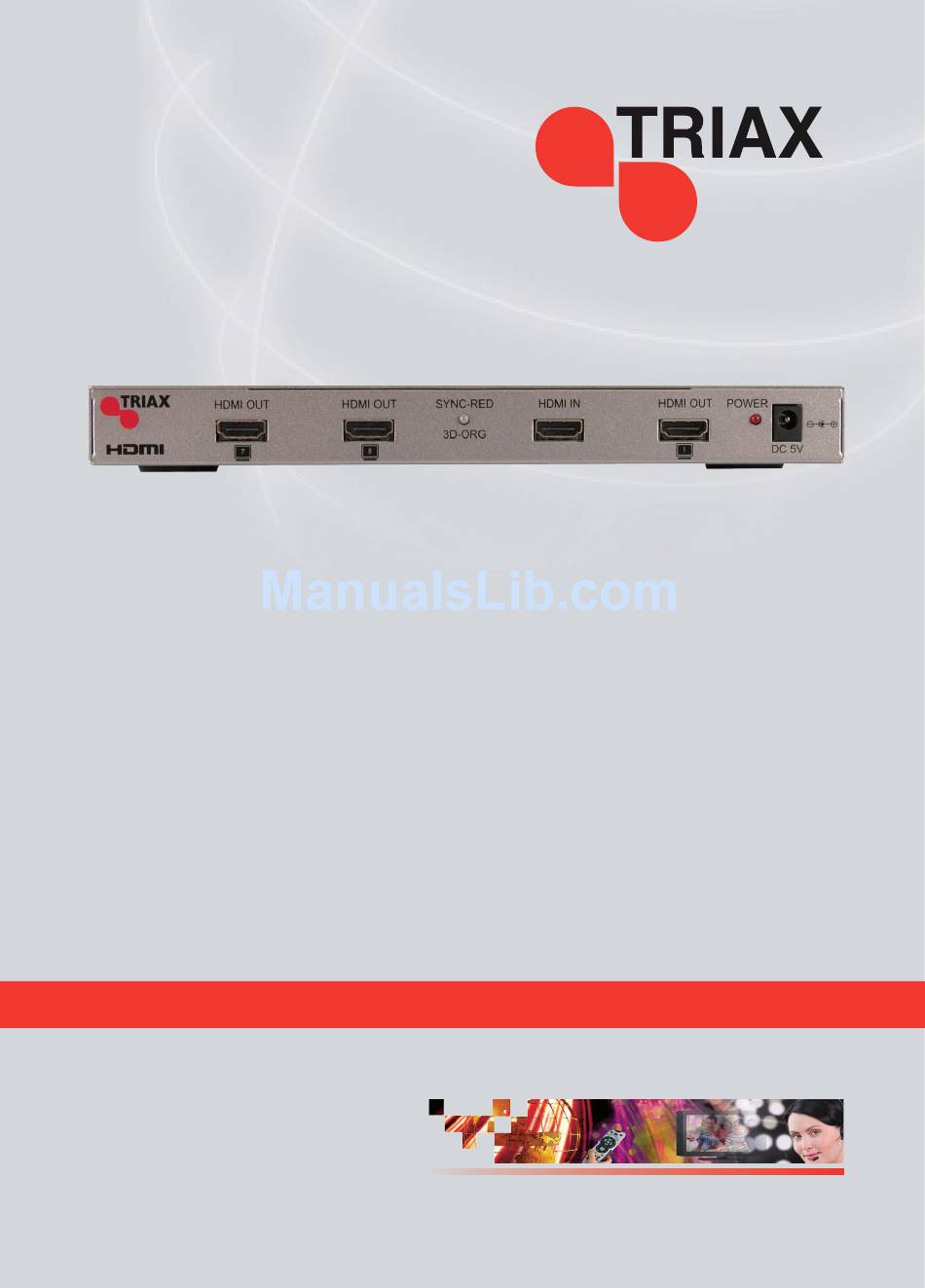

- Page 1 HDA 1x2S HDMI-HDMI Distribution Amplifier Part No. 310006 HDA 1x8S HDMI-HDMI Distribution Amplifier Part No. 310007 Operating Manual TRIAX - your ultimate connection...
-
Page 2: Table Of Contents
The illustrations in this operation manual are for explanation and guidance purposes only. • The examples used throughout this manual are based on the HDA 1x2S and HDA 1x8S models. Dear Triax customer Thank you for purchasing the TRIAX HDMI-HDMI Distribution Amplifier. -
Page 3: Safety Precautions
Important Safety Precautions • Cleaning - Unplug the AC power from the mains supply before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product, do not use a chemical cloth to clean it. -
Page 4: Introduction
Introduction The Triax HDA HDMI Distribution Amplifier Series is an advanced solution for distributing HDMI Source signals to either 2 or 8 Sink devices. Each product in the Triax range is com- patible to v1.3 HDMI specifications, a cutting edge technology which defines the support of the transfer of Deep Colour (10-bit and 12-bit) video and new lossless compressed (LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the HDA Series also provides signal amplification and equalization of audio and Video from Input to Output. Features • v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant. • Supports ‘Deep Colour’ (10 and 12 bit). •... -
Page 5: Operation And Control
Operation and Control Front Panel - HDA 1x2S HDMI Output 1 HDMI Output 2 1. HDMI Output 1x2: Connects each of the output ports to a HDMI enabled display. When more than one output is connected both screens display the HDMI signal simultaneously. -
Page 6: Rear Panel Hda 1X2S
Operation and Control Rear Panel - HDA 1x2S HDMI Input Power DC 5V 1. HDMI Input: Connects the input port to the HDMI or DVI output of your source equipment such as DVD player or set-top box. 2. Power LED: The power LED will illuminate when power is on. - Page 7 Connection Diagram HDA 1x2S Blue-Ray / DVD HDMI Input HDA 1x2S HDMI Output Projector Display HDA 1 x 2S Input Port 1 x HDMI Female Port (Type A) HDCP Version V1.1 Output Port 2 x HDMI Female Port (Type A) HDMI Specification V1.3...
- Page 8 Connection Diagram HDA 1x8S HDMI Input HDA 1x8S HDMI Output HDA 1 x 8S Input Port 1 x HDMI Female Port (Type A) HDCP Version V1.1 Output Port 8 x HDMI Female Port (Type A) HDMI Specification V1.3 Frequency bandwidth 2.25Gbps (single link) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL Certified)
- Page 9 Notes...
- Page 12 Issue 2 *Triax reserves the right to change the specifications without prior notification...
