Sonelco PCP1290 Manual

4FA040101

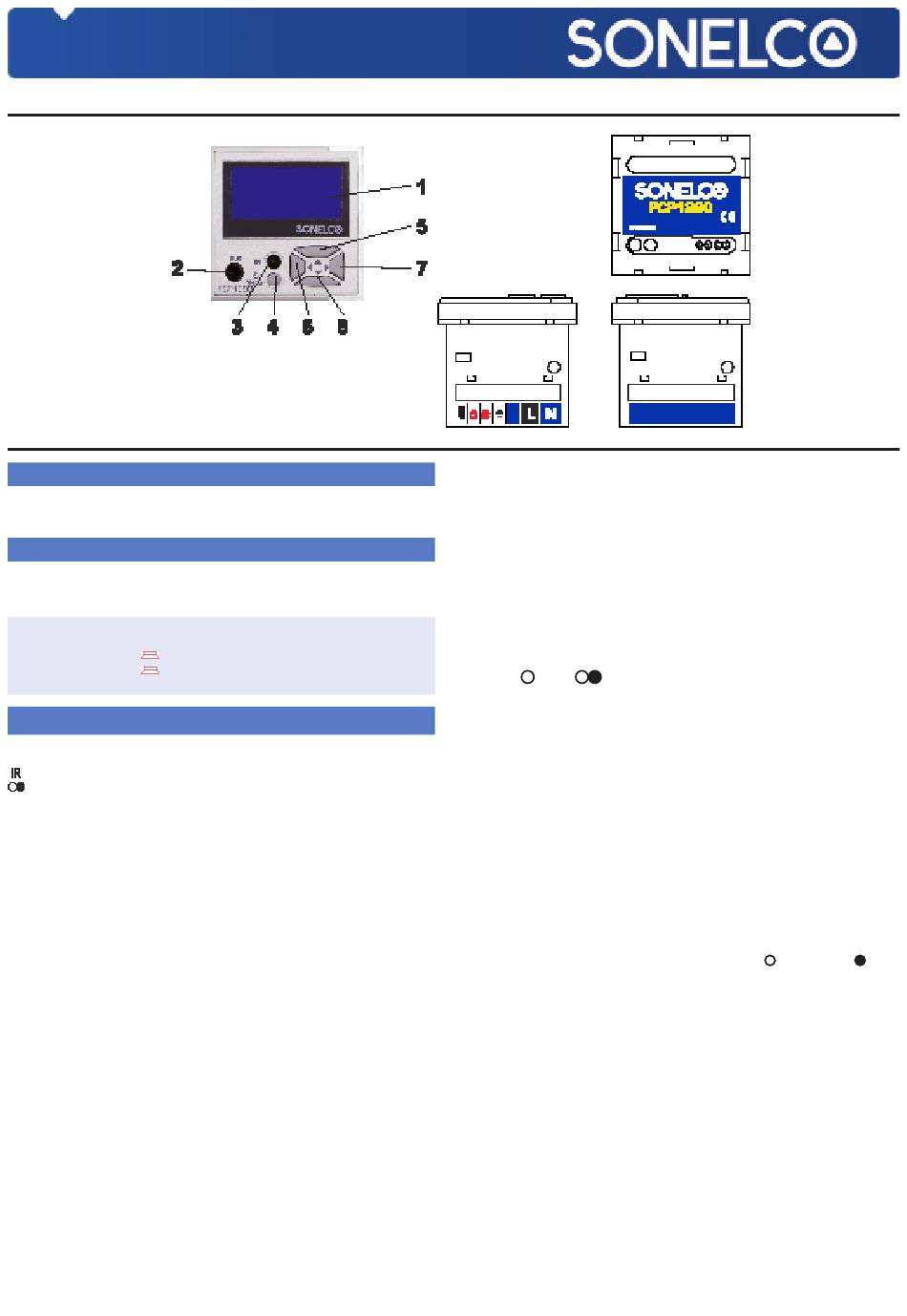

1- Display. 2- Auxiliary channel input. 3- Infrared receiver, 4- ON/OFF/MENU
5- Volume increase button, 6- Exit button, 7- Accept button, 8- Volume down button
DESCRIPTION
Control with direct power supply at 230V. 2 stereo channels : FM radio with RDS and
auxiliary channel JACK 3.5. Alarm clock, calendar, auto-off, and remote control.
CONNECTION
Before connecting the device, make sure that the power supply unit of the system is
switched off. Insert the control into the frame and make the connection according to the
following instructions:
TERMINALS:
L - 230 Vac Line.
Ant - Antenna.
N - 230 Vac neutral
L + – Left speaker output.
R + – Right speaker output.
- - Speaker ground
OPERATION
When power is supplied to the control, the time, date and following items are displayed:
Infrareds activated – Infrareds deactivated, icon not visible
Mono / Stereo (Only in tuner function)
CONTROL OFF:
In this initial state, the volume Up (5) / Down (8) / Exit (6) / Accept (7) buttons have no
function, only the on button (4).
CONTROL ON:
With the volume Up (5) / Down (8) buttons we change stations.
With the volume Up (6) and Accept (7) buttons, we turn the volume up and down.
ENTER MAIN MENU:
With the control switched on, press the Menu button (4) for two or three seconds to enter
the menu; scroll down the menu with Up (5) and Down (8) buttons until you reach the
option you wish to modify. Press Accept (7) and then Exit button (6) to exit the menu.
MAIN MENU:
AUDIO
RADIO
CHANNEL
EQUALIZE
TIMER OFF (TIMER)
DATE/TIME
ALARM
CONFIGURE
LANGUAGE
AUDIO
BASS -
With buttons 6 and 7, we adjust the bass level, with button 8 we exit and
validate the adjustment. To exit the menu we will press button 6 to return to
on mode. If we do not touch the buttons, after 30 seconds we will return to
on position.
TREBLE - With buttons 6 and 7, we adjust the treble level, with button 8 we exit
and validate the adjustment. To exit the menu we will press button6 to return to on
mode. If we do not touch the buttons, after 30 seconds we will return to on position.
DIGITAL CONTROL WITH FM TUNER & AUX INPUT
SUPERBASS - With buttons 5 and 8 we select ACTIVATE or DEACTIVATE the
SUPERBASS function. With button 7, we validate the option and with button
6 we exit the menu. With the function activated on the display the Sb icon will
appear. If we do not touch the buttons, after 30 seconds we will return to on
position.
IDEAL - When we select the IDEAL function, it is automatically activated and the
Id icon appears on the display. To exit the menu we will press button 6 until we
return to on mode. If we do not touch the buttons, after 30 seconds we will return to
on position.
RADIO
MONO/STEREO -
With buttons 5 and 8 we select the MONO or STEREO option
With button 7, we validate the option and with button 6 we exit the menu until we
return to on mode. The following information will appear on the display:
Mono , Stereo .
If we do not touch the buttons, after 30 seconds we will return to on position.
SENSITIVITY -
After entering the menu, we can choose 4 search sensitivity
levels: MAXIMUM – HIGH – LOW - MINIMUM. With buttons 5 and 8 we will choose
the search sensitivity level, with button 7 we validate the option and with
button 6 we exit the menu until we return to the on mode. If we do not touch the
buttons, after 30 seconds we will return to on position.
AUTOSEARCH -
When we select the AUTOSEARCH function, the tuner
automatically searches for all available stations and stores them in the memories.
With button 6 we exit the menu until we return to on mode. If we do not touch the
buttons, after 30 seconds we will return to on position.
SEARCH - In the search menu, we have two options, DIRECT and MEMORIES.
The direct option searches for the stations on the dial and the memories option
searches for the stations we have stored. With buttons 5 and 8, we will choose the
search mode and with button 7, we validate the option and with button 6 we exit the
menu until we return to on mode. If we do not touch the buttons, after 30 seconds
we will return to on position.
MEMORISE -
In this option, we memorise the stations manually; to do this, we will
have to tune in the station we want to store, then enter the MEMORISE menu; with
buttons 5 and 8 we will choose the memory (M01 empty
where we want to store the station and if we keep button 7 pressed for a few
seconds, it will be stored. To exit the menu, press button 6 until you return to on
mode.
DELETE - After entering the delete menu we have two options; delete all the
memories (ALL) or just one memory (ONLY ONE). With buttons 5 and 8 we select
the option we want. If we select ALL, when we press button 7 all the memories will
automatically be deleted. If we choose ONLY ONE, when we press button 7, we
will enter a menu where we will be able to select the memory we wish to delete by
pressing buttons 5 and 8; we accept with button 7 and the memory will be deleted.
We will repeat the process until all the memories we wish have been deleted. To
exit the menu, press button 6 until you return to on mode.
RDS - With buttons 5 and 8 we will select the RDS ACTIVATE or DEACTIVATE
option. When the RDS is activated, the name of the selected station will appear on
the display. With button 7, we validate the option and with button 6 we exit the menu
until we return to on mode. If we do not touch the buttons, after 30 seconds we will
return to on position.
PCP1290
, M01 occupied )
