Heat pump alféa extensa
3.2

Description of the display

Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Xxxxxxxxxxxxxxxxxxxxxxxxxxx

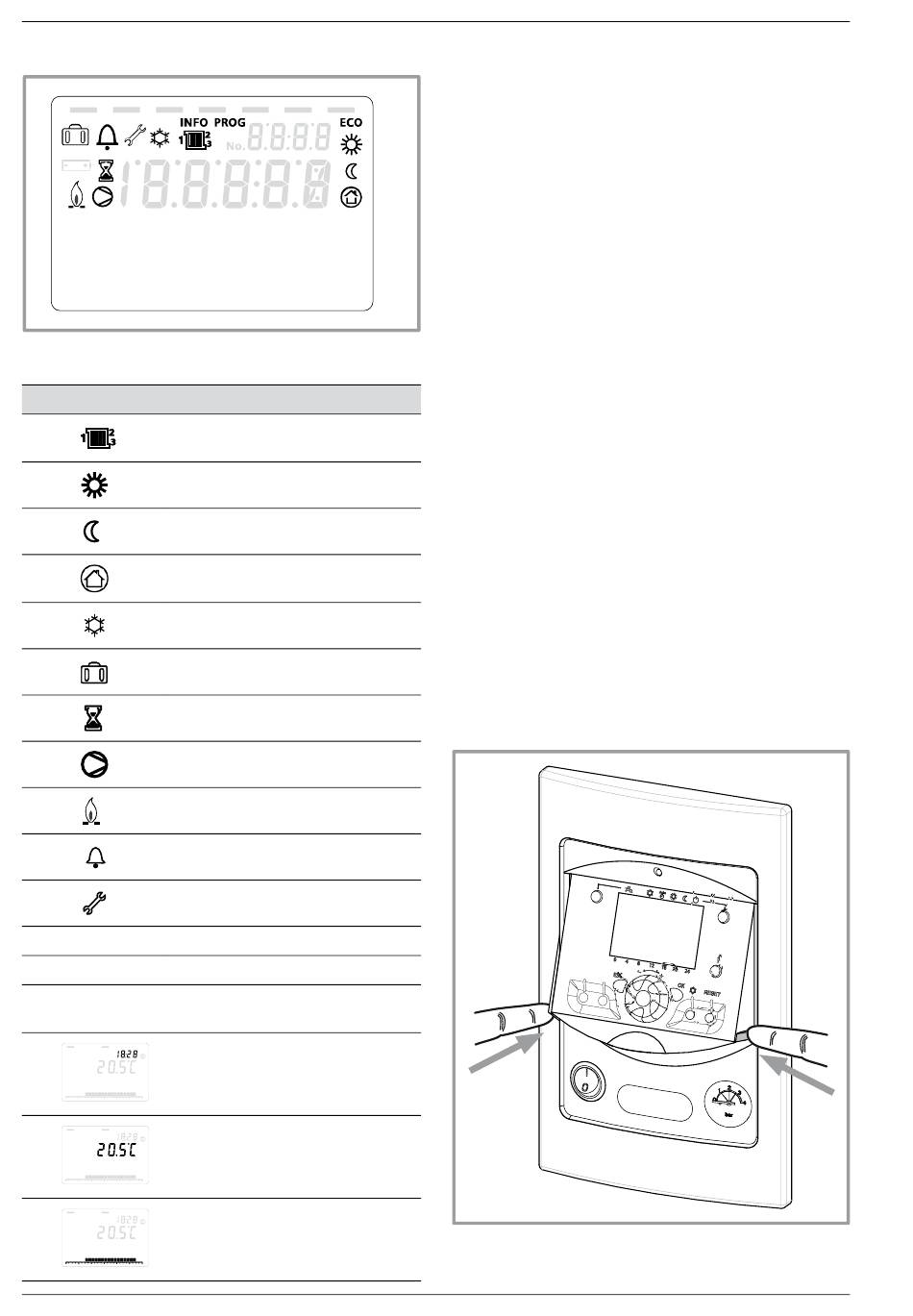

fi gure 30 - User interface display
Symbols Defi nitions
- Heating mode active with reference
to the heating circuit.
- Heating in comfort mode.
- Heating in reduced mode.
- Heating in "standby" mode
(freeze protection).
- Cooling mode active.
- Holiday mode activated.
- Process in progress.
- Compressor operation.
- Burner operation.
- Default message.
- Service / Special operation.
INFO
- Information level activated.
PROG
- Programme activated.
- ECO mode activated
ECO
(Heating temporarily stopped).
- Hour /
Parameter number /
temperature ambiante
Setpoint value.
- Room temperature /
Setpoint value.
temperature ambiante
- Setpoint information /
Parameter Information.
temperature ambiante
- 32 -
3.4

Temperature control

The heat pump's operation is subject to the temperature
control.
The set temperature for the water in the heating circuit
is adjusted according to the outdoor temperature.
The temperature control may be chosen automatically
by the machine (self-adaptation) or set manually by the
installer (Parameters 720, 721 and 726).
If there are thermostatic valves on the installation, these
must be fully open or adjusted for higher than the normal
set temperature.

3.4.1 Set to

During installation, the temperature control must be
parametered according to the heat emitters and the
dwelling's insulation.
The temperature control' curves
ambient setting of 20°C.
The slope of the temperature control (parameter 720)
determines the impact of the variations in the outdoor
temperature on the initial heating temperature variations.
The higher the slope, the more a slight reduction in the
outdoor temperature causes a signifi cant increase in
the fl ow water temperature in the heating circuit.
The off-set in the temperature control (parameter 721)
modifi es the initial temperature of all the curves, without
modifi cation of the slope
The corrective actions in the case of any inconvenience
are detailed in the table
fi gure 31 - Closing the display
Installation and operating manual "1455 - EN"
(fi gure 31) refer to an
(fi gure 32).
(fi gure 33).
