Digital Equipment FP-3710T Series Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FP-3710T Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet
before using the product.

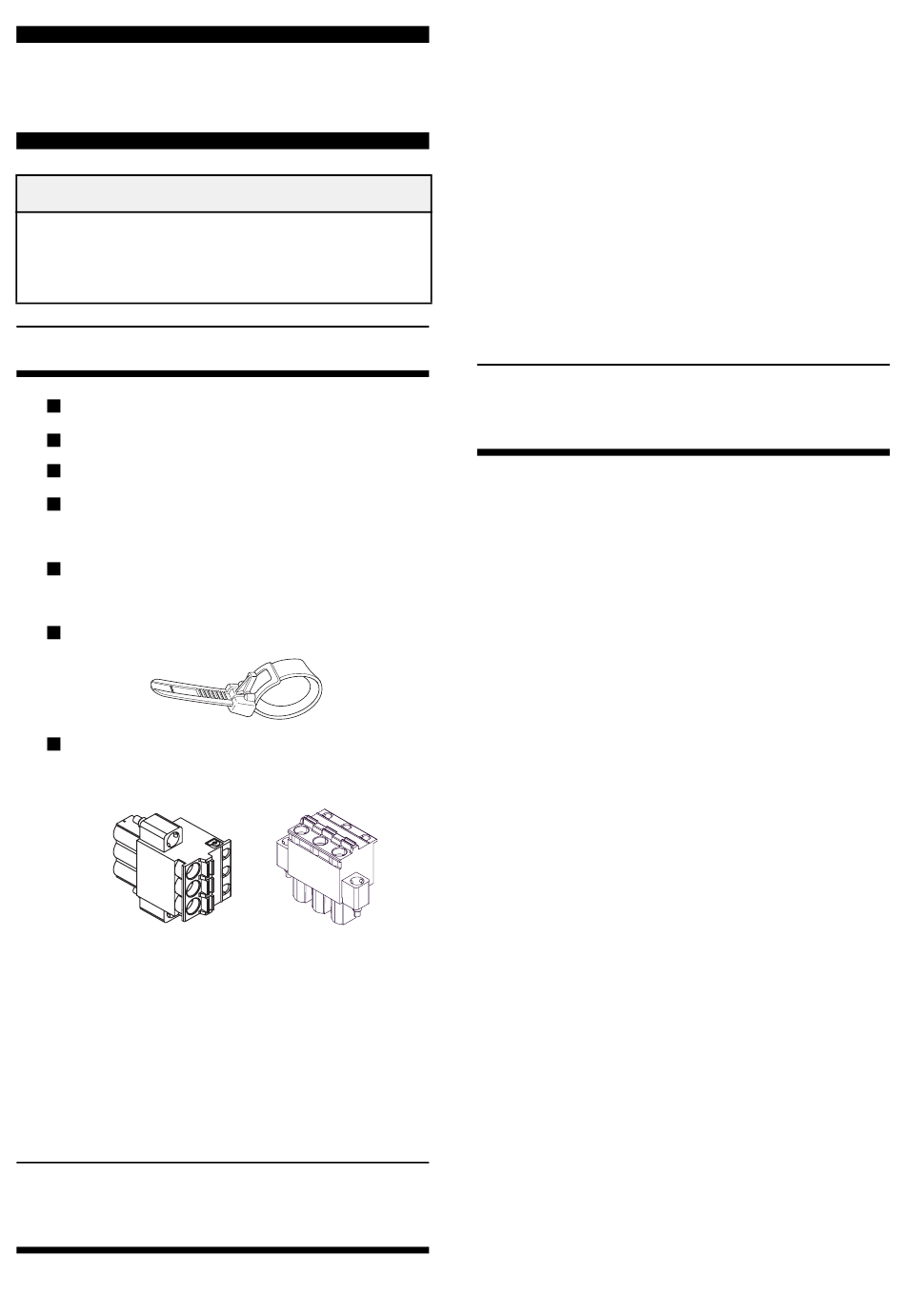

Package Contents
FP unit (1)
Installation Guide (1) (this manual)
Warning/Caution Information (1)
Installation Gasket (1)
(attached to the FP unit)
Installation Fasteners
(4/set, 2sets)
USB Cable Clamp (1)
Power Plug (1)
(attached to the FP unit)
AC type
This unit has been carefully packed,
with special attention to quality.
However, should you find anything
damaged or missing, please contact
your local FP distributor immediately.
Required software/Reference
manual
DC type
The FP-3710T Series unit needs the
following software for operation. As
FP user manual, provided by PDF
media, describes its details,
download the manual below and get
the further information. Visit Pro-face
website below and get both software
and reference manual. (URL:http://
www.pro-face.com/otasuke/)
• Software
• Manual
Installation prerequisites for
standards
For the detailed certification's
information, refer to the Pro-face
Home page.
<Cautions>
Be aware of the following items
when building the FP into an end-
use product:
•
For indoor use only.
•
This unit should be installed in the
front face of a metal panel.
•
If this unit is installed so as to cool
itself naturally, be sure to install it in a
vertical panel. Also, be sure that the
FP unit is mounted at least 100 mm
away from any adjacent structures or
equipment. If these requirements are
not met, the heat generated by the
FP unit's internal components may
cause the unit to fail to meet UL/c-UL
standard.
•
For use on a flat surface of a Type
4X (Indoor Use Only) and/or Type 12
Enclosure.
•
Type 4X (Indoor Use Only) and/or
12 Enclosure, when the hatch for
Front USB Port is secured by screw.
Type 1 Enclosure, when the hatch for
Front USB Port is open.(FP3710-
T42-U, FP3710-T42-24V-U only)
•
Receivable signals are only from
isolated secondary source.
1
: Mouse Emulation
Software
: FP3000 Series
User Manual
