FP-3710K Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

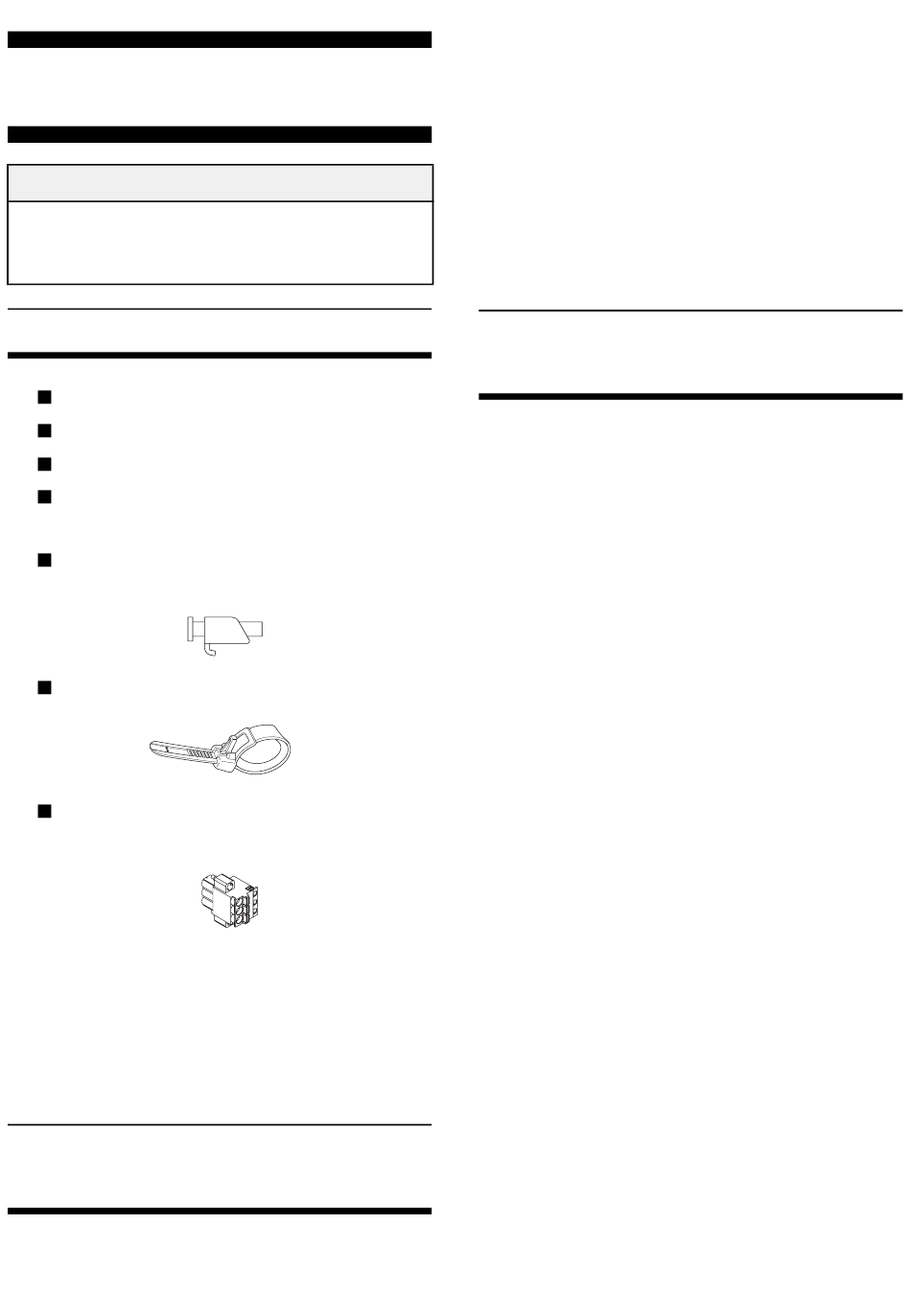

Package Contents
FP unit (1)
Installation Guide (1) (this manual)
Warning/Caution Information (1)
Installation Gasket (1)
(attached to the FP unit)
Installation Fasteners
(4 fasteners per set) (3 sets)
USB Cable Clamp (1)
AC Power Connector (Straight) (1)
(attached to the FP unit)
This unit has been carefully packed,
with special attention to quality.
However, should you find anything
damaged or missing, please contact
your local FP distributor immediately.
Required software/Reference
manual
The FP-3710K Series unit needs the
following software for operation.
As FP user manual, provided by PDF
media, describes its details, download
the manual below and get the further
information. Visit our website below
and get both software and reference
manual.
(URL:http://www.pro-face.com/otasuke/)
• Software:
Mouse Emulation Software
• Manual:
FP-3710K Series User Manual
Installation prerequisites for
standards
For the detailed certification's
information, refer to the Pro-face
Home page.
<Cautions>
Be aware of the following items when
building the FP into an end-use
product:
• The FP must be used as a built-in
component of an end-use product.
• This unit should be installed in the
front face of a metal panel.
• If this unit is installed so as to cool
itself naturally, be sure to install it in
a vertical panel. Also, be sure that
the FP unit is mounted at least 100
mm away from any adjacent
structures or equipment. If these
requirements are not met, the heat
generated by the FP unit's internal
components may cause the unit to
fail to meet UL/c-UL standard.
• For use in Pollution Degree 2
environment.
• For use on a flat surface of a Type
4X (Indoor Use Only) and/or Type
12 Enclosure.
• Type 4X (Indoor Use Only) and/or
12 Enclosure, when the hatch for
Front USB Port is secured by
screw.
Type 1 Enclosure, when the hatch
for Front USB Port is open.
• Receivable signals are only from
isolated secondary source.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro-face FP-3710K Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Equipment Pro-face FP-3710K Series

  • Page 1 As FP user manual, provided by PDF media, describes its details, download FP-3710K Series the manual below and get the further Installation Guide information. Visit our website below and get both software and reference manual. Caution (URL:http://www.pro-face.com/otasuke/) Be sure to read the “Warning/Caution •...
  • Page 2: Ce Marking Notes

    • All interface ports (except for Front ≤ Vmax USB Connector (Type A) ) are not ≤ Imax intended to be directly connected to ≥ a signal source greater than 30 Ci+C cable volts and available current greater ≥ Li+L cable than 5mA.
  • Page 3: Part Names

    Part Names A:TFT Color LCD Acts as a display monitor for your host. Front View B:Touch Panel Allows you to switch screens or write data to the host. C:Power Connector (Socket) Provides the input and ground terminals for a power cable. D:Setting Switch By opening the cover, the Dip switches and slide switch are seen.
  • Page 4 K: Keypad F/A key allows switching between function entry and character entry. An illuminated F/A key LED indicates character entry. (US keyboard layout) For detailed instruction of how to use the keypad, refer to “FP-3710K Series User Manual”. L: Mouse pointer 2-button mouse •...
  • Page 5 Switch Setting SW1-1 Reserved (Always OFF) SW1-5 Reserved (Always OFF) 1 2 3 4 5 6 7 8 SW1-2 Display/Hide the OSD SW1-6 Reserved (Always OFF) SW1-3 Reserved (Always OFF) SW1-7 Reserved (Always OFF) SW1-4 Reserved (Always OFF) SW1-8 Reserved (Always OFF) •...
  • Page 6 Pin Assignments and Signal Names for Analog RGB Signal Name Signal Name Signal Name Pin Location 1 Analog R 6 Return R 11 Reserved 2 Analog G 7 Return G 12 DDC DATA 3 Analog B 8 Return B 13 H. SYNC 4 Reserved 9 Reserved 14 V.
  • Page 7 Pin Assignments and Signal Names for DVI-D Signal Name Signal Name Signal Name Pin Location TMDS DATA2- TMDS DATA1- TMDS DATA0- TMDS DATA2+ TMDS DATA1+ TMDS DATA0+ TMDS DATA2 TMDS DATA1 TMDS DATA0 SHIELD SHIELD SHIELD TMDS CLOCK DDC Clock SHIELD DDC Data 23 TMDS CLOCK+...
  • Page 8: Installation

    Pin Assignments and Signal Names for Serial Interface Pin No. Signal Name Condition Pin Location Carrier Detect Receive Data (FP->Host) Send Data (FP<-Host) Data Terminal Ready Ground Data Set Ready Request to Send (FP<-Host) Clear to Send (FP->Host) (Used internally) The CD, DTR, and DSR are connected together inside of the FP.
  • Page 9 Unit: mm [in] Panel +0.04 441.5 [17.38 ≤ 3[0.12] Panel thickness 1.6[0.06] to 10[0.39] (2) Check that FP has installation fasteners. Insert the FP from the front. • Installation gasket must be used even though it is not necessary for its environment. For installation, refer to the FP- 3710K Series User Manual.
  • Page 10 Electrical Specification Item Specification Rated Voltage AC100V ~ AC240V Allowable Voltage AC85V ~ AC264V Rated Frequency 50 / 60HZ Allowable Frequency Range 40Hz - 72Hz 1cycle or less (Voltage drop interval must be 1s Allowable Voltage Drop or more.) AC100V 1.1A or less (TYP 0.75A) Current Consumption AC240V 0.7A or less (TYP 0.44A) In-Rush Current...
  • Page 11 • Kind of power cord is FKC 2,5/3-STF-5,08 which are Phoenix Contact products. Use the following wiring for FP. Those are Phoenix Contact products. Recommended Drivers SZS 0.6X3.5 (1205053) AI 0.75-10GY(3201288) AI 1-10RD(3200182) Recommended stick end terminal AI 1.5-10BK(3200195) AI 2.5-12BU(3200962) Crimp tool for recommended CRIMPFOX ZA 3 (1201882) stick end terminal...
  • Page 12: Power Supply Cautions

    USB Cable Clamp Removal Feature (1) Push in the cable clamp’s stopper until the cable clamp is unlocked, then remove the clamp. (2) Disconnect the USB cable. Power Supply Cautions Please pay special attention to the following instructions when connecting the power cord terminals to the FP unit.
  • Page 13 Item Function Color Settings Adjusts the contrast and the brightness. Screen Settings Adjusts the display position of the screen. Custom Display Adjusts Sharpness and the backlight brightness. System Settings Changes settings such as activating the click sound. All Reset Resets the current OSD value to the default value. Input Source Switches Analog RGB and DVI-D.
  • Page 14 • In the OSD, pressing the button applies the set value and enables the setting. The set value won’t be canceled unless the power is turned OFF or the value is reset. If the power is turned OFF without saving the set value, that data will disappear.
  • Page 15 System Settings Selection of the change item Adjustment button Enables/disables the click sound. With this Click Tone parameter, the sound level can also be adjusted. (Default value: OFF <Click sound disabled>) 720x400 Mode When an input data resolution of 720 x 400 is used in the VGA text mode, set this parameter to ON.
  • Page 16 All Reset Resets all the settings and then returns to the top menu. Cancels the setting and then returns to the top menu. Input Source Switches Analog RGB and DVI-D, and quits the OSD. Cancels the setting and then returns to the top menu. Auto Adjust (Analog RGB only) Applies the setting and then returns to the top menu.
