Summary of Contents for Blaupunkt ACD 9430

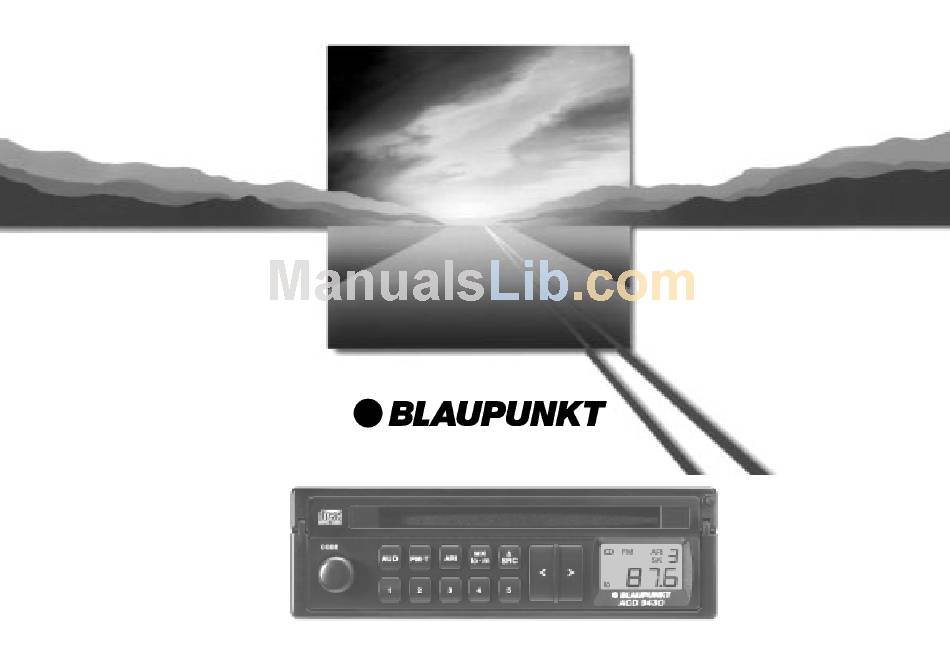

- Page 1 Operating Instructions ACD 9430...
- Page 2 Radio QuickOut a QuickOut...
-
Page 3: Front Panel Description
Front Panel Description 1 ON/OFF Switch on the set by turning knob 1. 2 AUD button (sound control/broader interior sound impression) BAS – Adjustment of the low frequen- cies via buttons </> 7. TRE – Adjustment of the high frequen- cies via buttons </>... -
Page 4: Table Of Contents
Contents Front Panel Description ... 12 Important information ... 13 What you need to know! ... 13 Traffic safety ... 13 QuickOut ... 13 Installation/connection ... 14 Anti-theft coding ... 14 Wrong code number entered ... 14 Switching the code system on ... 14 Restart following interruption of power supply ... -
Page 5: Installation/Connection
Do not connect the loudspeaker outputs to ground! Only use the accessory and replacement parts approved by Blaupunkt. Anti-theft coding The car radio comes standard with the code system deactivated. If the anti-theft coding system is on while the power supply to the unit is interrupted (e.g. -
Page 6: Restart Following Interruption Of Power Supply
• Turn the set on. “Cod” will appear in the display. • Enter the code number given in the Blaupunkt car radio passport and con- firm: See example “Restart following interruption …”. The code system is now deactivated. Amplifier Section... -
Page 7: Balance And Fader Control
Balance and Fader Control Balance control To balance the sound level left/right: Press the AUD button 2 until bal is • shown on the display. Press rocker switch </> 7 on the left or right to adjust the sound impression according to your personal preferences. -
Page 8: Memorizing A Station
2 secs. but less than 8 secs., the set swit- ches over to stereo and the stereo-symbol (h) lights up in the display. When the car radio is switched on it is always in stereo mode. Memorizing a Station You can memorize two FM stations with each of the preset buttons :. -
Page 9: Automatic Start Of The Station Seek Operation
Now press the ARI button 4. The ARI • indication lights up on display 9 c. • Then tune in to one of the traffic stati- ons of your area. Switch over to CD operation by either • inserting a disk, or - if a CD is already inserted by pressing the SRC button 6. -
Page 10: Programming With Dsc
Programming with DSC The car radio’s DSC function (Direct Soft- ware Control) allows you to adjust the seek tuning sensitivity for FM and the volume of ARI traffic messages. Adjusting the seek tuning sensitivity: Press the lo•m 5 button longer than •...
