ITS Telecom P790 Operating Instructions Manual

Precision 2-channel hand-held measuring instrument
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
P790
Precision 2-channel hand-held
measuring instrument
Operating Instruction

Advertisement

loading
Need help?

Need help?

Do you have a question about the P790 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ITS Telecom P790

Summary of Contents for ITS Telecom P790

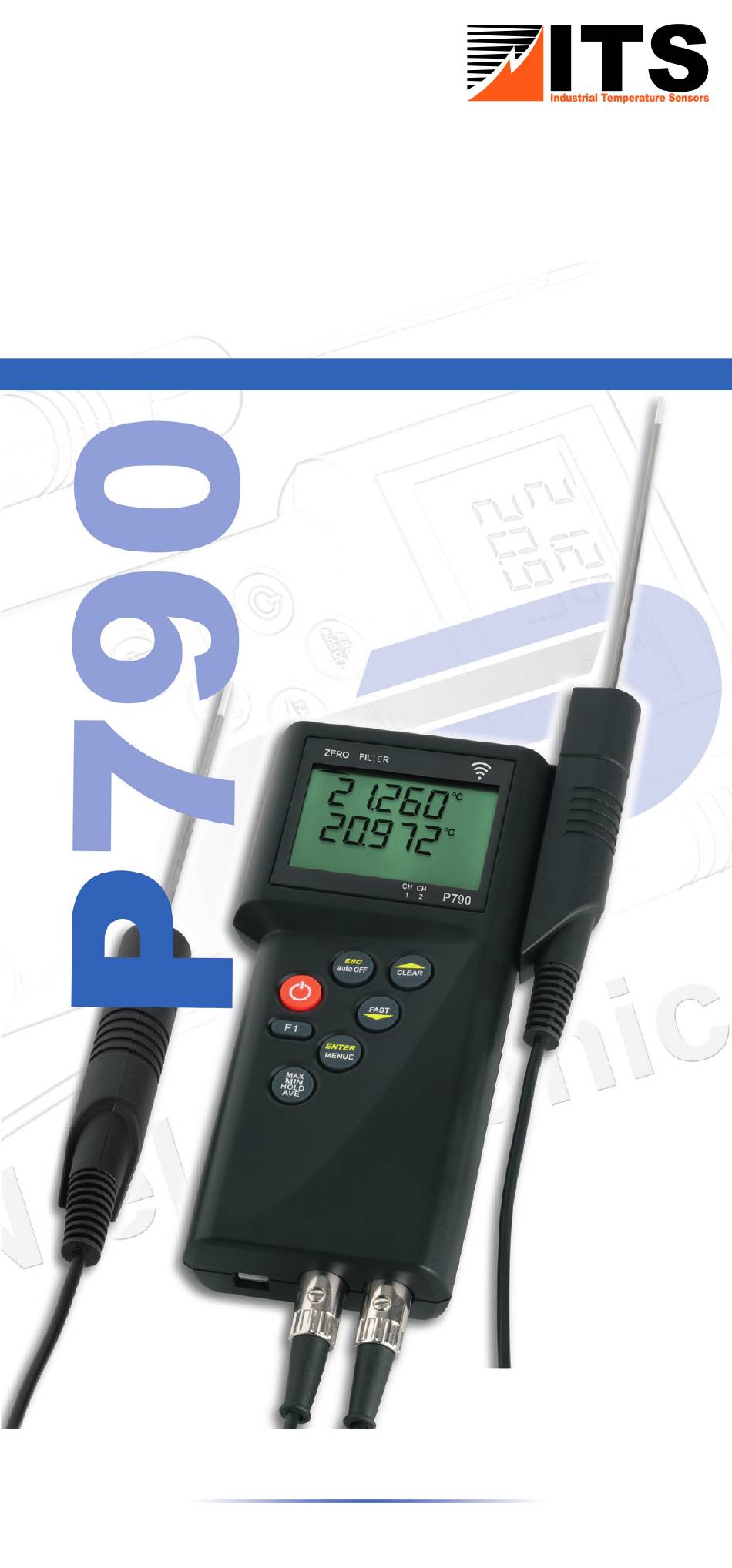

  • Page 1 P790 Precision 2-channel hand-held measuring instrument Operating Instruction...
  • Page 2 1. Mounting device for probe handle 2. Retractable stand 3. Measuring port 1 4. Measuring port 2 5. USB PC interface port 6. Keyboard 7. Big LC-Display...
  • Page 3 Summary Menu structure 1. Handling Unit Prob L in 2 ChnI 1.1. General advices °C T1-T2 CoFF 1.2. Setting to work 1.3. Switch on/off °F oP 1 1.4. Menu 1.4.1. Measuring unit switching (Unit) oP 2 1.4.2 Automatische Fühlererkennung (Smartprobes) oP 3 1.4.3 Probe selection / (Prob) 1.4.4 Difference temperature (L in2)
  • Page 4 Measurement Probe selection LC-Display Suitable for these types The instruments offer five different calibration options: (Prob) of measuring instruments: 1) (CoFF): Standard characteristic curve ..........................(e.g. Pt100-resistance according EN60751) Temperature Pt100 (RTD) P700/P705/P750/P755/ 2) (oP 1): Calibration by code (2 x four digit code) is equivalent to a 2-point P770/P755-LOG/P770-LOG calibration.
  • Page 5 3) Calibration by physical standard references / oP 2 5) Smart EEprom-probes with internal calibration (AUTO-Detection) / oP 4 Use the up and down keys ( ) to select oP 2. Push (ENTER/MENUE) to The Option 4 will be activated automatically by using Smart EEprom probes. This confirm.
  • Page 6 1.4.8 Bluetooth activation/deactivate / (bLE) 1.7 AUTO-OFF-function bLE = Bluetooth = off / on dAoF = Disable Auto-off To activate or deactivate bluetooth push (ENTER/MENUE). Use the up and EAoF = Enable Auto-off down keys ( ) to select bLE. Push again (ENTER/MENUE). Use the up key Press (ESC/AUTO-OFF) key once.
  • Page 7 3. Error Codes By displaying the following error codes the instrument support the operation of the instrument: Error Meaning oPEn no probe or wrong probe is connected „too low“ underflow of the measuring rang „too high“ exceeding of the measuring range low battery (battery is completely exhausted) low battery (battery is completely exhausted) low battery (battery is completely exhausted)
