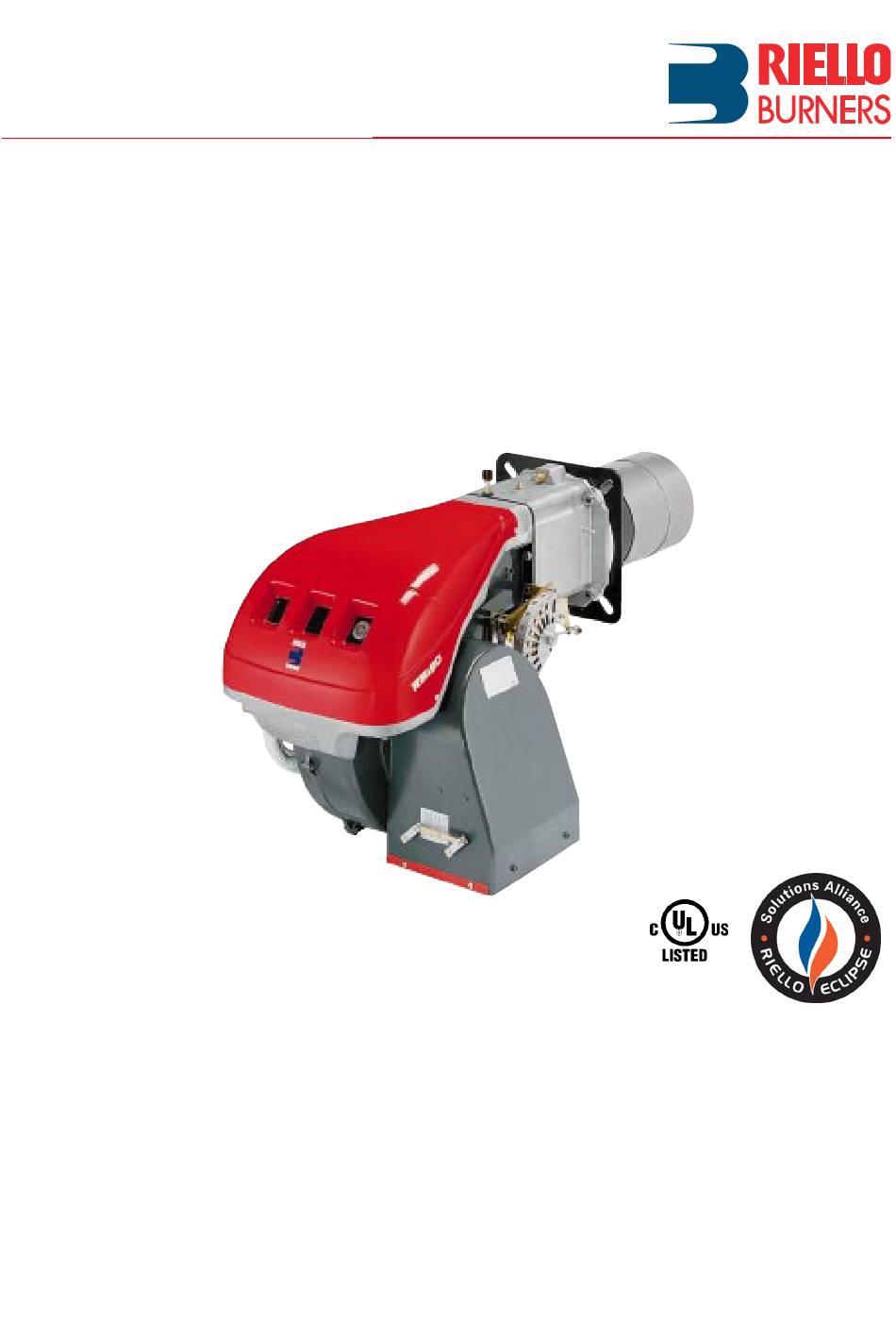

- Page 1 Installation, use and maintenance instructions 安装、调试、维修手册 燃 气 燃 烧 器 Gas Burners RS 190/M 平滑两端火或比例调节运行 Low-High-Low or Modulating Operation C6505057...
-
Page 2: Table Of Contents
CONTENTS WARNING 目录 技术参数 If you smell gas: TECHNICAL DATA ......page 3 燃烧器型号... -
Page 3: Technical Data
C9627300 (3787672) 208-230/460/3/60 Burner mounted C9627301 (3787672) 575/3/60 Remote panel ACCESSORIES (optional): • Kit for LPG operation: The kit allows the RS 190/M burners to operate on LPG. BURNER RS 190/M Output 516 - 2542 MBtu/hr 1761 - 8673 Code 3010276 •... -
Page 4: Burner Description
BURNER DESCRIPTION (A) 1 Combustion head 2 Ignition electrode 3 Screw for combustion head adjustment 4 High gas pressure switch 5 Sleeve 6 Servomotor controlling the gas butterfly valve and of air damper (by means of a variable profile cam mech- anism). -
Page 5: Firing Rates
FIRING RATES (A) During operation, burner output varies between: RS 190/M • MAXIMUM OUTPUT , selected within area A, • and MINIMUM OUTPUT , which must not be lower than the minimum limit in the diagram. RS 190 /M = 1781 MBTU/h = 522 kW... -
Page 6: Gas Pressure
GAS PRESSURE RS 190/M The adjacent table shows minimum pressure losses ∆p (“ WC) along the gas supply line depending on the maximum burner output operation with natural gas. MBtu/hr Column 1 Pressure loss at combustion head. 4848 1421 2.76 0.71... -
Page 7: Installation
Drill the combustion chamber mounting plate as shown inch in (A). The position of the threaded holes can be marked using the burner head gasket supplied with the burner. RS 190/M 1 / 16 “ 25 / 32 “ - 14 1 / 2 “... -
Page 8: Combustion Head Adjustment
COMBUSTION HEAD ADJUSTMENT Installation operations are now at the stage where the blast tube and sleeve are secured to the boiler as shown in fig. (B). It is now a very simple matter to set up the combustion head, as this depends solely on the MAX output developed by the burner. -
Page 9: Gas Piping
GAS PIPING • The main gas train must be connected to the gas attachment 1)(A), using flange 2), gasket 3) and screws 4) supplied with the burner. • The gas train can enter the burner from the right or left side, depending on which is the most convenient, see fig. -
Page 10: Adjustments Before First Firing
ADJUSTMENTS BEFORE FIRST FIRING LOW GAS PRESSURE SWITCH HIGH GAS PRESSURE SWITCH AIR PRESSURE SWITCH Adjustment of the combustion head, and air and gas deliveries has been illustrated on page 8. In addition, the following adjustments must also be made: Open manual valves up-stream from the gas train. -
Page 11: Servomotor
SERVOMOTOR The servomotor gives simultaneous regulation of the air damper through the variable cam profile 4)(F) and the gas butterfly valve. It rotates by 130° in approx. 35 s. The factory settings must not be changed for the first fir- ing, check that they comply with the details below. -
Page 12: Burner Starting
BURNER STARTING Close the control curcuit, with the switch in fig. C) in the Position jumpers Trim potentiometers AUTO position. On firing (pilot burner and main valve) turn the switch (C) to MAN and the switch 1)(E) in the AUT position. MAXIMUM OUTPUT Slide switch Using button (B), "increase output"... -
Page 13: Air Pressure Switch
AIR PRESSURE SWITCH (A) AIR PRESSURE SWITCH Adjust the air pressure switch after having performed all other burner adjustments with the air pressure switch set to the start of the scale (A). With the burner operating at min. output, increase adjust- ment pressure by slowly turning the relative dial clock- wise until the burner locks out. -
Page 14: Maintenance
MAINTENANCE FLAME INSPECTION WINDOW Combustion The optimum calibration of the burner requires an analy- sis of the flue gases. Significant differences with respect to the previous measurements indicate the points where more care should be exercised during maintenance. Gas leaks Make sure that there are no gas leaks on the pipework between the gas meter and the burner. -
Page 15: Factory Wiring Diagram - Burner Mounted Lfl
Burner RS 190/M • Models RS 190/M leave the factory preset for 208-230 V power supply. • If 460 V power supply is used, change the motor connection from delta to star and change the setting of the thermal cut-out as well. -
Page 16: Field Wiring Diagram - Burner Mounted Lfl
Wire size when not indicated: AWG18. burner amperage draw. KEY TO LAYOUT (A) • The RS 190/M burners leave the factory preset for 208-230 V - Burner manual stop switch power supply. If 460 V power supply is used, change the fan motor... -
Page 17: Factory Wiring Diagram - Remote Panel
Factory Wiring Diagram RS 190/M with remote control panel D2397 ELECTRICAL SYSTEM LAYOUT (B) Burner RS 190/M The flame safeguard is in remote panel. See the internal electrical systems of the remote panel in order to have the complete wiring diagram. -
Page 18: Appendix - Burner Firing Rates According To Air Density
APPENDIX - Burner firing rates according to air density CORRECTION FACTOR average barom. above sea level Air temperature pressure °F (°C) “ W.C. mbar 0 (0°C) 41 (5°C) 50 (10°C) 59 (15°C) 68 (20°C) 77 (25°C) 86 (30°C) 104 (40°F) 1013 1,087 1,068... -
Page 19: Siemens Lfl Control Sequence Of Operation
BURNER OPERATION Full Modulation BURNER STARTING • Load control close. Fan motor starts. • Servomotor starts: 130° rotation to right, until contact is made on cam 1)(A) page 12. The air damper is positioned to MAX. output. • Pre-purge stage with air delivery at MAX. output. •... -
Page 20: Siemens Lfl Troubleshooting Guide
BURNER FAULTS Control program under fault In case of any disturbance, the sequence mechanism stops and with it the lock-out indicator. The symbol above the reading mark of the indicator gives the type of disturbance: conditions and lock-out indication No start, e.g. because one contact is not closed. Lock-out during or after control program sequence due to extraneous light (e.g. -
Page 21: Burner Start Up Report
BURNER START UP REPORT Model number: Serial number: Project name: Start-up date: Installing contractor: Phone number: GAS OPERATION Gas Supply Pressure: : Low Fire High Fire Main Power Supply: : Low Fire High Fire Control Power Supply: CO: Low Fire High Fire Burner Firing Rate: : Low Fire... - Page 24 Reliable Combustion Solutions 1-800-4-RIELLO 35 Pond Park Road 2165 Meadowpine Blvd. Hingham, Massachusetts, Mississauga, Ontario, 1-800-474-3556 U.S.A. 02043 Canada L5N 6H6 www.riello-burners.com...
