Label Mounting Instructions - Mod 102+ Manual

The labels are meant to be placed over their respective chassis holes indicated below. There are
four labels for the front panel and two labels for the rear panel.
Tip: For longer lasting labels with a plexi-like appearance, add a transparent lamination over the
front of the labels by covering them with clear packing tape prior to cutting the labels.
Cutting the Circle

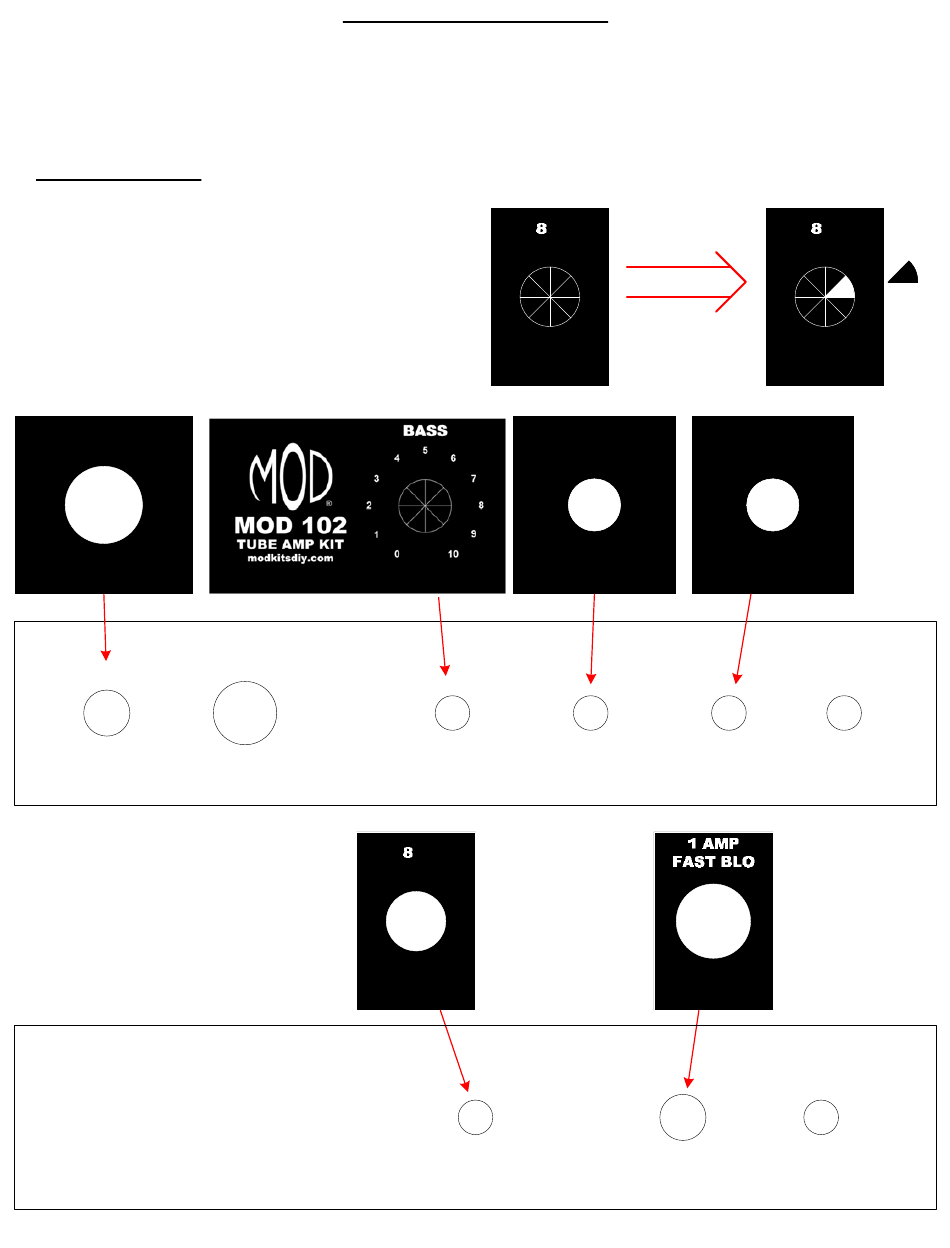

Each circle on the labels is sectioned into eight
pieces to help you cut out a nice circular shape
for placement over its respective chassis hole.
1) Use a razor or x-acto knife to cut along
each line first.
2) Then cut along the circumference, section
by section, removing one sectional piece at a
time.
