Section 3 - Mounting Of Rear Components; Section 4 - Mounting Terminal Strips And Components - Mod 102+ Manual

When all three pots are mounted, turn their shafts all the way
counter-clockwise. (Once you have done this, you can mount the
knobs while pointing to "0" and tightening their set screws).

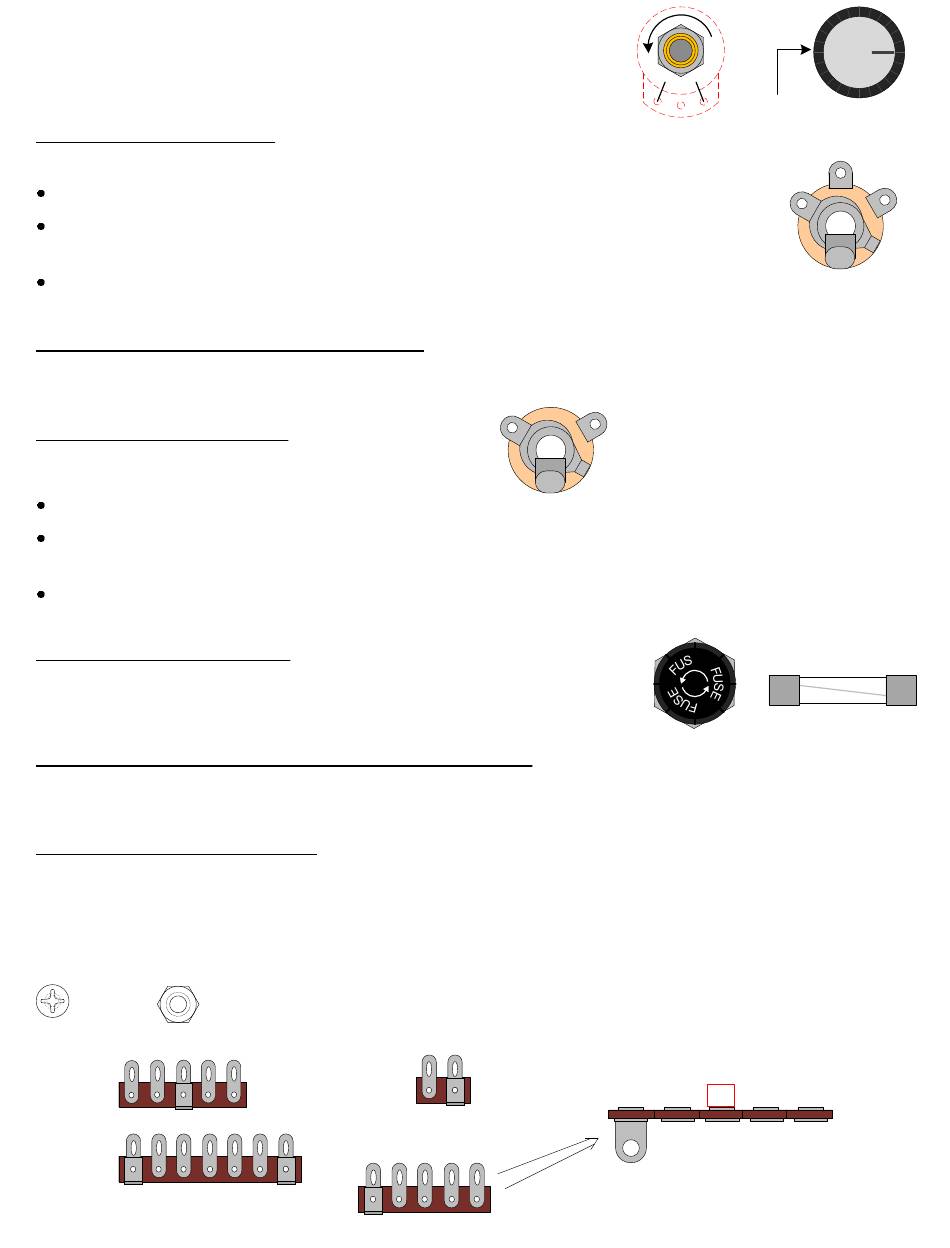

Step 4 – Mount the Input Jack
Drawing 4 shows where to mount the input jack.
Remove the nut and flat washer from the input jack.
Put one of the 3/8" lock washers on the jack bushing and mount it to the front panel
with the middle ("shunt") lug facing up.
Put the flat washer and nut on the bushing and tighten.
SECTION 3 – Mounting of Rear Components
Please refer to Drawing 4.
Step 1 – Mount the Output Jack
Drawing 4 shows where to mount the output jack.
Remove the nut and flat washer from the input jack.
Put the remaining 3/8" lock washers on the jack bushing and mount it to the rear
panel with the solder lugs facing up.
Put the flat washer and nut on the bushing and tighten.
Step 2 – Mount the Fuse Holder
Drawing 4 shows where to mount the Fuse holder. You can also insert
the 1A fast blow fuse at this time.
SECTION 4 – Mounting Terminal Strips and Components
Please refer to Drawings 5 & 6.
Step 1 – Mount the Terminal Strips
Drawing 5 shows what you should see when you flip the chassis box over so that you are looking inside and
viewing from the rear side with the terminal strips in place. The terminal strips are labeled T1 – T6. (You
will be mounting all 6 terminal strips in this step).
Use #6 hardware and Drawing 5 to mount the 6 terminal strips in the same orientation as in the drawing.
(7) (7)
T1
T2
SLEEVE
T3
T4, T5, T6
11
ccw
0 10
Set screw
TIP
(1)
E
Note: Terminal strip terminals are numbered from left
to right with mounting bracket directed towards the
viewer and will be referred to with T6(3) meaning
terminal number 3 on "T6".
1 2 3
T6
(3)
SHUNT
SLEEVE TIP
(1)
4 5
