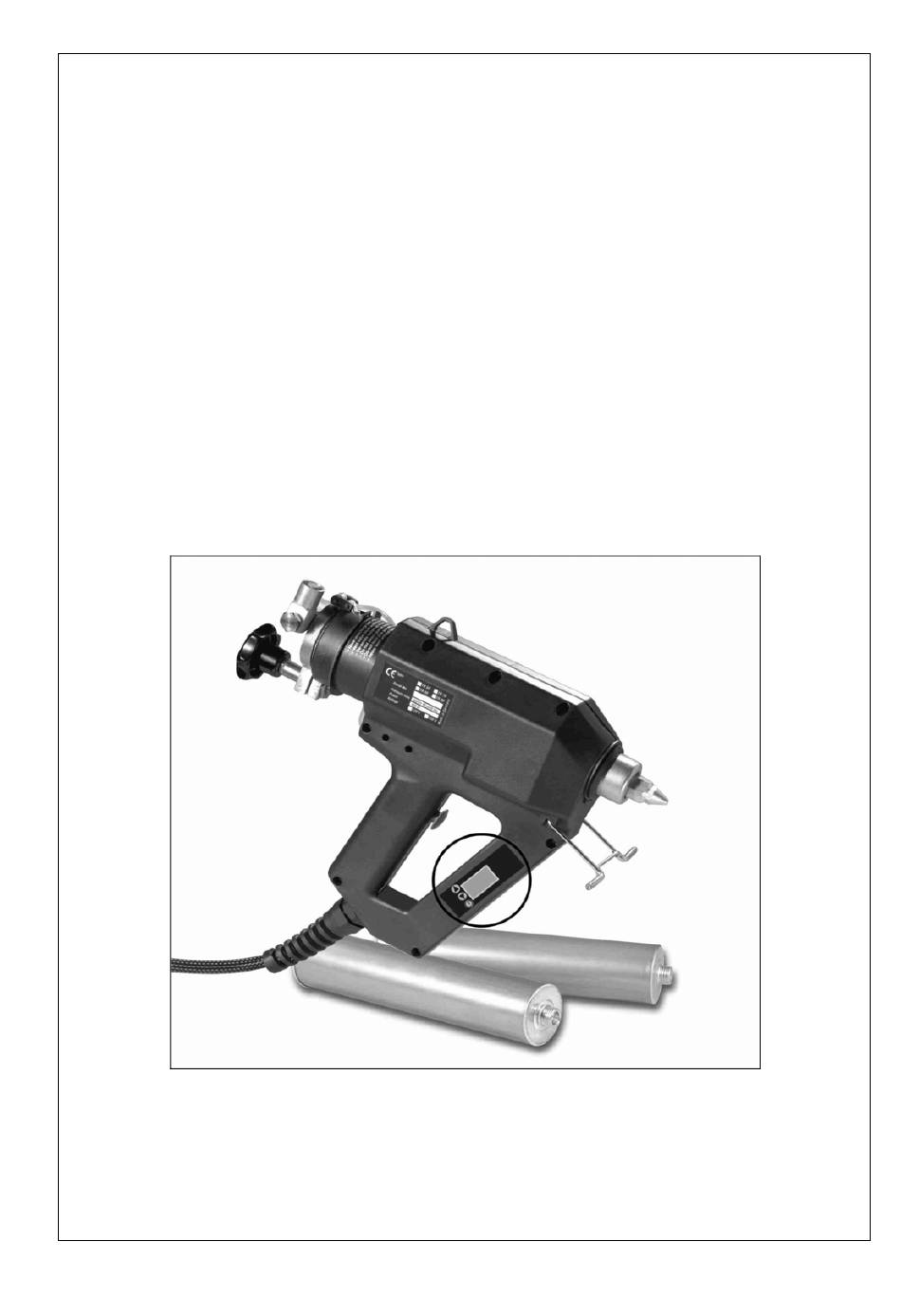

- Page 1 REKA III Operating Instructions Reka Hot-Melt Glue Gun TR 70 LCD Cartridge Glue Gun Art. Nr. 9106...
-
Page 2: Table Of Contents
REKA III Table of Contents Product Description ............Trouble-Shooting ............… General Safety Instructions .......... Start-up ..............….. Operation ................ Additional Information ..........EC-Conformity Certificate ........…. Exploded Views .............. 12 Spare Parts Legend ............Illustration for stand ……………………………………… Art. Nr. 9106... -
Page 3: Product Description
REKA III Dear customer, The glue gun you purchased will help you to glue parts together more easily and more rapidly. Before using the gun please read these instructions thoroughly. Product Description Proper Use The gun works with hot glue which is dispensed under pressure. Therefore, the glue gun should only be used by qualified people. -
Page 4: Trouble-Shooting
REKA III Trouble - Shooting Survey on Possible Fault Signals and Assistance in Trouble-Shooting In case of damage, send glue gun to Reka. We shall not be responsible for any repair made by the customer. Problems Possible Causes/ Trouble-Shooting Faulty Operation •... -
Page 5: General Safety Instructions
REKA III General Safety Instructions User’s Care and Diligence The Cartridge Glue Gun has been designed and fabricated according to the applicable harmonized standards and further technical specifications. So, it is state of art and ensures a maximum of safety. -
Page 6: Start-Up
REKA III Safety Measures in Case of Normal Operation The instrument must only be used by persons trained and instructed and being allowed to use it. They have to know the operating instructions and be able to work accordingly. Prior to each use, check the gun for visible damage and make sure that it is in perfect condition! Advise de-... - Page 7 REKA III To avoid risk of stumbling: Lay all instrument connections (cables, hoses, and lines) so that they do not cause any risk of stumbling (cable conduits, bridges)! Make supply connections and settings Connect the TR 70 LCD Glue Gun to the electric mains of 230 V / 110 V and a compressed air line of max. 6 bars.
- Page 8 REKA III As soon as the gun has warmed up, open cover (no. 13) by turning the star grip (no. 14) to the left. Before loading the cartridge (310 ml), mount enclosed adapter incl. nozzle, making sure that the cartridge has been opened.
-
Page 9: Operation
REKA III Operation The glue gun shall only be used/applied according to its intended use. Please see Section “General Safety Instructions“. Improper use of the gun may cause personal injury or material damage. Non-observance of the safety instructions when working with the gun may lead to serious burns. -
Page 10: Additional Information
Do you have any more questions or requests? We should be glad to help you. Please contact us at phone no. ++49-721-970 780 or fax no. ++49-721-705 069 Our mailing address is: Reka Klebetechnik GmbH & Co. KG. Siemensstr. 6 D - 76344 Eggenstein Germany e-mail: info@reka-klebetechnik.de... -
Page 11: Ec-Conformity Certificate
REKA III EC-Conformity Certificate Reka Klebetechnik GmbH & Co. KG, The Manufacturer: Siemensstr.6 D-76344 Eggenstein certifies that the design of the: TR 70 LCD Cartridge Glue Gun is in conformity with the regulations of EC 73/23/EEC 89/392/EEC revised Guidelines: 91/368 EEC 89/336 EEC... -
Page 12: Exploded Views
REKA III Art. Nr. 9106... -
Page 13: Spare Parts Legend
REKA III Legend for spare parts - Cartridge Glue Gun TR 70 LCD - No. 5355 – 220 V No. 5360 – 110 V 1 = 2958 Adapter 2 = 2505 Nozzle M 10 cpl. 5 = 2692 O-Ring SEV... -
Page 14: Illustration For Stand
REKA III Art. Nr. 9106...
