Glue Applicators MS 80 and MS 200
Translation from German to English
WWW.PAKARTE.COM
pakarte@pakarte.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reka MS 80
Summary of Contents for Reka MS 80

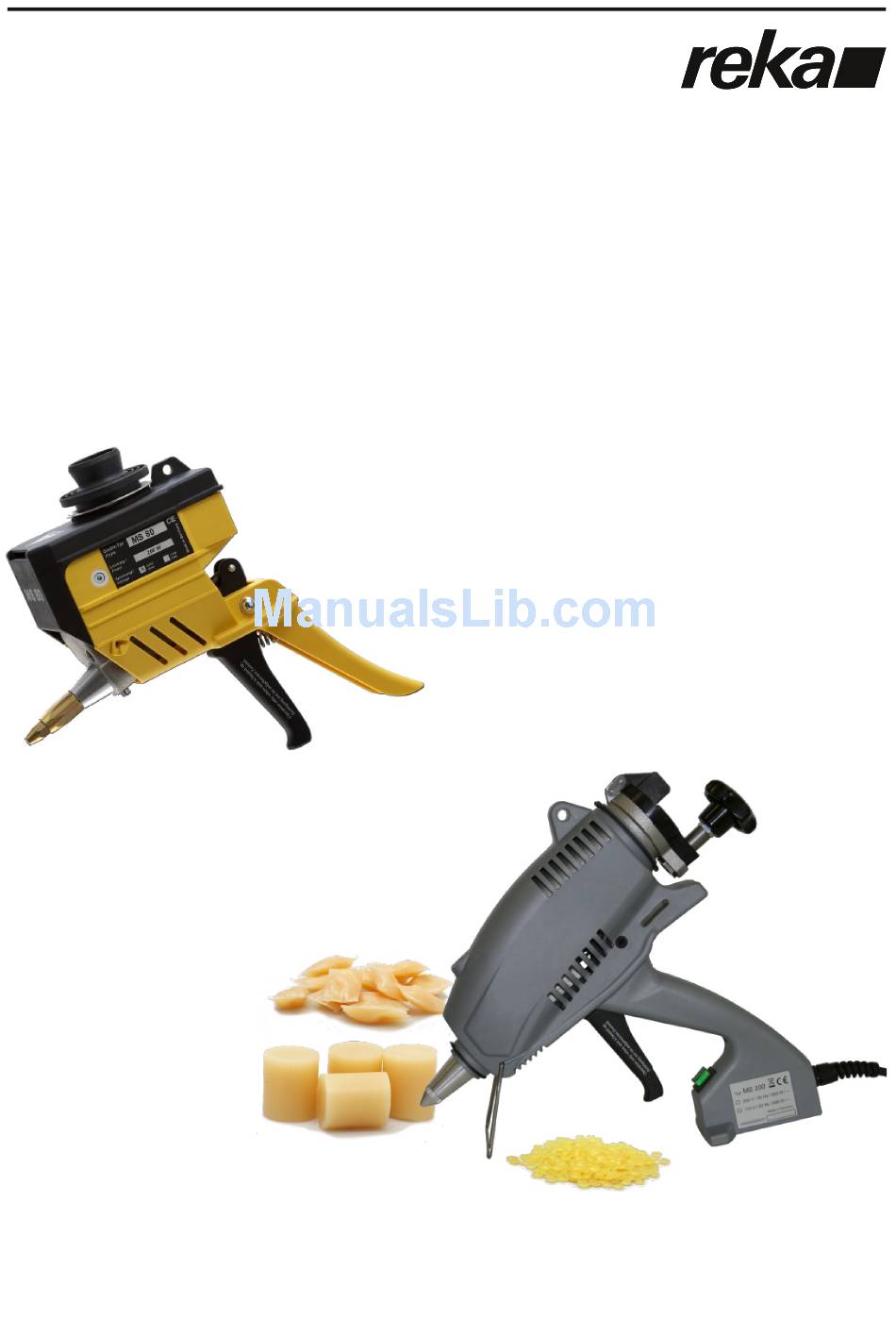

- Page 1 Product Manual Glue Applicators MS 80 and MS 200 WWW.PAKARTE.COM Translation from German to English pakarte@pakarte.com...
-
Page 2: Product Description
Product Description General Safety Instructions Safety Measures to be taken during Operation Start-up and Control Cleaning and Maintenance Trouble-Shooting Environmental Protection Additional Information EU Declaration of Conformity Spare Parts Technical Data Description Nozzle Wire Stand Trigger Plug Screw for Termperature Regulation Description Star Grip Plug... - Page 3 The following illustration shows where to find the serialnumber of the applicator: MS 200 MS 80 Eggenstein-Leopoldshafen, Germany, June 18th 2013 The applicator works with non reactive hot-melt glue which is dispensed by a mechanical conveying system. It is suitable for hot- melt from 1000 up to 15.000 mPas*.
- Page 4 The glue applicator has been designed and fabricated in This operating manual gives concrete safety instructions conformity with the applicable harmonized standards and to alert the user to remaining unavoidable hazards. additional technical specifications. So, it is state of the art These hazards imply dangers to and ensures maximum safety.
- Page 5 The equipment must only be used by trained, instructed Once the applicator has warmed up, nozzle and lid are very hot. and authorized persons. These persons must have read Never start working before fitting a nozzle first. the operating instructions and be able to work accordingly.
- Page 6 Never lay the hot-melt applicator on its side. Do not hold the nozzle top upward for too long. The glue guns MS 80 and MS 200 are factory set to heat Do not carry out overhead work. up to approximately 200 °C when switched on.
- Page 7 The MS 200 glue applicator must only be used to dispense non-reactive hot-melts with a viscosity of 1000 up to 15.000 mPas*. Never feed other materials, dirt or sharp objects like small fragments of metal. The hot-melt Wear protective gloves and safety glue applicator is only capable of working with all non- goggles whenever you work with the applicator.
- Page 8 The glue guns have a wire stand which is used to put Warning: risk of burns! If hot glue got into down the applicator. Reka recommends folding in the contact with your skin, cool it with cold wire stand when working with the applicator.
- Page 9 List of possible fault indications and assistance in trouble-shooting In case of damage, send the glue applicator to your supplier or directly to Reka indicating type and serial no. of your applicator. Self-made repairs void the warranty. WWW.PAKARTE.COM pakarte@pakarte.com...
- Page 10 Packing material used by Reka Klebetechnik can be recycled completely. Please take instructions for the disposal of hot-melt glues and hot-melt cartridges from the respective safety specifications.
- Page 11 This declaration of conformity shall get invalid, if the product is modified, extended, or otherwise changed without express approval of Reka Klebetechnik ● and/or other components than accessories of Reka Klebetechnik are fitted, ● and if the product is not connected or used as intended.
- Page 12 Description Article No. Lid MS 80 cpl. 3885 O-Ring 28x3,5 3827 Nozzle 1,75mm 3911 Stand MS80 3882 Description Article No. Nozzle 2,0mm 2977 Wire Stand MS 200 3345 Lid MS 200 cpl. 3436 (incl. O-Ring 40x3 / 2603) Locking MS 200 cpl.
- Page 13 MS 80 Article Number 5551 (230 V) 5560 (120 V) Weight 850 g Power Supply 230 V / 50 Hz 120 V / 60 Hz Power Consumption 200 Watt 200 Watt Current Consumption 0,9 A Degree of protection Class of protection...
