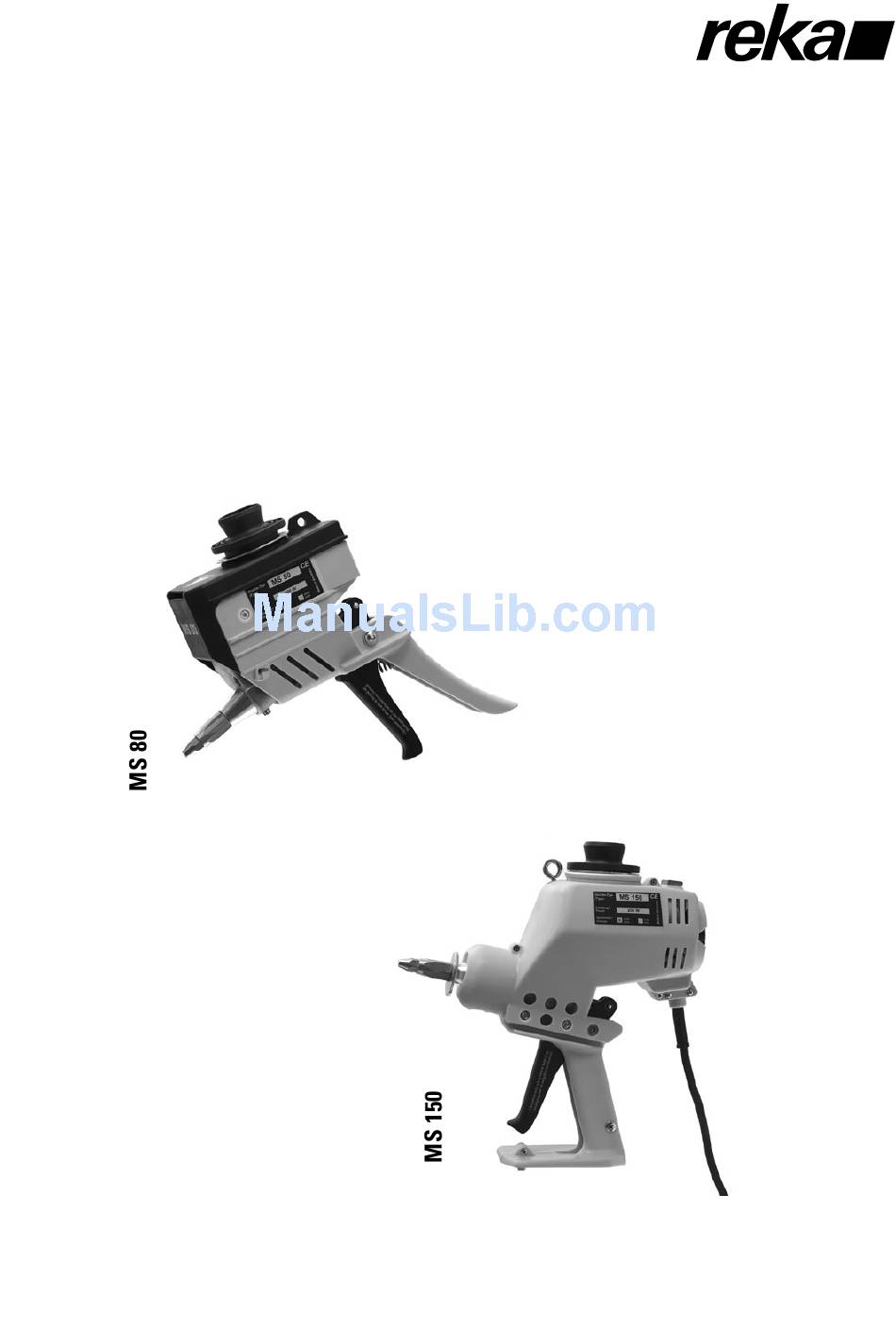

- Page 1 Operating Instructions for Reka Hot-Melt Glue Applicators...
-
Page 2: Table Of Contents
Table of Contents Product Description General Safety Instructions Safety Measures to be taken during Operation Start-up and Control Cleaning and Maintenance Trouble-Shooting Environmental Protection CE Declaration of Conformity Glue Applicators Spare Parts | Technical Data | Accessories MS 80 MS 150... -
Page 3: Product Description
Product Description Dear customer, the glue applicator you purchased will help you to glue parts together more easily and more rapidly. To ensure an optimum usage of the glue applicator we recommend that you read these instructions thoroughly before using the applicator for the first time. -
Page 4: General Safety Instructions
General Safety Instructions Care and Diligence of the User Safety Symbols The glue applicator has been designed and fabricated in This operating manual gives concrete safety instructions conformity with the applicable harmonized standards and to alert the user to remaining unavoidable hazards. These additional technical specifications. -
Page 5: Safety Measures To Be Taken During Operation
Notify detected defects to your superior immediately. Safety Instructions for the Operation of the MS 80 and MS 150 Hot-Melt Glue Applicators • Never direct the glue jet towards people. -
Page 6: Start-Up And Control
Start-up and Control Glue Applicator MS 80 The MS 80 glue applicator is factory-set to 190 °C. The temperature is infinitely adjustable at the rear side of the Avoid accidents by stumbling – Lay all cables, hoses instrument, using a screw driver. The right-end stop is and conducts so that they will not cause any risk of the maximum temperature of 200 °C. - Page 7 Applying Hot-Melt Replacement of Nozzles Wear protective gloves and safety goggles when- Warning: risk of burns! ever you work with the applicator. When your skin got into contact with hot glue, cool it with cold water immediately. Do not try to remove the hot-melt from the skin first.
-
Page 8: Cleaning And Maintenance
Hot-melts on a polyamide basis are particularly sensitive. If the glue has coked, the applicator with should be cleaned with REKA cleaning liquid (article 3519). Never clean the applicator with solvent, benzine, benze- ne, toluene, acetone, turpentine, etc. -
Page 9: Trouble-Shooting
Trouble-Shooting List of possible fault indications and assistance in trouble-shooting In case of damage, send the glue applicator to Reka, indicating type and serial no. of your applicator. We shall not be responsible for any repair made by yourselves. Fault... -
Page 10: Environmental Protection
Reka packing material can be recycled completely. Please take instructions for the disposal of hot-melt glues and hot-melt cartridges from the respective safety datasheet. -
Page 11: Ce Declaration Of Conformity
IEC 61000 This declaration of conformity shall get invalid, if the product is • modified, extended, or otherwise changed without express approval of Reka Klebetechnik • and/or other components than accessories of Reka Klebetechnik are fitted, • and if the product is not connected or used as intended. -
Page 13: Glue Applicators
Reka Heißklebepistolen Reka Hot-Melt Glue Applicators Ersatzteile | Technische Daten | Zubehör Spare Parts | Technical Specifications | Accessories... - Page 15 Legend for Glue Applicator MS 80 – Art. 5551 (230 V), 5560 (120 V) Item Article Item Article 3859 Casing cpl. 3858 Bend protection 3861 3791 O-ring 20x2,5 3911 Nozzle No. 2 3827 O-ring 28x3,5 3759 Exit piece 3762 Piston cpl.
- Page 17 Conveying system Mechanics Length of electric cable 1,8 m Recommended melts Hot-melt granulate and pillows Accessories (optional) Balancer art. 3544 Download our full nozzle range at www.nozzles.reka-klebetechnik.de More accessoiries like cleaning liquid or a funnel can be found at www.reka-klebtechnik.de...
- Page 18 Händler / Dealer Reka Klebetechnik GmbH & Co. KG Siemensstraße 6 D-76344 Eggenstein Telefon +49 (0)721/97 07 80 Telefax +49 (0)721/70 50 69 E-Mail: sale@reka-klebetechnik.de Internet: http://www.reka-klebetechnik.de...
