Daikin RC50PRV16 Removal Procedure

Daikin RC50PRV16 Removal Procedure

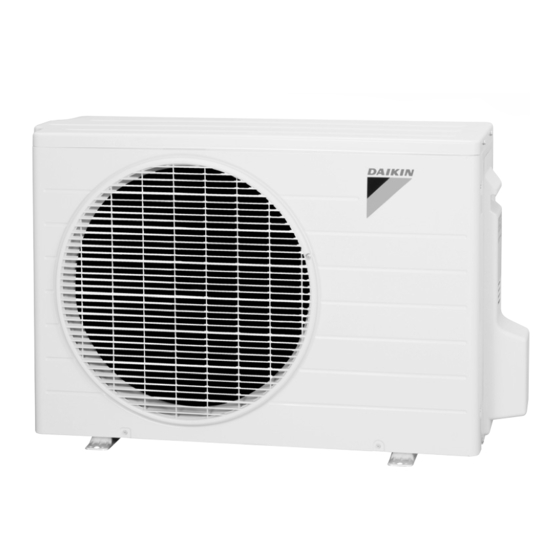

Outdoor unit

Advertisement

Si011360EC
REMOVAL
PROCEDURE
S E R V I C E
M A N U A L
4.2/5.0/6.0 kW Class
Outdoor Unit
Non-Inverter
Pair Type

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC50PRV16 and is the answer not in the manual?

Questions and answers

Dharmendra kumar
March 10, 2025

कितने टन का है

1 comments:
Mr. Anderson
March 10, 2025

The Daikin RC50PRV16 is listed under the "4.2/5.0/6.0 kW Class Outdoor Unit" category. Since 1 kW is approximately 0.284 tons of refrigeration, the RC50PRV16, which belongs to the 5.0 kW class, has a capacity of approximately 1.42 tons.

This answer is automatically generated

Summary of Contents for Daikin RC50PRV16

  • Page 1 Si011360EC REMOVAL PROCEDURE S E R V I C E M A N U A L 4.2/5.0/6.0 kW Class Outdoor Unit Non-Inverter Pair Type...
  • Page 2 Service Manual Removal Procedure Outdoor Unit Cooling Only RC50PRV16 RF50PRV16 RQ50PRV16 RC60PRV16 RF60PRV16 RQ60PRV16 RC50QRV16 RF50QRV16 RQ50QRV16 RC60QRV16 RF60QRV16 RQ60QRV16 RC50QRV161 RF50QRV161 RC60QRV161 RF50QRV1625 RQ50RRV162 RC50QRV1615 RF60QRV1625 RQ60RRV162 RC60QRV1615 RQ50RRV1625 RF50RRV161 RQ60RRV1625 RC42RRV162 RF60RRV161 RC50RRV161 RF50RRV1615 RQA50QRV16 RC50RRV162 RF60RRV1615 RQA60QRV16...
  • Page 3: Table Of Contents

    Si011360EC Table of Contents 1. Outer Panels ...................2 2. Outdoor Fan / Fan Motor.................3 3. Electrical Component ASSY ..............5 4. Sound Blanket / Capillary Tube...............9 5. Compressor ASSY ................11 Note: The illustrations may be slightly different depending on the model. Removal Procedure...
  • Page 4: Outer Panels

    Outer Panels Si011360EC 1. Outer Panels Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the 4 screws, Top panel and then the top panel. Remove the 7 screws of the front panel.
  • Page 5: Outdoor Fan / Fan Motor

    Si011360EC Outdoor Fan / Fan Motor 2. Outdoor Fan / Fan Motor Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Pull out the 2 terminals (red, white) from the from fan motor: capacitor (C1).
  • Page 6 Outdoor Fan / Fan Motor Si011360EC Step Procedure Points Remove the screw, and Be careful so as not to then the fan motor damage the top part of the fixing frame. outdoor heat exchanger fins. When reassembling, put the fan motor lead wire through the back of the fan motor to avoid any entanglement with the outdoor fan.
  • Page 7: Electrical Component Assy

    Si011360EC Electrical Component ASSY 3. Electrical Component ASSY Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points 1. Remove the right side The stop valve cover has 3 Stop valve cover panel.
  • Page 8 Electrical Component ASSY Si011360EC Step Procedure Points Remove the 2 screws on the right side (lower). Remove the 3 screws on the rear side. (R18995) Unfasten the hook on When reassembling, make Hook the back. sure the hook is securely fastened.
  • Page 9 (R23470) Capacitor (C1) Pattern 1: RC50PRV16, RQ60PRV16 from fan motor: from compressor(R): blue from terminal board 2: blue from compressor(S): from fan motor: white (R23471) Removal Procedure...
  • Page 10 Electrical Component ASSY Si011360EC Step Procedure Points Pattern 2: RC60PRV16, RC-Q Series, RC-R Series, RF Series, RQ50PRV16, RQ-Q Series, RQ-R Series, RUF Series from compressor(R): from fan motor: blue from terminal board 2: blue from compressor(S): from fan motor: white (R23472) Remove the screw, and Electrical component ASSY...
  • Page 11: Sound Blanket / Capillary Tube

    Si011360EC Sound Blanket / Capillary Tube 4. Sound Blanket / Capillary Tube Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.
  • Page 12 Sound Blanket / Capillary Tube Si011360EC Step Procedure Points Remove the protection Protection net net. (R19495) Remove the putties, if any. Heat up the 2 brazed parts and remove the capillary tube. Capillary tube Brazed parts (R19496) The shape of the capillary tube varies depending on the model.
  • Page 13: Compressor Assy

    Si011360EC Compressor ASSY 5. Compressor ASSY Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.
  • Page 14 Compressor ASSY Si011360EC Step Procedure Points Disconnect the Compressor lead wire Gasket compressor lead wires. Remove the gasket. (R19498) Pattern 2: Pattern 1: C (U): white, S (V): red, R (W): blue C (U): white, S (V): red, R (W): blue (R20989) (R20298) Pattern 3:...
  • Page 15 Si011360EC Compressor ASSY Step Procedure Points Remove the 3 screws, Partition plate and then the partition plate. Hook (R19499) Remove the 3 nuts of the compressor. Compressor (R19501) Remove the putties, if any. Heat up the brazed part Suction side of the discharge side pipe and disconnect.
  • Page 16 Revision History Month / Year Version Revised contents 11 / 2013 Si011360E First edition 10 / 2014 Si011360EA Model addition: RF50/60PRV16 12 / 2015 Si011360EB Model addition: RC50/60QRV16, RC50/60QRV161, RCA50/60QRV161, RCD50/60QRV16, RF50/60QRV16, RF50QRV161, RFA50/60QRV16, RFD50/60QRV16, RQ50/60QRV16, RQA50/60QRV16, RQD50/60QRV16 06 / 2016 Si011360EC Model addition: RC50/60QRV1615, RC42/50/60RRV162, RC50RRV161, RC42/60RRV1625, RC50RRV1615, RCA42/50/60RRV162,...
  • Page 17 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
