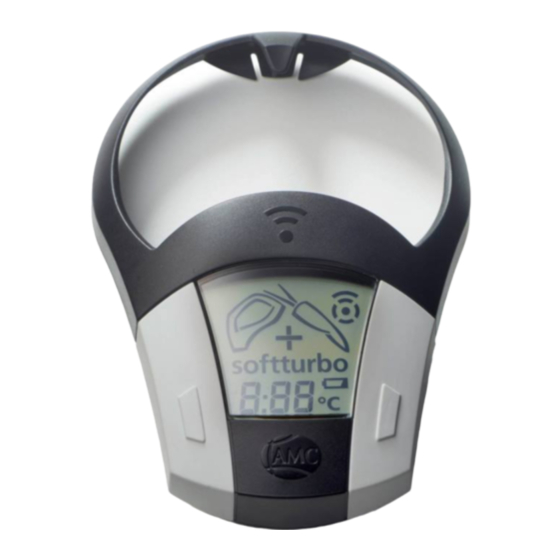

- Page 1 Eat better. Live better. Audiotherm Plus User manual The Premium Cooking System.
- Page 2 This manual applies for the AMC Audiotherm plus model (incl. Audiotherm mount), ƒ type 10040143A8400, battery type CR2032 The Audiotherm plus must be equipped with software version 500 or higher (see page 31 ƒ "What to do if …"). All the data shown in the display consist of random examples,...
-
Page 3: Table Of Contents
Place the Audiotherm on the Visiotherm, 13. What to do if … Visiotherm S or Visiotherm E Initialising the Audiotherm 14. AMC Customer Service Switch off the beep tone 15. Recipes Remove and switch off the Audiotherm 16. Tips und Tricks... -
Page 4: Intended Use And Safety
Depending on appliance used, the instructions contained in user manuals for the „Visiotherm“, „Secuquick softline“, „EasyQuick“ and/or „Navigenio“ must also be followed. Suitable pots and accesories AMC lid with suitable Visiotherm ƒ Secuquick softline with Visiotherm S ƒ... -
Page 5: Disposal
Right button (switches Audiotherm on and/or increases settings) Left button (switches Audiotherm on and/or decreases settings) Optical window Battery compartment Battery compartment cover Battery Audiotherm holder (not shown) The grey battery compartment cover (8) indicates that this is an Audiotherm Plus. - Page 6 Displays “carrot” symbol „steak“ symbol “steam” symbol „- Reduce“ symbol “+ Increase” or “Planned start” symbol soft or turbo quick cooking symbol “Cooking time” or “Planned start time” display, e.g. 30 minutes “P” setting 60°C keep warm function or reheat to 60°C “Initialise”...
-
Page 7: Functions
Functions When combined with a Visiotherm, an AMC lid, a Secuquick softline with Visiotherm S or an EasyQuick with Visiotherm E, the Audiotherm provides an aid for supervising the cooking process. Audible temperature monitoring The Audiotherm uses a beep to indicate when the heating temperature is reached ƒ... -
Page 8: Using The Audiotherm
3. Using the Audiotherm The battery is already in place upon delivery. Activation: Turn battery compartment cover to ➔ position “I”. A numeral appears briefly in the display ➔ (software version), followed by all readouts for 3 seconds, which are then switched off. The “Initialise”... -
Page 9: General Operating Instructions
The mode for the visually impaired can be switched off by repeating the previously specified steps. Beeps when switching the Audiotherm on and off Switch on: single beep ƒ Switch off: two rapid beeps ƒ Beeps that confirm the correct choice of window Positioned at roasting window/soft window and turning point: single pronounced beep ƒ... -
Page 10: Switching On And Setting The Cooking Time For Monitoring The Cooking Time
Switching on and setting the cooking time for monitoring the cooking time Press the right or left button twice ➔ A short (10 minutes) or a long (9 hours 59 ƒ minutes) cooking time is indicated. Accept the preset cooking time or press the ➔... -
Page 11: Initialising The Audiotherm
Initialising the Audiotherm After adjustment and placement on the Visiotherm, Visiotherm S or Visiotherm E: Turn the Audiotherm … ➔ The Initialising symbol briefly changes to the ƒ fix state and then goes out..until the required symbol (e.g. “steak”) ➔... -
Page 12: Audiotherm With Manual Visiotherm
6. Audiotherm with manual Visiotherm It is important that you follow the instructions in the user manual of the pot ƒ being used and the Visiotherm. The required switch functions are carried out automatically only when the ƒ Audiotherm operates together with the Navigenio at setting “A” (see Chapter 9). Temperature monitoring for roasting without the addition of fat Place empty pot on the cooker hob. -
Page 13: Monitoring The Temperature And Cooking Time When Cooking Without The Addition Of Water
When the temperature for turning (“turning point”) is reached (red indicator at 90°C): The beep sounds. ƒ Turn the meat and select the appropriate setting. ➔ For large or several pieces of meat, select the lowest ƒ setting. Switch off for a few pieces of meat (e.g. 1 or 2 pieces). ƒ... - Page 14 When the heating up temperature is reached (red indicator in the vegetable window). The beep sounds, the „− Reduce” ƒ symbol flashes. The “carrot” remains steady. ƒ The cooking time, when set, begins. ƒ Select low setting on the cooker hob, ➔...
-
Page 15: Heating To 60°C
Heating to 60°C The 60°C heating function is especially gentle and simple with the Navigenio at setting „A“ (this applies especially for sous vide cooking); see Chapter 9.3 on page 26 for further details. The function can be also used during manual operation on all types of cooker. In this case the cooker hob should always be set at a low level. - Page 16 Monitoring the temperature and adjusting the heat at the cooker hob as required: When the beep sounds and the ƒ “+ Increase” symbol flashes, the temperature is too low (red indicator below “60”). Select higher setting on the cooker hob, ➔...
-
Page 17: Audiotherm With Visiotherm S (Secuquick Softline) Manual
7. Audiotherm with Visiotherm S (Secuquick softline) manual Please also note the instructions in the „AMC Secuquick softline“ ƒ user manual. The required switch functions are carried out automatically only ƒ when the Audiotherm operates together with the Navigenio at setting “A”... - Page 18 Monitoring the temperature and adjusting the heat at the cooker hob soft as required: When the beep sounds and the ƒ “- Reduce symbol” flashes, the temperature is too high (red indicator in the second soft turbo or turbo window). Continue to reduce the setting on the ➔...
- Page 19 “P” setting Suitable for the especially energy saving ƒ preparation of dishes with short quick cooking time and depressurisation through slow cooling down for risotto, rice, pasta dishes and many deep frozen vegetables for example (see „Secuquick softline“ user manual). The “P”...
-
Page 20: Audiotherm With Visiotherm E (Easyquick) Steaming Manually
8. Audiotherm with Visiotherm E (EasyQuick) steaming manually Please also note the instructions in the „AMC EasyQuick“ user manual. ƒ The required switch functions are carried out automatically only when ƒ the Audiotherm operates together with the Navigenio at setting “A”... - Page 21 Monitoring the temperature and adjusting the heat at the cooker hob as required: When the beep sounds and the “- ƒ Reduce symbol” flashes, the temperature is too high (red indicator above the steam window). Further reduce the setting on the cooker ➔...
-
Page 22: Audiotherm With Navigenio At Setting „A
Handling the Audiotherm and the sequence of the cooking procedure is the same as that specified in Chapters 5, 6, 7 and 8, respectively in the “AMC Secuquick softline“ and „AMC EasyQuick” user manuals. Even so, you no longer need to control the heat levels manually since the Audiotherm automatically regulates the heat supply to the Navigenio. - Page 23 Put the Audiotherm in place and initialise ➔ and turn until, for example, the „turbo“ symbol for the „turbo quick cooking“ mode of cooking appears. As soon as the network connection is established: The operating indicator flashes blue. ƒ The “Network active” symbol appears in ƒ...
- Page 24 Controlled roasting without the addition of fat with the lid and the Visiotherm or EasyQuick and Visiotherm E Ready the Navigenio for use (plug in the cord). ➔ Place empty pot (with lid or EasyQuick ➔ closed) on the Navigenio. Set the control dial on Navigenio at setting ➔...
-
Page 25: Navigenio In Upside Down Function For Use As A Mini Oven (Timer Function For Cooking Au Gratin And For Baking)
Navigenio in upside down function for use as a mini oven (timer function for cooking au gratin and for baking) Ready the Navigenio for use (plug in the cord). ➔ Place Navigenio upside down on the pot. ➔ Switch on: Set the control dial on the Navigenio ➔... -
Page 26: Heating To 60°C
If the Audiotherm is not switched on within one minute after switching on the Navigenio, ƒ and no network connection is established: The Navigenio continues to heat in normal mode. ƒ The indicator lamp lights red. ƒ Switch off the Navigenio and repeat the procedure. ƒ... - Page 27 Ready the Navigenio for use (plug in the ➔ cord). Prepare food to be heated and place it on ➔ the Navigenio. Put on a lid with the Visiotherm. ➔ Set the control dial on Navigenio to setting ➔ “A”. Switch on the Audiotherm and set the ➔...
-
Page 28: Planned Cooking
When the cooking time has expired: A single, repetitive beep sounds. ƒ The Navigenio switches to the 60°C keep ƒ warm function. The Audiotherm flashes alternately “60°C” ƒ and “0:00”. Switch off beep. ➔ Use the keep warm function (active for ➔... - Page 29 Ready the Navigenio for use (plug in the cord). ➔ Prepare ingredients in the pot, place and ➔ close with the required lid. Place pot on the Navigenio. ➔ Set the control knob on Navigenio to setting ➔ “A”. Switch the Audiotherm on, set the required ➔...
-
Page 30: Care And Maintenance
10. Care and maintenance Never submerge the appliance in water and never place in the dishwasher. Cleaning The Audiotherm may only be wiped clean with a cloth moistened with tap water. Changing batteries Battery type: Lithium button cell, 20 mm in dia. 3 V (CR2032). -
Page 31: Wall Mount
11. Wall mount Mounting on the wall Please ensure that the surface on which you intend to attach the mount is even, clean, grease-free and dry. Remove the adhesive film on the back of the mount. ➔ Press mount firmly on the desired place. ➔... -
Page 32: Amc Customer Service
➔ 14. AMC customer service At AMC, customer service is an ongoing effort to satisfy the wishes and demands of our customers! Please do not hesitate to contact us if you have additional questions or suggestions. We shall be pleased to assist you! - Page 33 Recipes Audiotherm Plus...
- Page 34 Preparation time: approx. 10 minutes 3. Place pot on Navigenio, set it at “A”. Switch on Audiotherm Plus, Cooking time: approx. 1:30 hours enter approx. 1.30 hours cooking time in the Audiotherm, fit it on approx.
- Page 35 Quick Cut finely. 2 cloves of garlic 1 carrot 2. Place pot on Navigenio and set it at level 6. Switch on Audiotherm Plus, 2 stalks of celery fit it on Visiotherm and turn it until the roasting symbol appears.
- Page 36 24 cm. Place on Navigenio and set Navigenio at “A”. Switch on Sugar to taste Audiotherm Plus, enter approx. 15 minutes cooking time in the Audiotherm and as soon as “+” appears the time for delay (approx. Preparation time: approx. 15 minutes 30 minutes).
- Page 37 Preparation time: approx. 10 minutes 3. Place pot on Navigenio, set it at “A”. Switch on Audiotherm Plus, enter approx. 45 minutes cooking time in the Audiotherm, fit it Cooking time: approx. 45 minutes approx.
- Page 38 Secuquick softline. 750 ml vegetable stock 2 tomatoes 3. Place on Navigenio and set at “A”. Switch on Audiotherm Plus, enter approx. 1 spring onion 5 minutes cooking time (minus “adaption time”) in the Audiotherm and as 1/2 bunch of parsley soon as “+”...
- Page 39 Cooking time: approx. 10 minutes cover on top. Place on the Navigenio and set it at level 6. Switch on About 225 calories per serving Audiotherm Plus, fit it on Visiotherm and turn it until the roasting symbol appears. AMC Products: Pot 24 cm 2.5 l...
- Page 40 EasyQuick with sealing ring 24 cm. Olive oil 30 g roasted almond slivers 3. Place on Navigenio and set Navigenio at “A”. Switch on Audiotherm Plus, enter approx. 20 minutes cooking time in the Audiotherm and as soon Preparation time: approx. 10 minutes as “+”...
- Page 41 Tips and Tricks for Audiotherm Plus 1. Planned Cooking By using planned cooking function you can define, next to the cooking time itself, a time after which you wish the cooking process to be started. Planned cooking is available only by using Navigenio when set on “A”.
- Page 42 To ensure that your food is ready on time, please note that the cooking time according ➔ to the recipe does not start until the desired cooking area (vegetable, soft, turbo or steam area) has been reached. The required time to reach the cooking area can vary depending on the pot size, recipe and filling level.
- Page 43 Secuquick softline Dried Dried Dried Lentils beans chickpeas peas (except red lentils) (turbo) (turbo) (turbo) (soft) Planned Cooking time time 32 min. 30 min. 32 min. 4 min. 30 min. 28 min. 30 min. 3 min. 28 min. 26 min. 28 min.
- Page 44 By using planned cooking for cooking fresh or frozen vegetables and as well jacket potatoes, ƒ we recommend to use always the Softiera or Combi sieve insert for EasyQuick or normal AMC lid, respectively the Softiera insert for Secuquick softline. This guarantees that there really will be no...
- Page 45 The dish needs approx. 10 minutes to reach the perfect temperature of 60 °C that means: Navigenio has to start heating at 12:20 if “+“ appears in Audiotherm Plus add the time for delay of „4:20” 2. 60 °C – function 2.1. Heat-up With the Audiotherm Plus dishes can be heated up gently.
- Page 46 (in this case heat-up time) of approx. 2-5 minutes in the Audiotherm Plus to get an evenly warm meal – especially if the food is frozen. For frozen food it is ideal to use planned cooking: ƒ...
- Page 47 Commercially available sous-vide devices work with several different temperatures between approx. 50 and 100 °C. With the Audiotherm Plus, sous-vide cooking takes place in a simplified form at 60 °C. Therefore, please use our special AMC recipes.
- Page 48 AMC International Alfa Metalcraft Corporation AG Buonaserstrasse 30 6343 Rotkreuz Switzerland T: +41 41 - 799 52 22 info@amc.info www.amc.info AMC International AMC International amc_international...
