Siemens PXC Series Installation Instructions

Blue Ridge Technologies Driver
for PXC Modular
These installation instructions only cover the
connection of the Blue Ridge Technologies (formerly
known as Lumisys) Driver to the Blue Ridge
Technologies System. For hardware installation of
the PXC Modular, see PXC Modular Series
Installation and Quick Start (553-638).
Product Description
The Blue Ridge Technologies Driver enables
communication between the APOGEE ® Automation
System and the Blue Ridge Technologies system.
Product Numbers

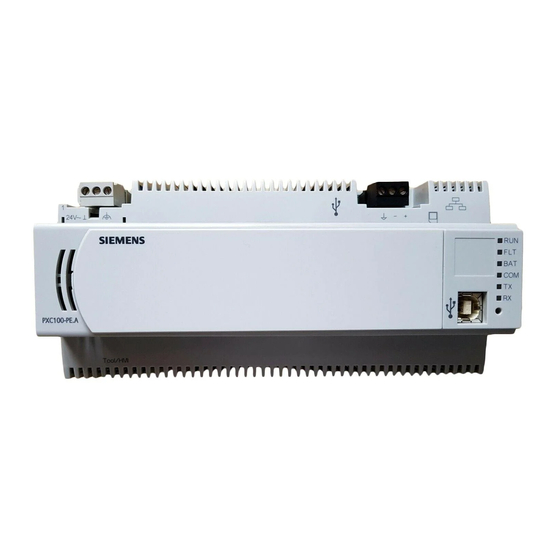

PXC00-PE96.A PXC Modular RS-485 or
Ethernet ALN, 96 FLN nodes
PXC100-PE96.A PXC Modular RS-485 or
Ethernet ALN, TX-I/O Support,
96 FLN nodes
PXX-485.3 Expansion Module, three RS-
485 FLN connections
LSM-INT-BLRIDGE License for Blue Ridge
Technologies PXC Modular
Driver
Warning/Caution Notations
WARNING:
CAUTION:
Item Number 565-003, Rev. BA
Personal injury/loss of life may
occur if you do not follow the
procedures as specified.
Equipment damage, or loss of
data may occur if you do not
follow the procedures as
specified.
Installation Instructions
Required Tools
•
Flat-blade screwdriver (1/8-inch blade
width).
•
Wire strippers.
•
Cabling and connectors. See the
Connecting the Blue Ridge Technologies
Driver to the Blue Ridge Technologies
System section.
Expected Installation Time
7 minutes
CAUTION:
Always wear an electro-static discharge
wrist strap and discharge accumulated static
before touching field panel components.
Prerequisites
•
Driver hardware is installed according to its
respective installation instructions.
•
FLN Termination blocks installed, if any.
Depending on the type of installation, other
prerequisites may have to be completed.
Connecting the Blue Ridge
Technologies Driver to the Blue
Ridge Technologies System
Follow these steps to connect the Blue Ridge
Technologies Driver to the Blue Ridge Technologies
System:
1. Make cables per diagram in Figure 1.
2. Connect cables per diagram in Figure 1.
Document No. 565-003
September 9, 2009
Page 1 of 2
